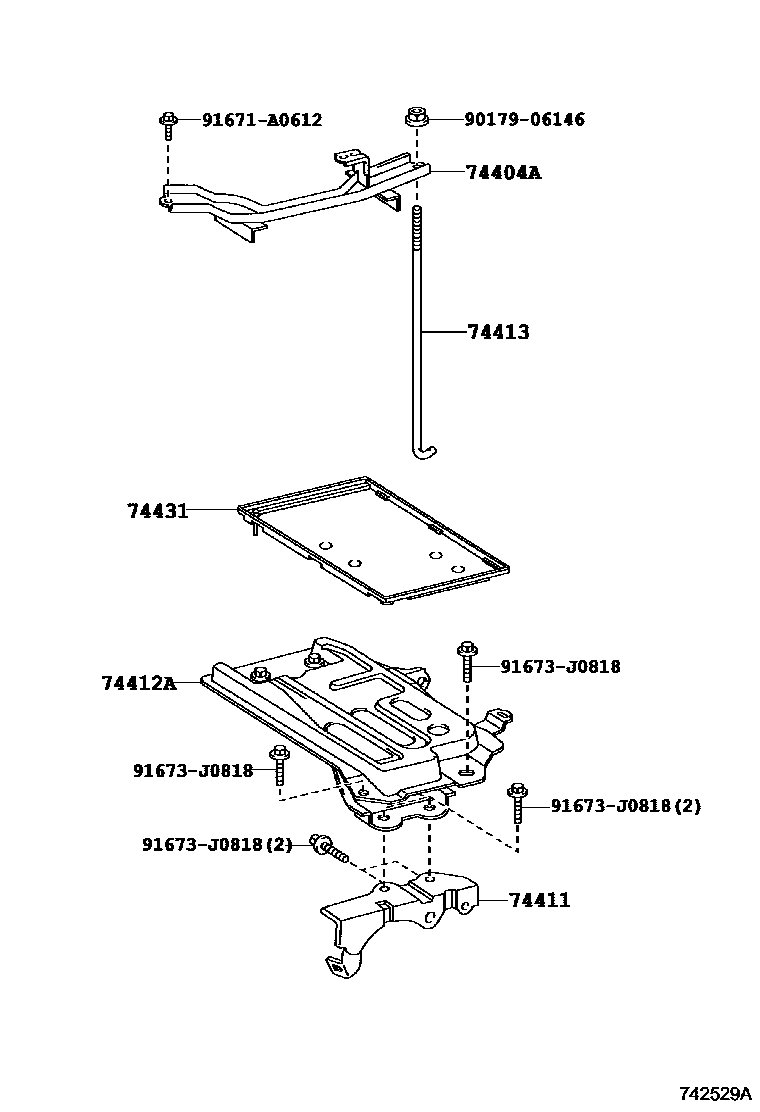

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-02150iADE150201006-201401

main74404-02170iZRE151201404-201407

main74404-02250supersedes 74404-02170iZRE15#,ZZE150..D,N200707-200902

FOG LAMP-WITH

main74404-02570iZRE151201407

74411CARRIER, BATTERY

main74401-02020iNDE150..6FS201006-201208

74412ACARRIER, BATTERY, NO.2

main74410-02040iADE150200903-201006

main74410-02050iZRE15#,ZZE150200707-200902

main74410-02060iNDE150200710-200902

main74412-02070iZRE151201404

74413BOLT, BATTERY CLAMP

main74451-30110iADE150200707-200903

74431TRAY, BATTERY

main74431-02190iADE150201006-201401

main74431-02210supersedes 74431-02230iZRE15#..N200902-201006

FRONT FOG LAMP-WITH

main74431-02220iNDE150200902-201006

main74431-02230iNRE150,ZRE152;ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN201006-201401

9017906146

main90179-06146

91671A0612

main91671-A0612

91673J0818

main91673-J0818

8 parts on this diagram · 2 diagrams in section
