SEAT BELT & CHILD RESTRAINT SEAT

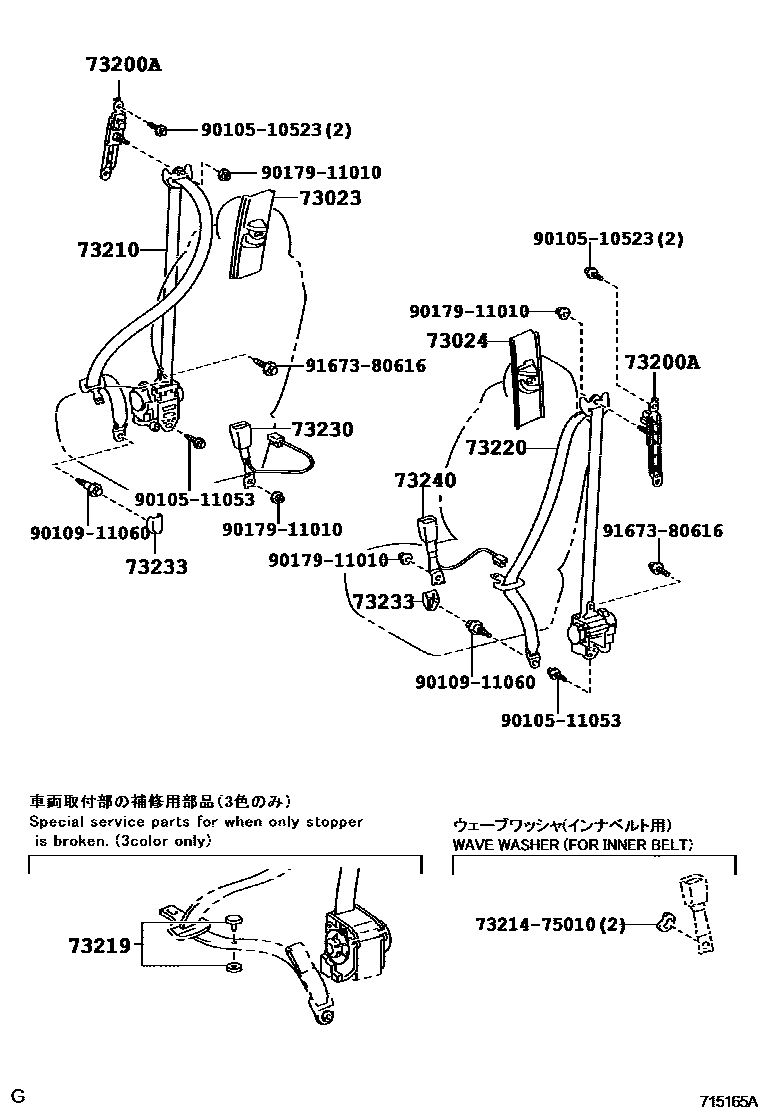

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33020-B2iADE150,NDE150,NRE150,ZRE15#200707-201404

LT.GRAY,TRIM1#

sub73023-33020

main73023-33020-E0iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

sub73023-33020

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33020-B2iZRE151200707-201404

LT.GRAY,TRIM1#

sub73024-33020

main73024-33020-E0iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

sub73024-33020

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02100iNDE150..6FS200707-201404

main73200-12070iZRE151201404

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02320-B0iADE150,NDE150,NRE150,ZRE15#200707-201006

DK.GRAY,TRIM1#

sub73210-02321

main73210-02320-B1iADE150,NDE150,NRE150,ZRE15#201006-201205

DK.GRAY,TRIM1#

sub73210-02321

main73210-02320-E0iADE150200707-201205

GREGE,TRIM4#

sub73210-02321

main73210-02321-B1iADE150,NDE150,NRE150,ZRE15#201206-201301

DK.GRAY,TRIM1#

sub73210-02322

main73210-02321-E0iADE150,NDE150,NRE150,ZRE15#..E,N201206-201301

GREGE,TRIM4#

sub73210-02322

main73210-02322-B1iADE150,NDE150,NRE150,ZRE15#201302-201404

DK.GRAY,TRIM1#

main73210-02322-C0iZRE151201404

BLACK,TRIM1#

main73210-02322-E0iADE150,NDE150,NRE150,ZRE15#..E,N201302-201401

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153200707-201404

BLACK

main73219-33020iNDE150,ZRE15#,ZZE150200707-201404

GRAY

main73219-33030iNDE150..6FS200707-201404

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02270-B0iNDE150,ZRE15#,ZZE150200707-201006

DK.GRAY,TRIM1#

sub73220-02271

main73220-02270-B1iADE150,NDE150,NRE150,ZRE15#201006-201205

DK.GRAY,TRIM1#

sub73220-02271

main73220-02270-E0iADE150200707-201205

GREGE,TRIM4#

sub73220-02271

main73220-02271-B1iADE150,NDE150,NRE150,ZRE15#201206-201301

DK.GRAY,TRIM1#

sub73220-02272

main73220-02271-E0iADE150,NDE150,NRE150,ZRE15#..E,N201206-201301

GREGE,TRIM4#

sub73220-02272

main73220-02272-B1iADE150,NDE150,NRE150,ZRE15#201302-201404

DK.GRAY,TRIM1#

main73220-02272-C0iZRE151201404

BLACK,TRIM1#

main73220-02272-E0iADE150,NDE150,NRE150,ZRE15#..E,N201302-201401

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02390-B0iZRE151..RHD..(5F,5FS);ADE150,ZRE152,ZZE150..RHD200707-201205

DK.GRAY,TRIM1#

sub73230-02391

main73230-02390-E0iADE150,NRE150,ZRE15#..RHD..(E,N)200707-201205

GREGE,TRIM4#

sub73230-02391

main73230-02391-B0iADE150,NRE150,ZRE15#..RHD201206-201404

DK.GRAY,TRIM1#

main73230-02391-E0iADE150,NRE150,ZRE15#..RHD..(E,N)201206-201401

GREGE,TRIM4#

main73230-02400-B0iADE150,ZRE152,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)200710-201205

DK.GRAY,TRIM1#

sub73230-02401

main73230-02400-E0iADE150,NDE150,NRE150,ZRE15#..LHD..N200710-201205

GREGE,TRIM4#

sub73230-02401

main73230-02401-B0iADE150,NDE150,NRE150,ZRE151,152..LHD201206-201404

DK.GRAY,TRIM1#

main73230-02401-E0iADE150,NDE150,NRE150,ZRE151,152..LHD..N201206-201401

GREGE,TRIM4#

main73230-02B20-C0iZRE151..SA201404

BLACK,TRIM1#

main73230-02B40-C0iZRE151..GEN201404

BLACK,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-12050-B0iADE150,NDE150,NRE150,ZRE15#200707-201404

DK.GRAY,TRIM1#

sub73233-60020

main73233-12050-E0iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

sub73233-60020

main73233-60020-C0iZRE151201404-201610

BLACK,TRIM1#

sub73233-60020

sub73233-35010

main73233-60020-C1iZRE151201610

BLACK,TRIM1#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02390-B0iADE150,NDE150,NRE150,ZRE15#..LHD200710-201205

DK.GRAY,TRIM1#

sub73230-02391

main73230-02390-E0iADE150,NDE150,NRE150,ZRE15#..LHD..N200710-201205

GREGE,TRIM4#

sub73230-02391

main73230-02391-B0iADE150,NDE150,NRE150,ZRE151,152..LHD201206-201404

DK.GRAY,TRIM1#

main73230-02391-E0iADE150,NDE150,NRE150,ZRE151,152..LHD..N201206-201401

GREGE,TRIM4#

main73230-02400-B0iADE150,NRE150,ZRE15#..RHD200707-201205

DK.GRAY,TRIM1#

sub73230-02401

main73230-02400-E0iADE150,NRE150,ZRE15#..RHD..(E,N)200707-201205

GREGE,TRIM4#

sub73230-02401

main73230-02401-B0iADE150,NRE150,ZRE15#..RHD201206-201404

DK.GRAY,TRIM1#

main73230-02401-E0iADE150,NRE150,ZRE15#..RHD..(E,N)201206-201401

GREGE,TRIM4#

main73230-02790-C0iZRE151..GEN201404

BLACK,TRIM1#

main73230-02B40-C0iZRE151..SA201404

BLACK,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911060

main90109-11060

9017911010

main90179-11010

9167380616

main91673-80616

15 parts on this diagram · 2 diagrams in section
