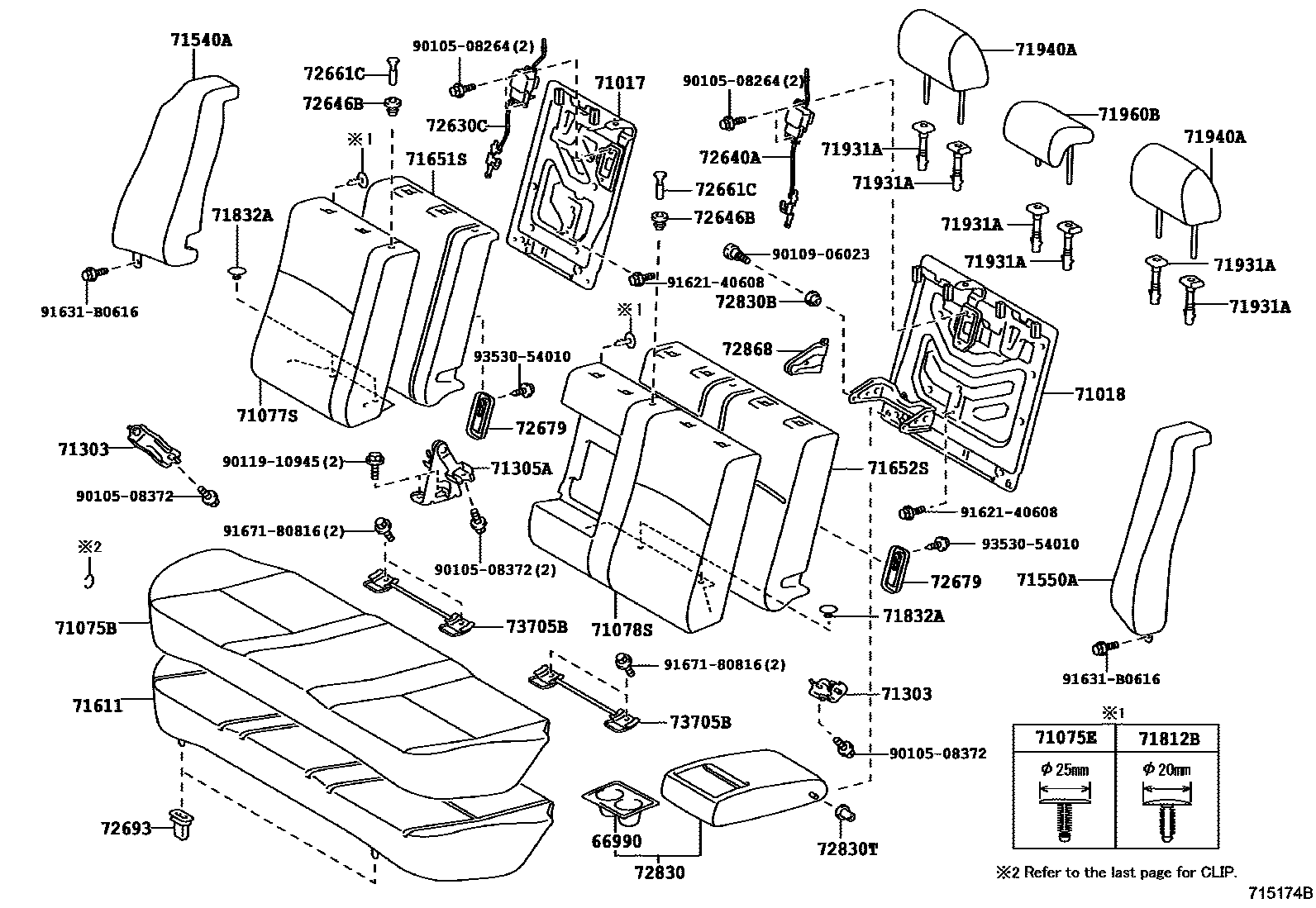

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1CLIP

66990HOLDER ASSY, CUP

main66991-02040-B0iADE150,NDE150,NRE150,ZRE15#200707-201404

DK.GRAY,TRIM1#

main66991-02040-E0iNDE150,ZRE15#,ZZE150..E,N200707-201401

GREGE,TRIM4#

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-02330iNDE150,ZRE15#,ZZE150200707-201404

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-02200iNDE150,ZRE15#,ZZE150200707-201404

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-02D50-B0iNDE150,ZRE15#,ZZE150..D200707-201006

DARK GRAY,TRIM1#

main71075-02D50-B2iNDE150,NRE150,ZRE151,152..D201006-201404

DARK GRAY,TRIM1#

main71075-02D60-B0iADE150,NDE150,NRE150,ZRE15#..N200707-201006

DARK GRAY,TRIM1#

main71075-02D60-E0iNDE150,ZRE15#,ZZE150..N200707-201006

GREGE,TRIM4#

main71075-02D70-B4iZRE152..E200707-201006

DK. GRAY,TRIM1#

main71075-02D70-B4iZRE152..E200707-201006

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#

main71075-02D70-B5iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#

main71075-02D70-B5iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

DK. GRAY,TRIM1#

main71075-02D70-E4iADE150,ZRE152..E200707-201006

GREGE,TRIM4#

main71075-02D70-E4iADE150,ZRE152..E200707-201006

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71075-02D70-E5iADE150,ZRE153..E201006-201401

GREGE,TRIM4#

main71075-02D70-E5iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71075-02L30-B2iADE150,NDE150,NRE150,ZRE15#..N201006-201401

DARK GRAY,TRIM1#

main71075-02L30-E2iADE150,NDE150,NRE150,ZRE15#..N201006-201401

GREGE,TRIM4#

main71075-02W90-C0iZRE151201404

BLACK,TRIM1#

71075ECLIP(FOR REAR SEAT)

main90467-07080-C0iNDE150,ZRE15#,ZZE150200707-201404

BLACK

sub90467-07080

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-02F20-B2iADE150,NDE150,NRE150,ZRE15#..N200707-201003

DARK GRAY,TRIM1#

main71077-02F20-E3iNDE150,ZRE15#,ZZE150..N200707-201003

GREGE,TRIM4#

main71077-02F21-B2iADE150,NDE150,NRE150,ZRE15#..N201003-201006

DARK GRAY,TRIM1#

main71077-02F21-E3iADE150,NDE150,NRE150,ZRE15#..N201003-201006

GREGE,TRIM4#

main71077-02F30-B5iADE150..E200707-201003

DK. GRAY,TRIM1#

main71077-02F30-B5iADE150..E200707-201003

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#

main71077-02F30-E5iZRE151..RHD..N;ADE150,ZRE152..N200707-201003

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71077-02F30-E5iZRE152..E200707-201003

GREGE,TRIM4#

main71077-02F31-B5iZRE151..RHD..N;ADE150,ZRE152..N201003-201006

DK. GRAY,TRIM1#

main71077-02F31-B5iZRE151..RHD..N;ADE150,ZRE152..N201003-201006

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#

main71077-02F31-B6iADE150,ZRE153..E201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71077-02F31-B6iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

DK.GRAY,TRIM1#

main71077-02F31-E5iZRE151..RHD..N;ADE150,ZRE152..N201003-201006

GREGE,TRIM4#

main71077-02F31-E5iZRE151..RHD..N;ADE150,ZRE152..N201003-201006

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71077-02F31-E6iADE150,ZRE153..E201006-201401

GREGE,TRIM4#

main71077-02F31-E6iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71077-02F40-B0iNDE150,NRE150,ZRE15#..D200707-201003

DARK GRAY,TRIM1#

main71077-02F41-B0iNDE150,NRE150,ZRE15#..D201003-201006

DARK GRAY,TRIM1#

main71077-02F41-B2iNDE150,NRE150,ZRE151,152..D201006-201404

DARK GRAY,TRIM1#

main71077-02P00-B2iADE150,NDE150,NRE150,ZRE15#..N201006-201401

DARK GRAY,TRIM1#

main71077-02P00-E2iADE150,NDE150,NRE150,ZRE15#..N201006-201401

GREGE,TRIM4#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-02B40-B2iADE150,NDE150,NRE150,ZRE15#..N200707-201003

DARK GRAY,TRIM1#

main71078-02B40-E3iADE150,NDE150,NRE150,ZRE15#..N200707-201003

GREGE,TRIM4#

main71078-02B41-B2iADE150,NDE150,NRE150,ZRE15#..N201003-201006

DARK GRAY,TRIM1#

main71078-02B41-E3iADE150,NDE150,NRE150,ZRE15#..N201003-201006

GREGE,TRIM4#

main71078-02B50-B5iZRE152..E200707-201003

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#

main71078-02B50-B5iZRE152..E200707-201003

DK. GRAY,TRIM1#

main71078-02B50-E5iADE150..N200707-201003

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71078-02B50-E5iADE150..N200707-201003

GREGE,TRIM4#

main71078-02B51-B5iADE150,ZRE152..E201003-201006

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#

main71078-02B51-B5iZRE151..RHD..N;ADE150,ZRE152..N201003-201006

DK. GRAY,TRIM1#

main71078-02B51-B6iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71078-02B51-B6iADE150,ZRE153..E201006-201401

DK.GRAY,TRIM1#

main71078-02B51-E5iADE150,ZRE152..E201003-201006

GREGE,TRIM4#

main71078-02B51-E5iADE150,ZRE152..E201003-201006

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71078-02B51-E6iADE150,ZRE153..E201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71078-02B51-E6iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

GREGE,TRIM4#

main71078-02C80-B1iNDE150,NRE150,ZRE15#..D200707-201003

DARK GRAY,TRIM1#

main71078-02C81-B1iNDE150,NRE150,ZRE15#..D201003-201006

DARK GRAY,TRIM1#

main71078-02C81-B2iNDE150,NRE150,ZRE151,152..D201006-201404

DARK GRAY,TRIM1#

main71078-02G20-B2iADE150,NDE150,NRE150,ZRE15#..N201006-201401

DARK GRAY,TRIM1#

main71078-02G20-E2iADE150,NDE150,NRE150,ZRE15#..N201006-201401

GREGE,TRIM4#

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-02110iADE150,NDE150,NRE150,ZRE15#200707-201404

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-02110iNDE150,ZRE15#,ZZE150200707-201404

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-02480-B3iADE150,NDE150,NRE150,ZRE15#..N200707-201006

DK.GRAY,TRIM1#

main71540-02480-B6iADE150,NDE150,NRE150,ZRE15#..N201006-201401

DK.GRAY,TRIM1#

main71540-02480-E4iADE150..N200707-201006

GREGE,TRIM4#

main71540-02480-E7iADE150,NDE150,NRE150,ZRE15#..N201006-201401

GREGE,TRIM4#

main71540-02490-B5iADE150,ZRE152..E200707-201006

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71540-02490-B5iADE150..E200707-201006

DK.GRAY,TRIM1#

main71540-02490-B6iADE150,ZRE153..E201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71540-02490-B6iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

DK.GRAY,TRIM1#

main71540-02490-E5iADE150..E200707-201006

GREGE,TRIM4#

main71540-02490-E5iZRE152..E200707-201006

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71540-02490-E6iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71540-02490-E6iADE150,ZRE153..E201006-201401

GREGE,TRIM4#

main71540-02560-B1iNDE150,NRE150,ZRE15#..D200707-201003

DK.GRAY,TRIM1#

main71540-02561-B0iNDE150,NRE150,ZRE15#..D201003-201006

DK.GRAY,TRIM1#

main71540-02561-B1iNDE150,NRE150,ZRE151,152..D201006-201404

DK.GRAY,TRIM1#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-02450-B3iADE150..N200707-201006

DK.GRAY,TRIM1#

main71550-02450-B6iADE150,NDE150,NRE150,ZRE15#..N201006-201401

DK.GRAY,TRIM1#

main71550-02450-E4iADE150,NDE150,NRE150,ZRE15#..N200707-201006

GREGE,TRIM4#

main71550-02450-E7iADE150,NDE150,NRE150,ZRE15#..N201006-201401

GREGE,TRIM4#

main71550-02460-B5iADE150..N200707-201006

DK.GRAY,TRIM1#

main71550-02460-B5iADE150,ZRE152..E200707-201006

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71550-02460-B6iADE150,ZRE153..E201006-201401

DK.GRAY,TRIM1#

main71550-02460-B6iADE150,ZRE153..E201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71550-02460-E5iADE150..N200707-201006

GREGE,TRIM4#

main71550-02460-E5iADE150..N200707-201006

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71550-02460-E6iADE150,ZRE153..E201006-201401

GREGE,TRIM4#

main71550-02460-E6iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71550-02540-B1iNDE150,NRE150,ZRE15#..D200707-201003

DK.GRAY,TRIM1#

main71550-02541-B0iNDE150,NRE150,ZRE15#..D201003-201006

DK.GRAY,TRIM1#

main71550-02541-B1iNDE150,NRE150,ZRE151,152..D201006-201404

DK.GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71503-02080iNDE150,ZRE15#,ZZE150200707-201404

main71503-02580iZRE151201404

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-02350iZRE151..D..SA;ZRE151..LHD..D200707-201404

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-02330iADE150200707-201404

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90467-05164-C0iNDE150,ZRE15#,ZZE150200707-201404

BLACK

sub90467-05164

71832ACLIP, REAR SEATBACK CARPET OR MAT

main90467-09156-C0iNDE150,ZRE15#,ZZE150200707-201404

BLACK

71931ASUPPORT, REAR SEAT HEADREST

main71956-47010-B2iADE150,NDE150,NRE150,ZRE15#200707-201404

W/O(LOCK),DK.GRAY,TRIM1#

sub71956-02040

sub71956-47010

main71956-47010-E2iNDE150,ZRE15#,ZZE150..E,N200707-201401

W/O(LOCK),GREGE,TRIM4#

sub71956-02040

sub71956-47010

main71970-47010-B2iADE150,NDE150,NRE150,ZRE15#200707-201404

W(LOCK),DK.GRAY,TRIM1#

sub71970-02040

sub71970-47010

main71970-47010-E2iADE150200707-201401

W(LOCK),GREGE,TRIM4#

sub71970-02040

sub71970-47010

71940AHEADREST ASSY, REAR SEAT

main71940-02880-B0iNDE150,ZRE15#,ZZE150..D200707-201006

DARK GRAY,TRIM1#

main71940-02880-B2iNDE150,NRE150,ZRE151,152..D201006-201404

DARK GRAY,TRIM1#

main71940-02890-B0iNDE150,ZRE15#,ZZE150..N200707-201006

DARK GRAY,TRIM1#

main71940-02890-B3iADE150,NDE150,NRE150,ZRE15#..N201006-201401

DARK GRAY,TRIM1#

main71940-02890-E0iADE150..N200707-201006

GREDE,TRIM4#

main71940-02890-E2iADE150,NDE150,NRE150,ZRE15#..N201006-201401

GREDE,TRIM4#

main71940-02A00-B4iADE150..N200707-201006

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#

main71940-02A00-B4iZRE152..N;ZRE151..RHD..N200707-201006

DK. GRAY,TRIM1#

main71940-02A00-B6iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#

main71940-02A00-B6iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

DK. GRAY,TRIM1#

main71940-02A00-E4iZRE151..RHD..N;ADE150,ZRE152..N200707-201006

GREGE,TRIM4#

main71940-02A00-E4iZRE152..N;ZRE151..RHD..N200707-201006

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71940-02A00-E5iADE150,ZRE153..E201006-201401

GREGE,TRIM4#

main71940-02A00-E5iADE150,ZRE153..E201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-02450-B0iNDE150,NRE150,ZRE15#..D200707-201006

DARK GRAY,TRIM1#

main71960-02450-B3iNDE150,NRE150,ZRE151,152..D201006-201404

DARK GRAY,TRIM1#

main71960-02480-B0iADE150..N200707-201006

DARK GRAY,TRIM1#

main71960-02480-B3iADE150,NDE150,NRE150,ZRE15#..N201006-201401

DARK GRAY,TRIM1#

main71960-02480-E0iADE150,NDE150,NRE150,ZRE15#..N200707-201006

GREDE,TRIM4#

main71960-02480-E2iADE150,NDE150,NRE150,ZRE15#..N201006-201401

GREDE,TRIM4#

main71960-02490-B4iADE150,ZRE152..E200707-201006

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#

main71960-02490-B4iZRE152..E200707-201006

DK. GRAY,TRIM1#

main71960-02490-B6iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

DK.GRAY,TRIM1#

main71960-02490-B6iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71960-02490-E4iZRE151..RHD..N;ADE150,ZRE152..N200707-201006

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71960-02490-E4iZRE152..E200707-201006

GREGE,TRIM4#

main71960-02490-E5iADE150,ZRE153..E201006-201401

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71960-02490-E5iZRE151..RHD..N;ADE150,ZRE152,153..N201006-201401

GREGE,TRIM4#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-12350iNDE150..6FS200707-201404

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-12320iNDE150..6F200707-201404

72646BGROMMET, REAR SEATBACK STOP BUTTON

main72646-02060-B0iADE150,NDE150,NRE150,ZRE15#200707-201404

DK.GRAY,TRIM1#

main72646-02060-E0iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-32030-B3iNDE150,ZRE15#,ZZE150200707-201404

DK.GRAY,TRIM1#

sub72661-32030

main72661-32030-E2iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

sub72661-32030

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-02020-B0iNDE150,ZRE15#,ZZE150..D200707-201404

DK.GRAY,TRIM1#

main72679-02020-B0iNDE150,ZRE15#,ZZE150..D200707-201401

DK.GRAY,TRIM1#,4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iNDE150,ZRE15#,ZZE150200707-201404

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-02470-B0iNDE150,ZRE15#,ZZE150..N200707-201401

DARK GRAY,TRIM1#

main72830-02470-E0iADE150,NDE150,NRE150,ZRE15#..N200707-201401

GREDE,TRIM4#

main72830-02480-B4iADE150,ZRE152..E200707-201401

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#

main72830-02480-B4iZRE151..RHD..N;ADE150,ZRE152..N200707-201401

DK. GRAY,TRIM1#

main72830-02480-E4iZRE151..RHD..N;ADE150,ZRE152,153..N200707-201401

GREGE,TRIM4#

main72830-02480-E4iZRE152..N;ZRE151..RHD..N200707-201401

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main72830-02540-B0iNDE150,NRE150,ZRE151,152..D200707-201404

DARK GRAY,TRIM1#

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main90386-08077iNDE150..6FS200707-201404

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main90386-06011iADE150,NDE150,NRE150,ZRE15#200707-201404

72868COVER, CENTER ARMREST HINGE, RH

main72868-02070-B0iADE150,NDE150,NRE150,ZRE15#200707-201404

DK.GRAY,TRIM1#

main72868-02070-E0iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

73705BBRACKET SUB-ASSY, CROSS ANCHOR

main73705-12070iNDE150..6FS200707-201404

9010508264

main90105-08264

9010508372

main90105-08372

9010906023

main90109-06023

9011910945

main90119-10945

9162140608

main91621-40608

91631B0616

main91631-B0616

9167180816

main91671-80816

9353054010

main93530-54010

38 parts on this diagram · 3 diagrams in section
