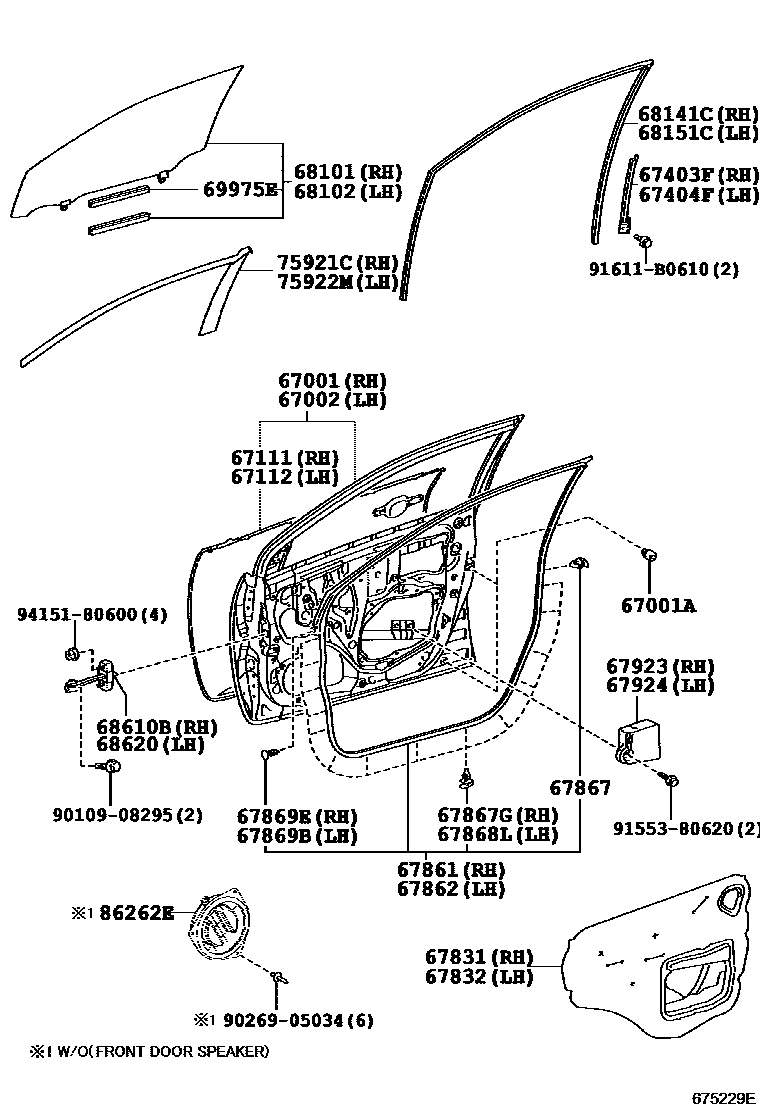

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02280iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153201006-201401

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iADE150,NDE150,ZRE15#,ZZE150200707-200806

main90541-09143×4iNDE150..6F201006-201306

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02280iZRE151201404

67111PANEL, FRONT DOOR, OUTER RH

main67111-02150iADE150,NDE150,NRE150,ZRE15#201006-201404

67112PANEL, FRONT DOOR, OUTER LH

main67112-02150iNDE150..6F201006-201306

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12260iADE150,NDE150,NRE150,ZRE15#200902-201006

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12250iNDE150..6F201006-201306

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02210iNDE150,ZRE15#,ZZE150200707-200902

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02210iNDE150,ZRE15#,ZZE150200707-200902

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02190iNDE150,ZRE15#,ZZE150200707-200902

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02190iNDE150,ZRE15#,ZZE150200707-200902

67867CLIP, DOOR WEATHERSTRIP

main90467-04034×2iNDE150,ZRE15#,ZZE150200707-200902

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×14iNDE150,ZRE15#,ZZE150200707-200902

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×14iNDE150,ZRE15#,ZZE150200707-200902

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iNDE150,ZRE15#,ZZE150200707-200902

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iNDE150,ZRE15#,ZZE150200707-200902

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-12040iNDE150,ZRE15#,ZZE150200707-200902

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-12040iNDE150,ZRE15#,ZZE150200707-200902

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02250iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

*TEM,T=3.5,GREEN

main68101-02251iADE150,NDE150,NRE150,ZRE15#201204-201404

*TEM,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02250iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

*TEM,T=3.5,GREEN

main68102-02251iADE150,NDE150,NRE150,ZRE15#201204-201404

*TEM,T=3.5,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-02220iNDE150,ZRE15#,ZZE150200707-200902

68151CRUN, FRONT DOOR GLASS, LH

main68151-02200iNDE150,ZRE15#,ZZE150200707-200902

68610BCHECK ASSY, FRONT DOOR, RH

main68610-02130iNDE150,ZRE15#,ZZE150200707-200902

main68610-02131iADE150,NDE150,NRE150,ZRE15#201004-201006

68620CHECK ASSY, FRONT DOOR, LH

main68610-02130iNDE150,ZRE15#,ZZE150200707-200902

main68610-02131iADE150,NDE150,NRE150,ZRE15#201004-201006

69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1

main69975-16020×2iNDE150,ZRE15#,ZZE150200707-200902

75921CTAPE, BLACK OUT, NO.1 RH

main75921-02090iNDE150,ZRE15#,ZZE150..E,N200707-200902

75922MTAPE, BLACK OUT, NO.1 LH

main75922-02090iNDE150,ZRE15#,ZZE150..E,N200707-200902

86262ECOVER, SPEAKER, FRONT

main86262-02010×2iZRE151..SA201404

9010908295

main90109-08295

9026905034

main90269-05034

9155380620

main91553-80620

91611B0610

main91611-B0610

9415180600

main94151-80600

33 parts on this diagram · 2 diagrams in section
