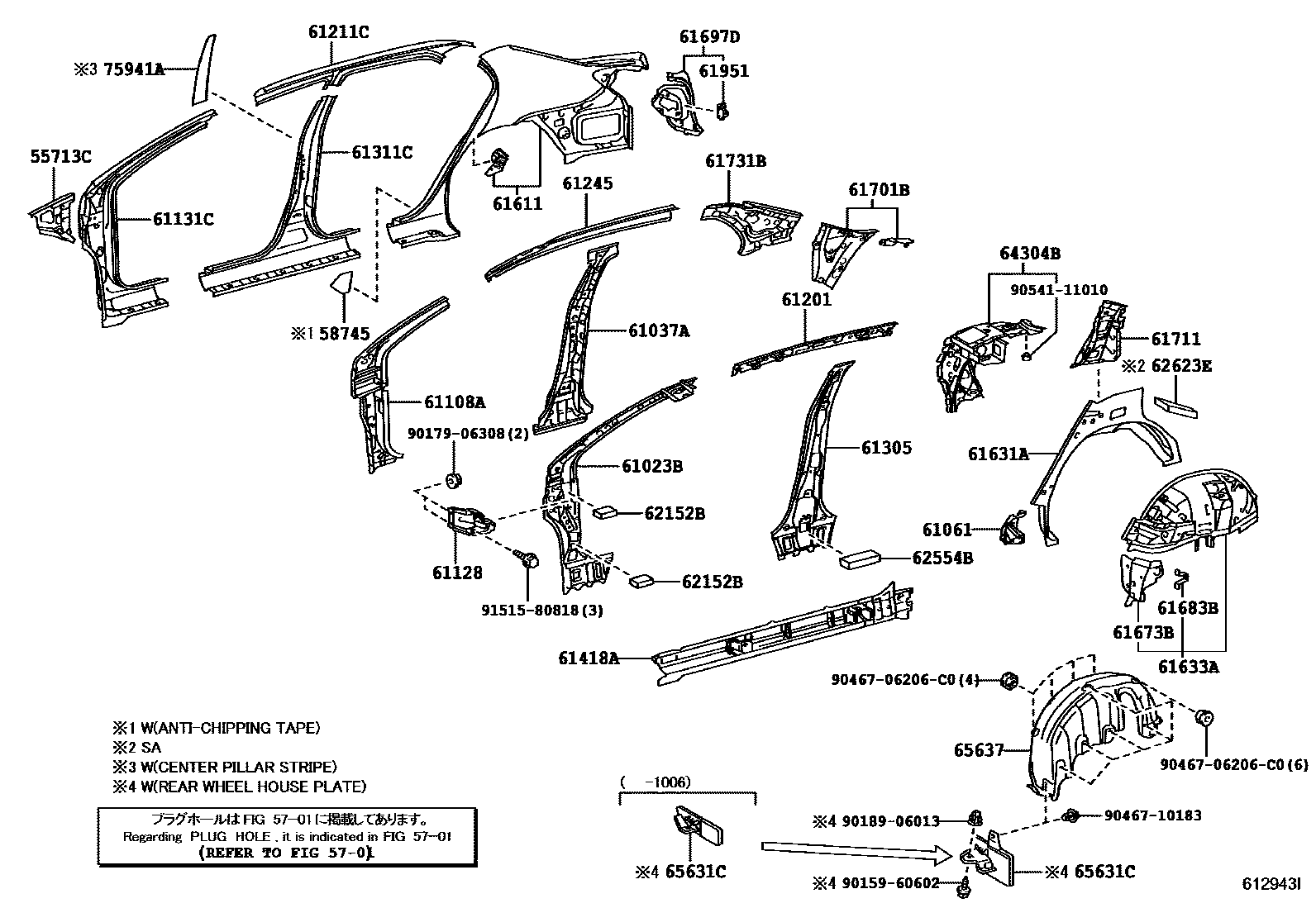

SIDE MEMBER

0001 1RH SIDE 0002 1LH SIDE

55713CPANEL, COWL TOP SIDE, RH

main55713-12130iNDE150,ZRE15#,ZZE150200707-200902

5701

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58741-02120iZRE151201404

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-02260iZRE151201404

main61023-12370iADE150,NDE150,ZRE15#,ZZE150200707-200812

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-12310iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153201006-201401

61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH

main61061-12010iNDE150,ZRE15#,ZZE150200707-200902

main61615-12010iADE150,NDE150,NRE150,ZRE15#200911-201006

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-02170iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153201006-201401

main61108-12260iADE150,NDE150,ZRE15#,ZZE150200707-200811

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61103-12230iZRE151..D..SA;ZRE151..LHD..D201006-201404

61131CPILLAR, FRONT BODY, OUTER RH

main61131-02200iADE150,NDE150,NRE150,ZRE15#200902-201006

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-02160iZRE151201404

main61201-12210iADE150200707-200903

61211CRAIL, ROOF SIDE, RH

main61211-02130iADE150200707-200903

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-12080iZRE151..D..SA;ZRE151..LHD..D201006-201404

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-02090iNDE150..6F201006-201306

main61305-12150iADE150200707-200903

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02160iADE150,NDE150,NRE150,ZRE15#200902-201006

61418AREINFORCEMENT, ROCKER PANEL, RH

main61403-12070iNDE150,ZRE15#,ZZE150200707-200902

main61403-12071iNDE150..6FS201104-201208

61611PANEL, QUARTER, RH

main61601-02220iNDE150,ZRE15#,ZZE150200707-200902

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-02090iNDE150,ZRE15#,ZZE150200707-200902

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-02948iNDE150,ZRE15#,ZZE150200707-200902

main61607-02957iZRE151201404

61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH

main61673-12040iNDE150,ZRE15#,ZZE150200707-200902

61683BBRACKET, REAR WHEEL OPENING, NO.1 RH

main61683-12050iNDE150,ZRE15#,ZZE150200707-200902

61697DHOUSING, QUARTER PANEL END, RH

main61697-02908iNDE150,ZRE15#,ZZE150200707-200902

61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH

main61701-02020iNDE150,ZRE15#,ZZE150200707-200902

61711PANEL, ROOF SIDE, OUTER RH

main61711-02030iNDE150,ZRE15#,ZZE150200707-200902

61731BPANEL, ROOF SIDE, INNER RH

main61731-02160iNDE150,ZRE15#,ZZE150200707-200902

61951BRACKET, SIDE TRIM, RH

main61951-12010iNDE150,ZRE15#,ZZE150200707-200902

62152BPAD, COWL SIDE SILENCER, NO.2

main62152-02030×4iNDE150,ZRE15#,ZZE150200707-200902

62554BPAD, PILLAR, NO.4

main62554-02170×2iNDE150,ZRE15#,ZZE150200707-200902

62623EPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-02030×2iZRE15#,ZZE150..SA200707-200902

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-02071iADE150,NDE150,ZRE15#,ZZE150200707-200803

main64304-02072iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200804-200903

main64304-02260iZRE151201404

65631CPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-02100iZRE15#,ZZE150200707-200902

main65631-02180iADE150,NDE150,NRE150,ZRE15#201006-201404

65637LINER, REAR WHEEL HOUSE, RH

main65637-02050iNDE150,ZRE15#,ZZE150200707-200902

75941ASTRIPE, CENTER PILLAR, RH

main75941-02060iNDE150,ZRE15#,ZZE150..E,N200707-200902

9015960602

main90159-60602

9017906308

main90179-06308

9018906013

main90189-06013

9046706206C0

main90467-06206C0

9046710183

main90467-10183

9054111010

main90541-11010

9151580818

main91515-80818

39 parts on this diagram · 2 diagrams in section
