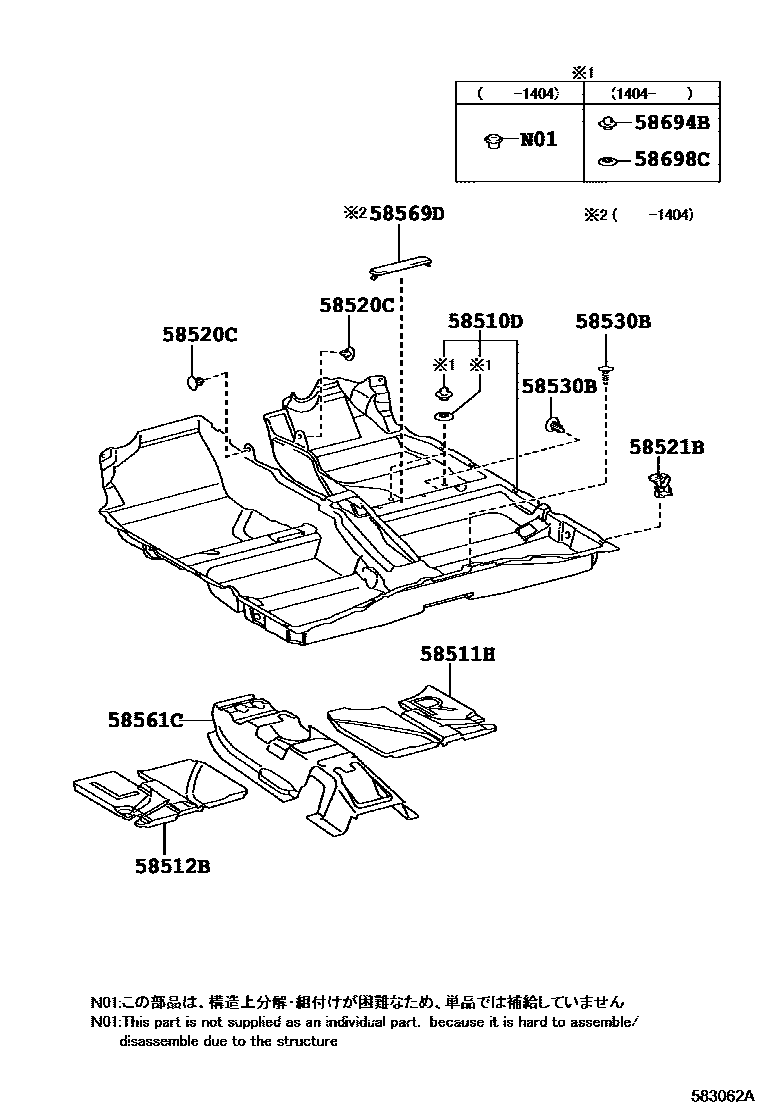

MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-02A50-B1iADE150,NDE150,NRE150,ZRE151,152..LHD200710-201404

DK. GREY,TRIM1#

main58510-02A50-E0iADE150..GEN200710-201401

GREGE,TRIM4#

main58510-02A51-C2iZRE151..GEN201404

BLACK,TRIM1#

main58510-02A70-B1iADE150..SA200707-201404

DK. GREY,TRIM1#

main58510-02A70-E0iZRE15#,ZZE150..RHD..(E,N)200707-201401

GREGE,TRIM4#

main58510-02A71-C2iZRE151..SA201404

BLACK,TRIM1#

58511HMAT, FLOOR, FRONT RH

main58512-02040iNDE150,ZRE15#,ZZE150200707-201404

58512BMAT, FLOOR, FRONT LH

main58511-02050iNDE150,ZRE15#,ZZE150200707-201404

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2iNDE150,ZRE15#,ZZE150200707-201404

DK.GRAY

sub90467-05164¥110

58521BHOOK, FLOOR CARPET

main58521-02060iNDE150,ZRE15#,ZZE150200707-201404

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

DK.GRAY,TRIM1#,4#

sub90467-07049¥90

main90467-07049-B7iNDE150,ZRE15#,ZZE150..D200707-201404

DK.GRAY,TRIM1#

sub90467-07049¥90

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02130iNDE150,ZRE15#,ZZE150200707-201404

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02010-B0iNDE150,ZRE15#,ZZE150..D200707-201404

DK.GRAY,TRIM1#

main58569-02010-B0iNDE150,ZRE15#,ZZE150..D200707-201401

DK.GRAY,TRIM1#,4#

58694BPLATE, MAT SET, UPPER

main58694-76010iZRE151¥200201404

58698CPLATE, MAT SET, LOWER

main58698-76010iZRE151¥190201404

10 parts on this diagram · 2 diagrams in section
