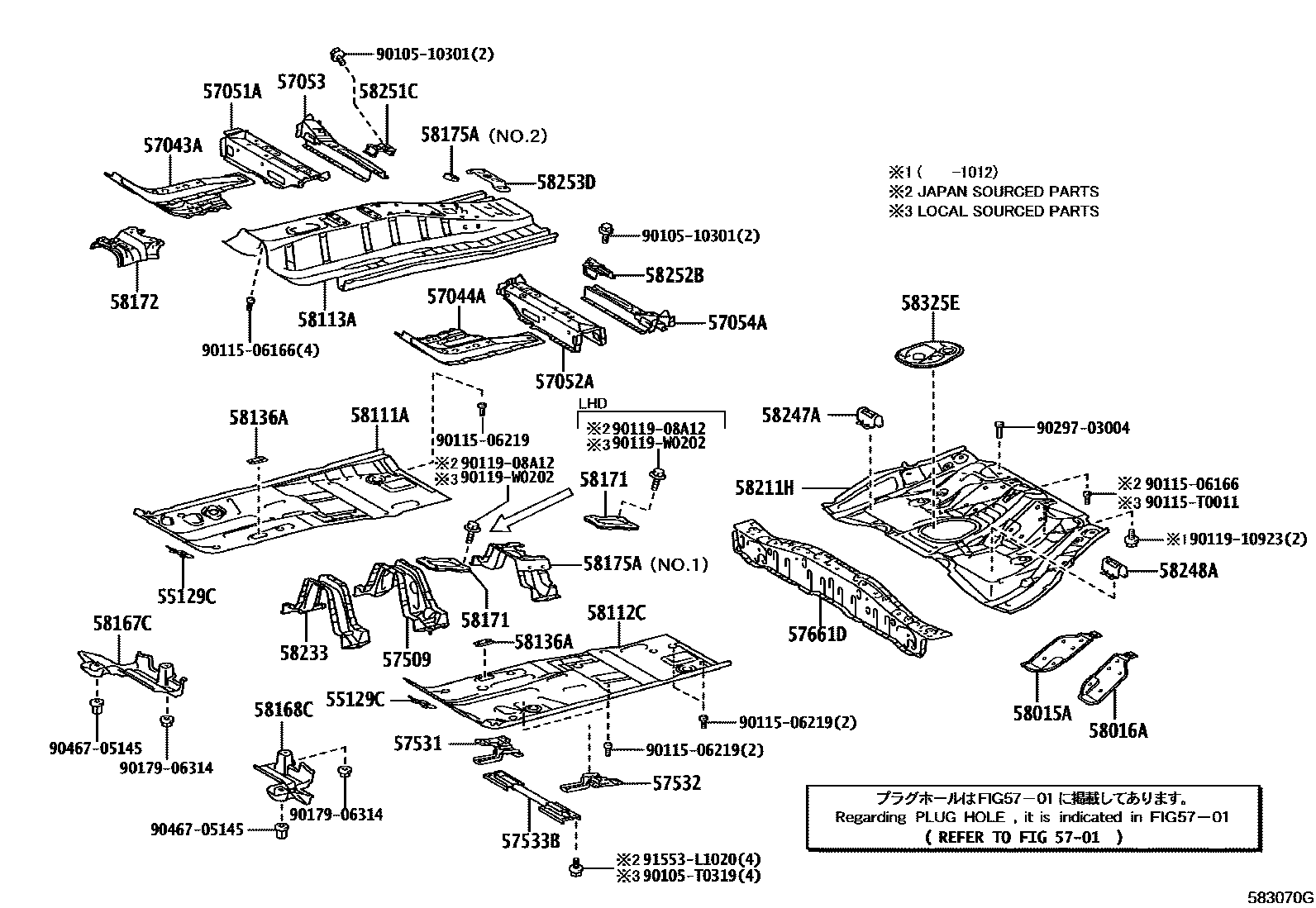

FLOOR PAN & LOWER BACK PANEL

0001 1FRONT FLOOR PANEL 0002 1REAR FLOOR PANEL 0004 1REAR FLOOR PANEL

55129CCOVER, DASH PANEL HOLE

main55129-12040iADE150,NDE150,NRE150,ZRE15#¥400200707-201404

RH

main55139-12050iZRE151¥400200707-201404

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-12020iZRE151¥9,100200707-201404

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-12020iNDE150,ZRE15#,ZZE150¥9,100200707-201404

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02050iNDE150,ZRE15#,ZZE150200707-201404

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02040iNDE150..6F200707-201404

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02050iNDE150,ZRE15#,ZZE150200707-201404

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02030iNDE150,ZRE15#,ZZE150200707-201404

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12060iADE150,NDE150,ZRE15#,ZZE150¥6,500200707-200802

sub57509-12061¥6,500

main57509-12061iNDE150,ZRE15#,ZZE150¥6,500200803-201010

main58161-12231iNDE150..6FS¥3,870201010-201404

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-12010iNDE150,ZRE15#,ZZE150¥1,460200707-201404

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-12010iNDE150,ZRE15#,ZZE150¥1,460200707-201404

57533BBRACE, FRONT FLOOR, CENTER

main57501-02040iZRE151201810

(L)

main57501-12020iNDE150..6FS¥4,540200707-201810

main57501-12020iZRE151¥4,540201810

(J)

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-02100iZRE151200707-201503

main57407-02101iZRE151201503

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12091iNDE150,ZRE15#,ZZE150¥3,920200707-200903

sub58015-47041¥4,270

main58015-47041iADE150,NDE150,NRE150,ZRE15#¥4,270200903-201404

sub58015-47042¥2,960

main58015-47042iZRE151¥2,960201404

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12061iNDE150,ZRE15#,ZZE150¥3,920200707-200903

sub58016-47031¥3,040

main58016-47031iADE150,NDE150,NRE150,ZRE15#¥3,040200903-201404

58111APAN, FRONT FLOOR, RH

main58111-02919iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153200707-201404

58112CPAN, FRONT FLOOR, LH

main58112-02903iADE150,NDE150,NRE150,ZRE15#200707-201404

58113APANEL, FRONT FLOOR, CENTER

main58113-02902iZRE151200707-201404

main58113-02903iNDE150..6FS200707-201208

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12040iNDE150..6FS¥220200707-201404

58167CCOVER, FRONT FLOOR, CENTER RH

main58167-02030iNDE150,ZRE15#,ZZE150200707-201404

58168CCOVER, FRONT FLOOR, CENTER LH

main58168-02030iNDE150,ZRE15#,ZZE150200707-201404

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-02080iZRE151..D..SA;ZRE151..LHD..D200707-201404

58172BRACKET, COMPUTER MOUNTING, NO.3

main58173-12020iADE150,NDE150,NRE150,ZRE15#¥2,530200707-201404

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main57805-12150iADE150,NDE150,NRE150,ZRE15#¥6,700200707-201207

NO.1:REFER ILLUST.

sub57805-12151¥4,540

main57805-12151iNDE150¥4,540201208-201404

NO.1:REFER ILLUST.

main58176-12020iNDE150..6F¥270200707-201404

NO.2:REFER ILLUST.

58211HPAN, CENTER FLOOR

main58211-02909iZRE151..D..SA;ZRE151..LHD..D200707-201404

main58211-02913iZRE151201404

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-12070iNDE150,ZRE15#,ZZE150¥3,670200707-201404

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-12090iNDE150,ZRE15#,ZZE150¥900200707-201404

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-12090iNDE150,ZRE15#,ZZE150¥900200707-201404

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-12040iNDE150,ZRE15#,ZZE150¥1,450200707-201404

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-12040iNDE150,ZRE15#,ZZE150¥1,430200707-201404

58253DBRACKET, PARKING BRAKE CABLE

main58253-12060iNDE150,ZRE15#,ZZE150¥770200707-201404

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12130iNDE150,ZRE15#,ZZE150¥1,600200707-201404

9010510301

main90105-10301¥110

90105T0319

main90105-T0319

9011506166

main90115-06166¥90

9011506219

main90115-06219¥80

90115T0011

main90115-T0011

9011908A12

main90119-08A12¥80

9011910923

main90119-10923¥110

90119W0202

main90119-W0202

9017906314

main90179-06314¥70

9029703004

main90297-03004¥50

9046705145

main90467-05145¥100

91553L1020

main91553-L1020¥110

44 parts on this diagram · 3 diagrams in section
