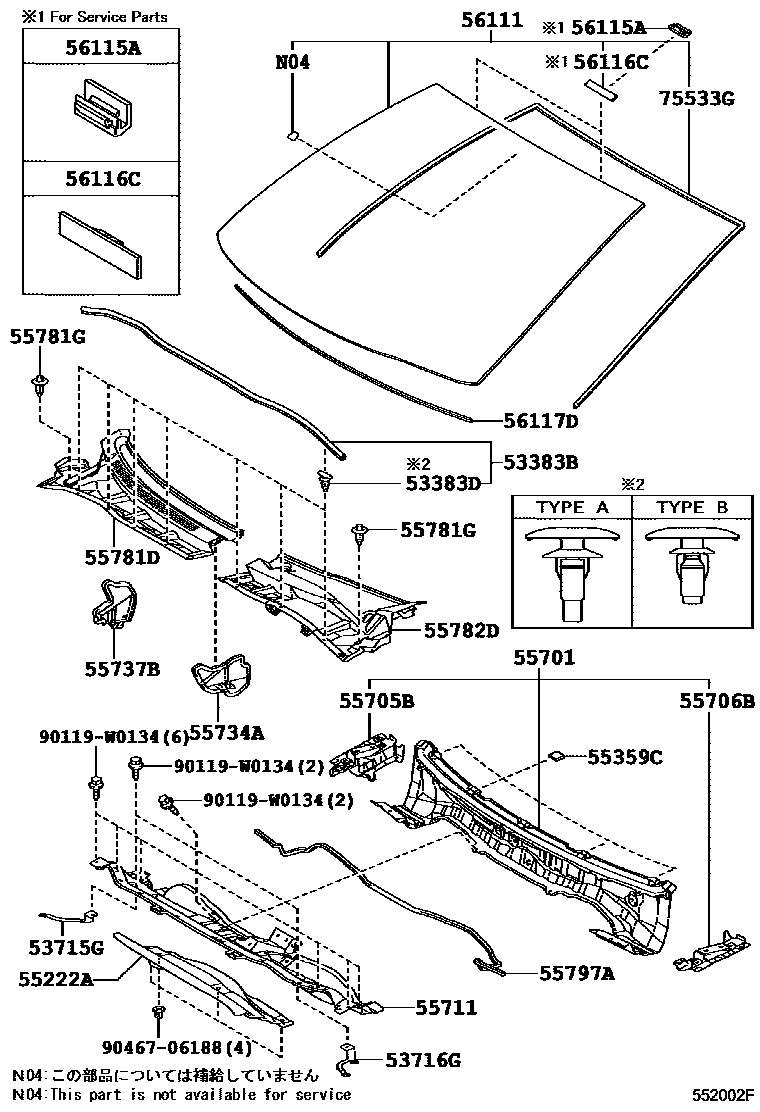

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-02110iADE150,NDE150,NRE150,ZRE15#200707-201404

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iADE150,NDE150,NRE150,ZRE15#¥100200707-201404

TYPE A:REFER ILLUST.

main67867-52030iZRE151¥100200707-201404

TYPE B:REFER ILLUST.

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-12071iNDE150..6F200707-201404

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-12081iNDE150,ZRE15#,ZZE150200707-201404

55222AINSULATOR, DASH PANEL, OUTER CENTER

main55224-02040iNDE150,ZRE15#,ZZE150200707-201901

sub55224-02041

main55224-02041iZRE151201902

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-02140iNDE150,ZRE15#,ZZE150200807-201404

55701PANEL SUB-ASSY, COWL

main55700-02310iADE150,NDE150,NRE150,ZRE15#..LHD200710-201404

main55700-02330iZRE15#,ZZE150..RHD200707-201404

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-12080iNDE150,ZRE15#,ZZE150¥3,920200707-201404

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-12090iNDE150,ZRE15#,ZZE150¥3,920200707-201404

55711PANEL, COWL TOP, OUTER

main55701-02190iNDE150..6F200710-201404

main55701-02200iZRE15#,ZZE150..RHD200707-201404

55734APLATE, WATER GUARD, RH

main55734-02030iZRE151..LHD..N;ADE150,NRE150,ZRE152..LHD200710-201404

main55734-02040iZRE15#,ZZE150..RHD200707-201404

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02020iZRE151..LHD..D200710-201404

main55737-02030iZRE15#,ZZE150..RHD200707-201404

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-02350iNDE150..6FS200710-201404

main55708-02350iNDE150,ZRE15#,ZZE150..LHD200802-200903

(L)

main55708-02370iZRE15#,ZZE150..RHD200707-201404

main55708-12330iNDE150,ZRE15#,ZZE150..LHD¥10,200200802-200903

(J)

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iADE150200707-201703

BLACK

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

main90467-07076-C7iZRE151201703

BLACK

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-02250iZRE151..GEN200710-201404

main55709-02260iZRE151..D..SA200707-201404

55797ASEAL, COWL WATER EXTRACT

main55797-02020iZRE151..D..SA;ZRE151..LHD..D200707-201404

56111GLASS, WINDSHIELD

main56101-02330iNDE150,ZRE15#,ZZE150..LHD200710-200903

sub56101-02331

main56101-02331iZRE151..LHD..D200902-201404

main56101-02360iADE150..N..SA200707-200903

main56101-02361iADE150,NRE150,ZRE15#..RHD..(D,N)200902-201404

main56101-02410iADE150..E200707-200903

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-02411iADE150,NRE150,ZRE15#..RHD..N200902-201006

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-02A10iADE150,NRE150,ZRE15#..RHD..N201006-201401

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-02J40iZRE151..GEN201404-201808

*LAM,T=4.66,GREEN

main56101-02J50iZRE151..SA201404-201808

*LAM,T=4.66,GREEN

main56101-0Z490iZRE151..GEN201808-201911

main56101-0Z500iZRE151..SA201808-201911

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iZRE151¥130200707-201404

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNDE150..6F¥120200707-201404

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-12300iNDE150,ZRE15#,ZZE150200707-201404

L=1303

sub56117-50140¥870

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-12690iNDE150,ZRE15#,ZZE150¥2,910200707-201911

90119W0134

main90119-W0134¥60

9046706188

main90467-06188¥160

23 parts on this diagram · 2 diagrams in section
