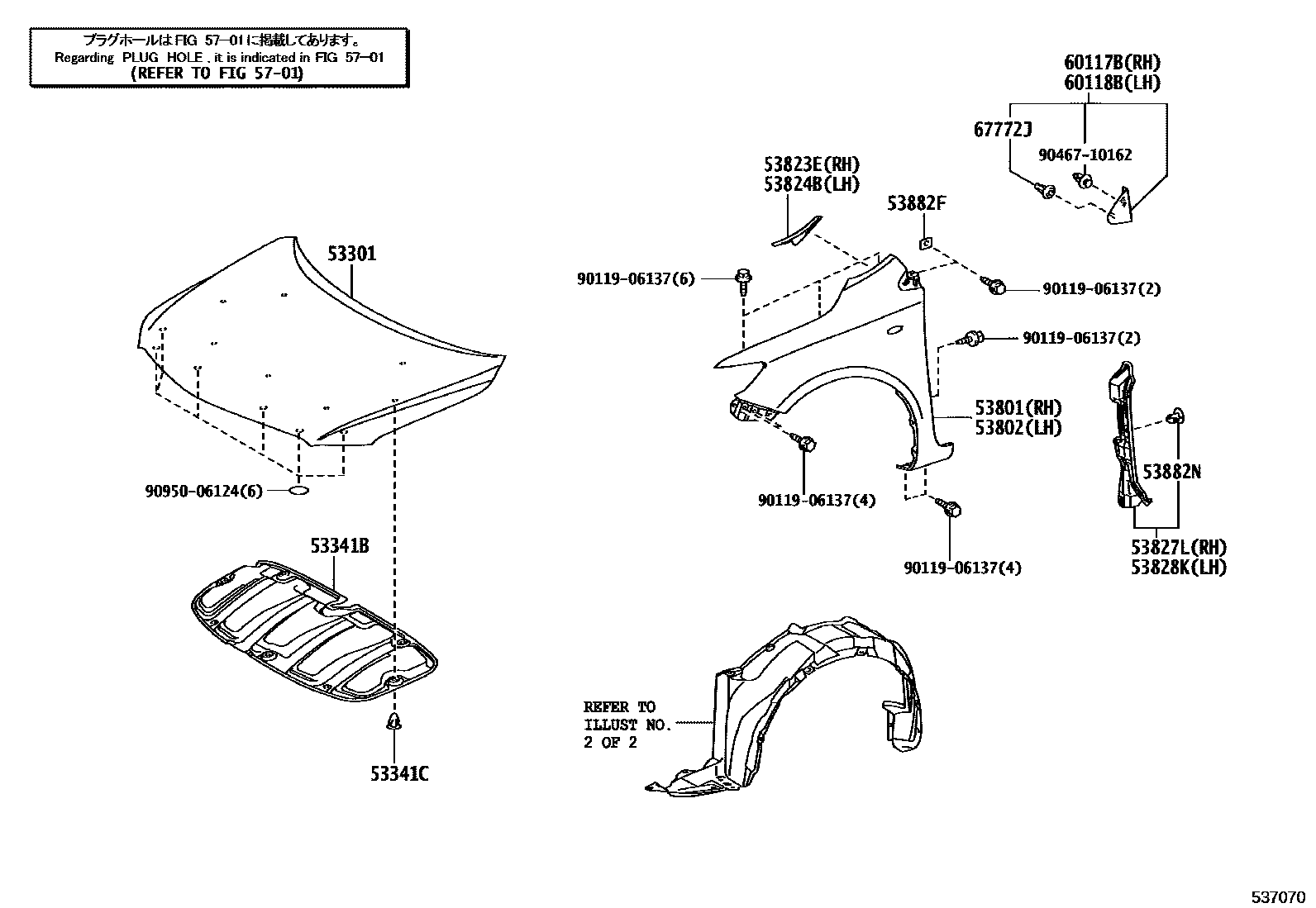

HOOD & FRONT FENDER

0001 1 0003 1FENDER LINER 0005 1 0007 1FENDER LINER

53301HOOD SUB-ASSY

main53301-02170iADE150,NDE150,NRE150,ZRE15#200707-201404

53341BINSULATOR, HOOD

main53341-02140iNDE150,ZRE152200707-201401

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNDE150,ZRE152200707-201401

53801FENDER SUB-ASSY, FRONT RH

main53811-02190iNDE150,ZRE15#,ZZE150200707-201006

main53811-02310iNDE150..6F201006-201404

53802FENDER SUB-ASSY, FRONT LH

main53812-02190iADE150,NDE150,NRE150,ZRE15#200707-201006

main53812-02310iZRE151..D..SA;ZRE151..LHD..D201006-201404

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-12030iNDE150,ZRE15#,ZZE150200707-201404

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-12020iNDE150,ZRE15#,ZZE150200707-201404

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02080iNDE150,ZRE15#,ZZE150200707-201404

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02080iNDE150,ZRE15#,ZZE150200707-201404

53882FSEAL, FRONT FENDER

main53882-16030iADE150200707-201404

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-11050-E1iNDE150,ZRE15#,ZZE150200707-201404

SANDAL WOOD

sub90467-11050

5701

60117BCOVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02050iNDE150,ZRE15#,ZZE150200707-201404

60118BCOVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02050iNDE150,ZRE15#,ZZE150200707-201404

67772JCAP, FRONT PILLAR COVER RETAINER

main67772-95J03iNDE150,ZRE15#,ZZE150200707-201404

9011906137

main90119-06137

9046710162

main90467-10162

9095006124

main90950-06124

18 parts on this diagram · 4 diagrams in section
