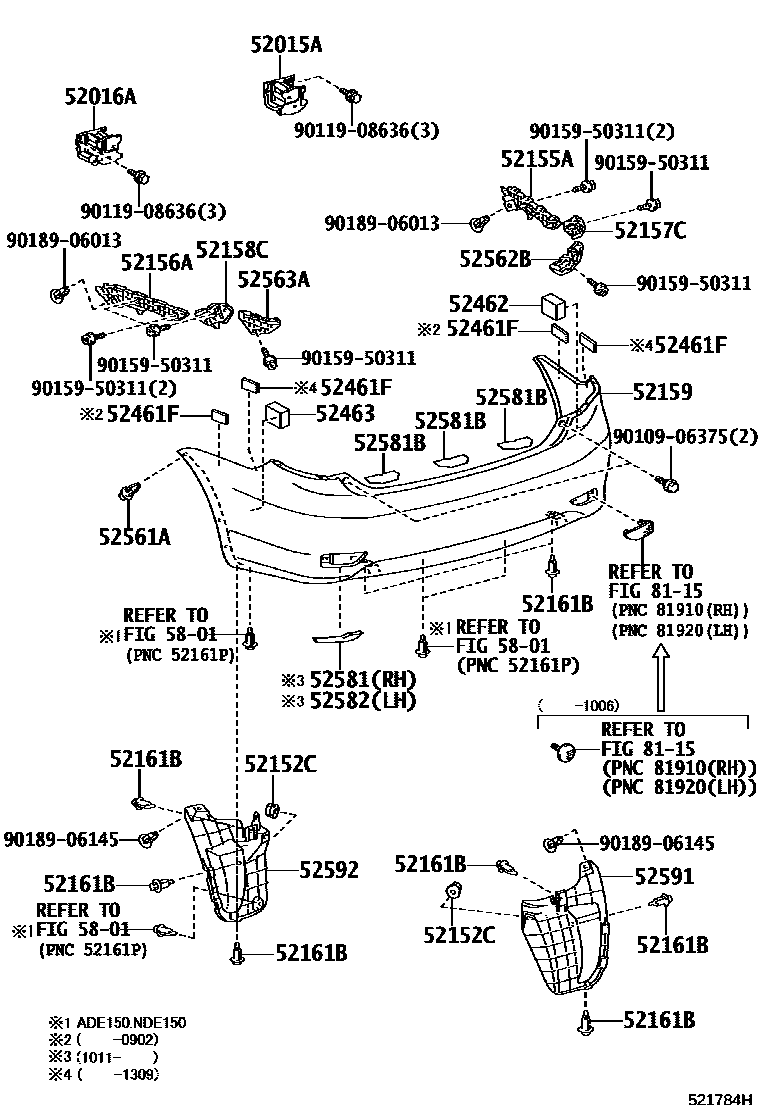

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-02070iADE150,NDE150,NRE150,ZRE15#200707-201404

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-02060iNDE150,ZRE15#,ZZE150200707-201404

52152CCLIP, REAR BUMPER SIDE

main90467-06121iNDE150..6FS¥220201006-201404

main90467-06206-C0iZRE151201404

BLACK

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-02050iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-201404

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-02040iNDE150,ZRE15#,ZZE150200707-201404

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-02030iADE150200707-201404

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-02020iADE150200707-201404

52159COVER, REAR BUMPER

main52159-02957iNDE150,ZRE15#,ZZE150200707-201006

PAINT REQ.

main52159-02976iZRE151..D..SA;ZRE151..LHD..D201006-201404

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040iZRE151¥120201509

(L)

main52161-16010iADE150,NDE150,NRE150,ZRE15#¥120200707-201509

sub52161-0K040¥120

main52161-16010iZRE151¥120201509

(J)

sub52161-0K040¥120

52461FPAD, REAR BUMPER

main52461-02050iADE150,NRE150,ZRE15#200707-201309

52462PAD, REAR BUMPER, RH

main52462-12090iADE150,NDE150,NRE150,ZRE15#¥460200707-201006

main52462-12120iNDE150..6FS201006-201404

52463PAD, REAR BUMPER, LH

main52462-12090iNDE150,ZRE15#,ZZE150¥460200707-201006

main52462-12120iNDE150..6FS201006-201404

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1iNDE150,ZRE15#,ZZE150200707-201209

DK.GRAY

sub90467-05090¥110

main90467-05170iNDE150¥80201210-201404

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02060iNDE150,ZRE15#,ZZE150200707-201006

main52562-02140iNDE150..6FS201006-201404

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02040iNDE150,ZRE15#,ZZE150200707-201006

main52563-02110iNDE150..6FS201006-201404

52581PROTECTOR, REAR BUMPER, RH

main52581-02070iNDE150..6FS201011-201404

52581BPROTECTOR, REAR BUMPER

main52581-02040iNDE150,ZRE15#,ZZE150200707-201404

52582PROTECTOR, REAR BUMPER, LH

main52582-02010iNDE150..6FS201011-201404

52591SEAL, REAR BUMPER SIDE, RH

main52591-02150iNDE150,ZRE15#,ZZE150200707-201404

52592SEAL, REAR BUMPER SIDE, LH

main52592-02140iNDE150,ZRE15#,ZZE150200707-201404

5801

8115

9010906375

main90109-06375¥80

9011908636

main90119-08636¥90

9015950311

main90159-50311¥70

9018906013

main90189-06013¥70

9018906145

main90189-06145¥80

27 parts on this diagram · 1 diagram in section
