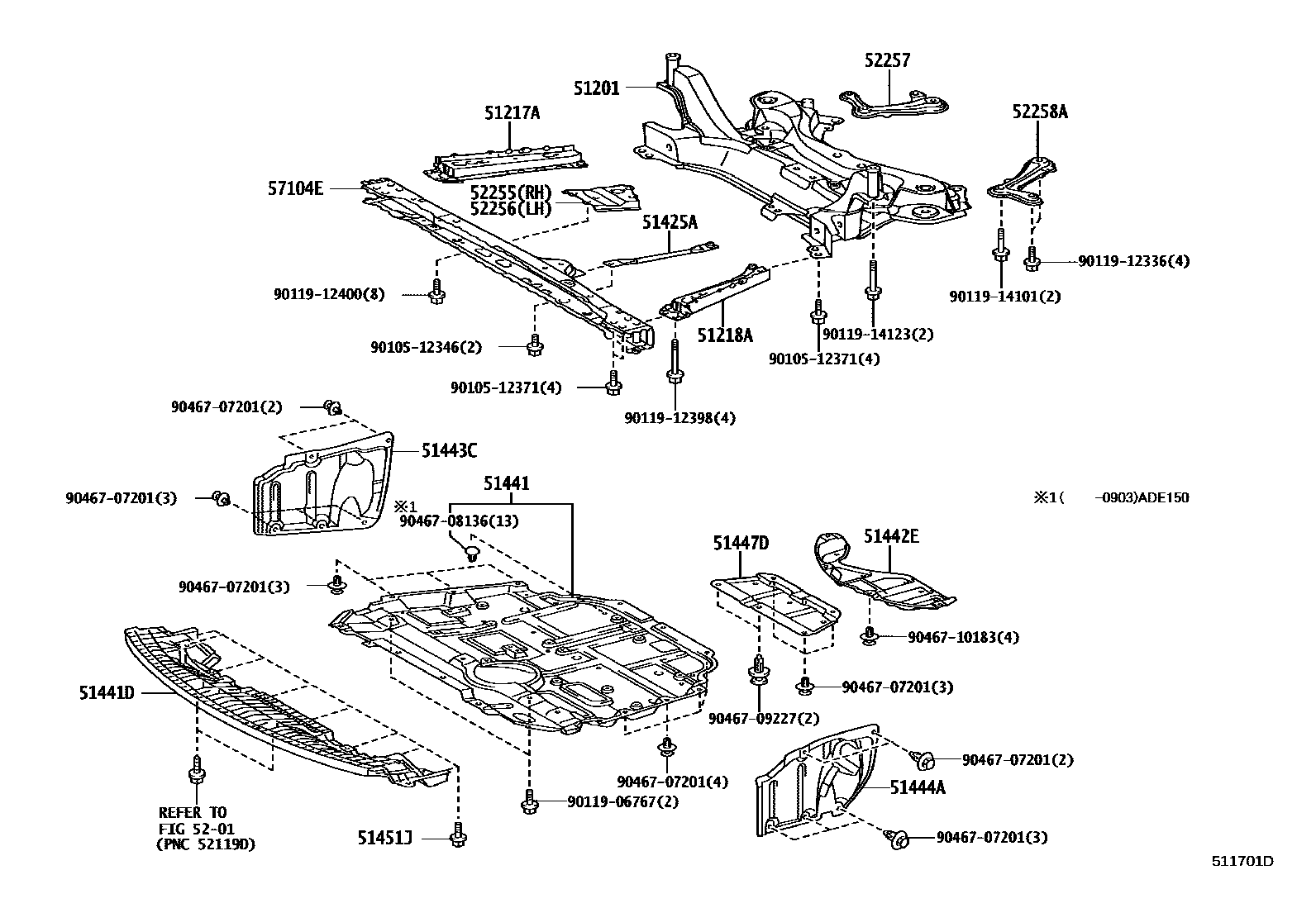

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02122iADE150,NDE150,NRE150,ZRE15#200902-201006

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-02020iNDE150,ZRE15#,ZZE150200707-200902

main51107-02021iZRE151201907

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-02020iNDE150,ZRE15#,ZZE150200707-200902

main51108-02021iZRE151201907

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02020iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153201006-201401

51441COVER, ENGINE UNDER, NO.1

main51410-02130iADE150200707-200903

main51410-02160iADE150201006-201401

main51441-02231iNDE150200710-200902

main51441-02240iZRE15#,ZZE150200707-200902

main51408-02041iZRE15#,ZZE150..GEN200710-200902

ENGINE UNDER COVER & PROTECTOR-WITH(STEEL)

51441DCOVER, ENGINE UNDER

main52618-02020iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

main52618-02021iADE150,NDE150,NRE150,ZRE15#201101-201404

51442ECOVER, ENGINE UNDER, NO.2

main51442-02230iNDE150200707-200902

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02060iADE150,NDE150,NRE150,ZRE15#200902-201006

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02050iNDE150,ZRE15#,ZZE150200707-200902

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02020iNDE150,ZRE15#,ZZE150200707-200902

51451JBOLT, NO.1

main90119-06767×8iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02020iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

main52255-02021iZRE151201907

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02020iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

main52256-02021iZRE151201907

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02030iADE150,NDE150,ZRE15#,ZZE150200707-200806

main52257-02031iNDE150,ZRE15#,ZZE150200807-200902

main52257-02070iZRE151201404-201906

main52257-02071iZRE151201907

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02030iADE150,NDE150,ZRE15#,ZZE150200707-200806

main52258-02031iNDE150,ZRE15#,ZZE150200807-200902

main52258-02070iZRE151201404-201906

main52258-02071iZRE151201907

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-12270iNDE150,ZRE15#,ZZE150200707-200902

9010512346

main90105-12346

9010512371

main90105-12371

9011906767

main90119-06767

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914123

main90119-14123

9046707201

main90467-07201

9046708136

main90467-08136

9046709227

main90467-09227

9046710183

main90467-10183

29 parts on this diagram · 2 diagrams in section
