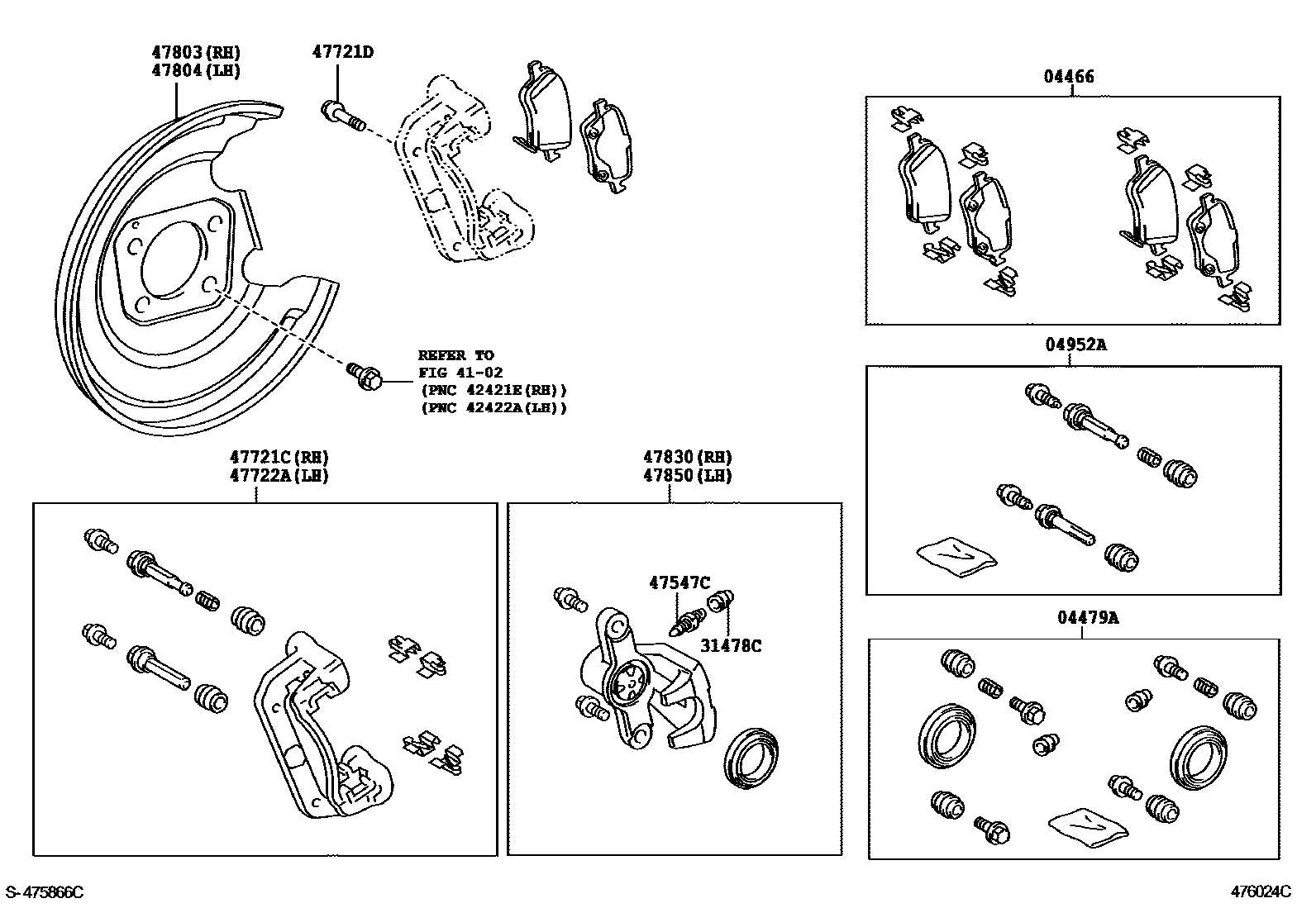

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02180iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

MARK GALFER G3409

main04466-02181iADE150,NDE150,NRE150,ZRE15#200903-201006

MARK GALFER G3409

main04466-02350iZRE151201702

MARK GALFER GA3409

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02310iNDE150,ZRE15#,ZZE150200707-200902

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02220×2iNDE150,ZRE15#,ZZE150200707-200902

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90069-39001×2iNDE150,ZRE15#,ZZE150200707-200902

4102

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39000×2iNDE150,ZRE15#,ZZE150200707-200902

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09020iNDE150,ZRE15#,ZZE150200707-200902

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404×4iNDE150,ZRE15#,ZZE150200707-200902

*10-1.25PX24-21.5

main90105-10576×4iZRE151201404

*10-1.25PX19-15.25

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09020iNDE150,ZRE15#,ZZE150200707-200902

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-02051iNDE150,ZRE15#,ZZE150200707-200902

main47881-02120iZRE151201404

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-02051iNDE150,ZRE15#,ZZE150200707-200902

main47882-02120iZRE151201404

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02100iNDE150,ZRE15#,ZZE150200707-200902

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02100iNDE150,ZRE15#,ZZE150200707-200902

sub47850-02101

13 parts on this diagram · 1 diagram in section
