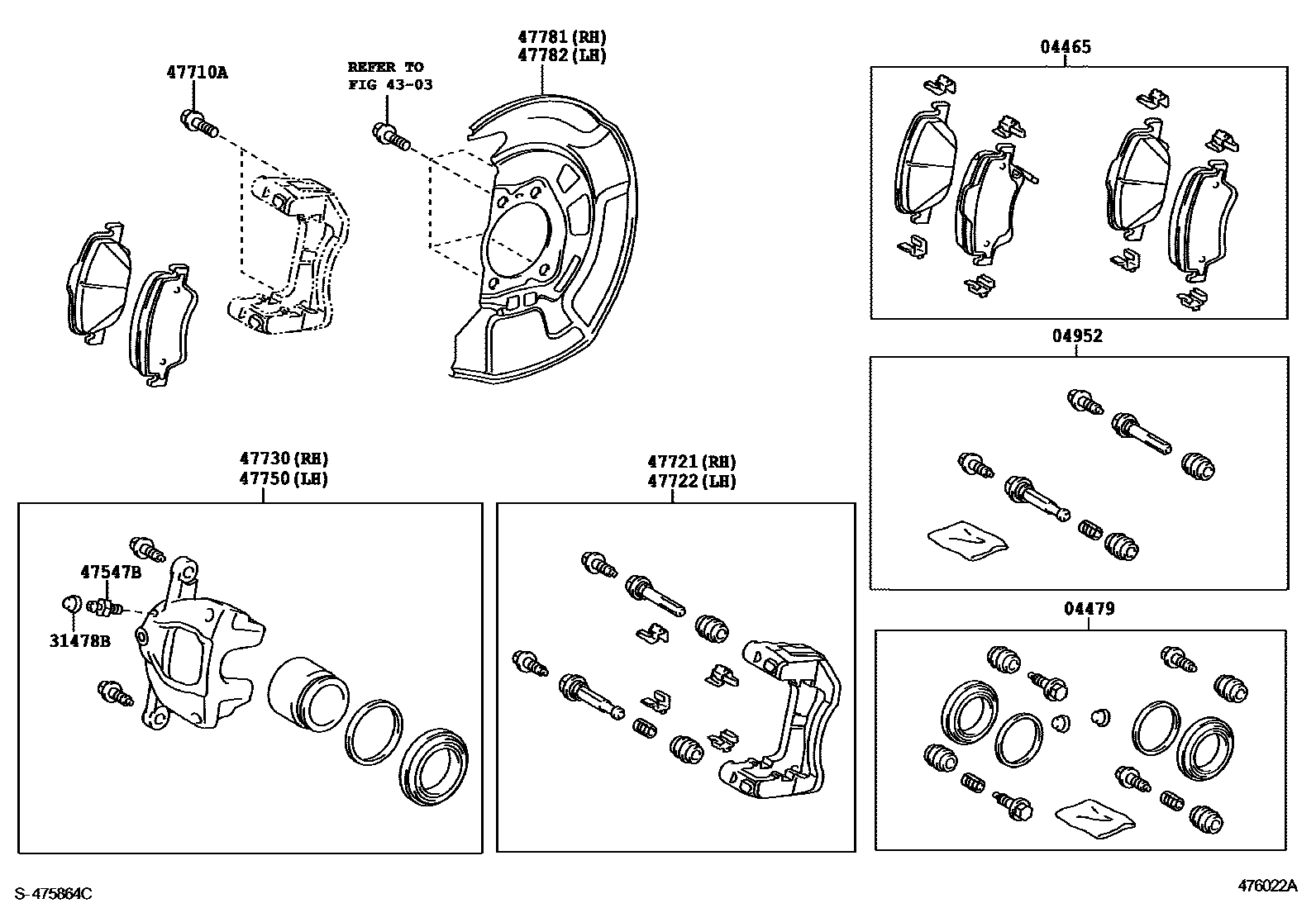

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02190iADE150200707-200810

MARK JURID 672

main04465-02200iNDE150,ZRE15#,ZZE150200707-200801

MARK JURID 672

main04465-02210iNDE150,NRE150,ZRE15#200902-201006

MARK AK NS 341

main04465-02270iNDE150,ZRE15#,ZZE150200802-200811

MARK JURID 672

main04465-02280iADE150200811-200903

MARK JURID 672

main04465-02340iNDE150,NRE150,ZRE15#201006-201108

MARK AK NS341H

main04465-02370iZRE151..D..SA;ZRE151..LHD..D201109-201404

MARK AK NS 341

main04465-0F010iADE150201009-201401

MARK AK NS378H

sub04465-0F011

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02160iNDE150,ZRE15#,ZZE150200707-200902

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02220×2iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153201006-201401

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main90069-39001×2iADE150200707-200810

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39000×2iADE150200707-200810

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iNDE150,ZRE15#,ZZE150200707-200902

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09360iADE150200707-200810

main47721-09370iNDE150,ZRE15#,ZZE150200707-200811

main47721-09480iADE150200903-201006

main47721-09490iNDE150,ZRE15#,ZZE150200811-200902

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09120iADE150200707-200810

main47722-09130iNDE150,ZRE15#,ZZE150200707-200811

main47722-09180iADE150201006-201401

main47722-09190iNDE150..6F201006-201306

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02340iNDE150,ZRE15#,ZZE150200707-200811

main47730-02341iNDE150,ZRE15#,ZZE150200811-200902

main47730-02360iADE150200707-200810

main47730-02361iADE150200811-200903

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02340iNDE150,ZRE15#,ZZE150200707-200811

main47750-02341iNDE150,ZRE15#,ZZE150200811-200902

main47750-02360iADE150200707-200810

main47750-02361iADE150200811-200903

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02110iNDE150,NRE150,ZRE15#200902-201006

main47781-02220iZRE151201612

main47781-42040iADE150201006-201401

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02110iNDE150,ZRE15#,ZZE150200707-200902

main47782-02220iZRE151201612

main47782-42040iADE150201006-201401

13 parts on this diagram · 2 diagrams in section
