BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1905

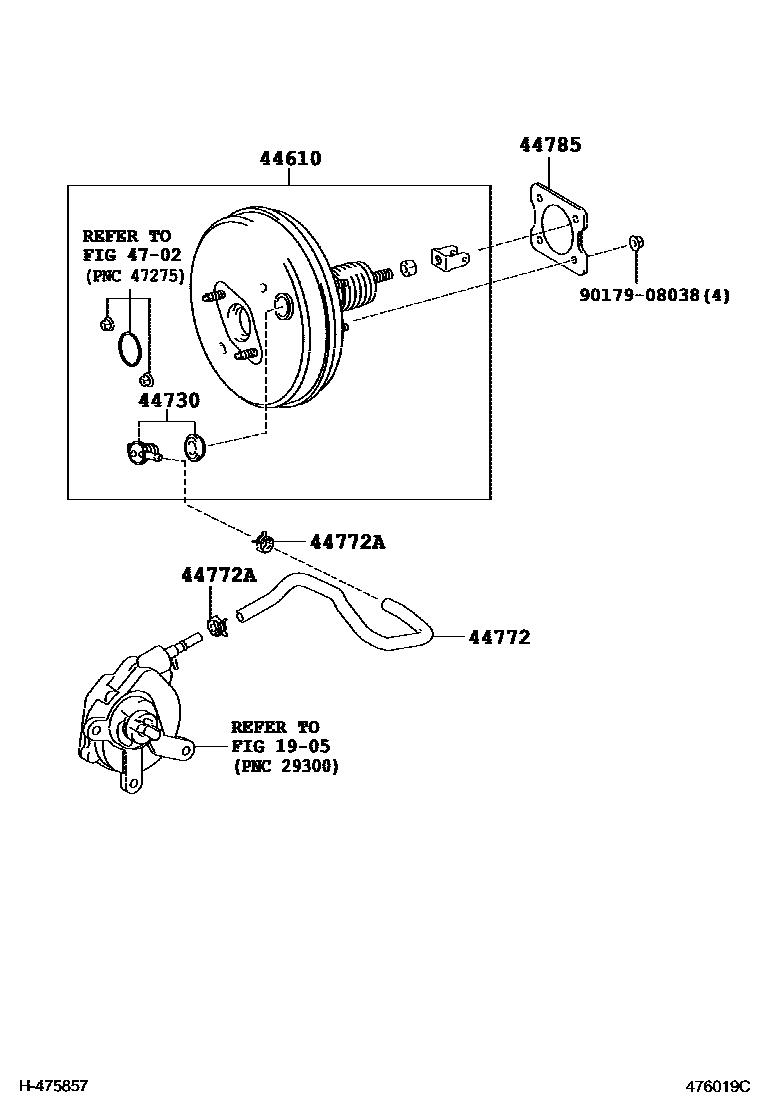

44610BOOSTER ASSY, BRAKE

main44610-09400iADE150..GEN;NDE150..5F,5FS200802-200903

main44610-09420iADE150..SA200802-200903

main44610-09430iZRE15#,ZZE150..LHD200802-200902

main44610-09450iNRE150,ZRE15#..RHD200902-201006

main44610-09710iNRE150,ZRE151,152..LHD201006-201209

main44610-09711iZRE151..GEN201404

main44610-09720iADE150..SA201006-201209

main44610-09721iADE150..SA201210-201401

main44610-09730iNRE150,ZRE15#..RHD201006-201209

main44610-09731iZRE151..SA201404

main44610-09740iADE150,NDE150..GEN201006-201209

main44610-09741iADE150,NDE150..GEN201210-201401

main44610-09440iZRE153201010-201209

VSC-WITH

main44610-09441iZRE153201210-201401

VSC-WITH

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iNDE150,ZRE15#,ZZE150200707-200902

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02340iZRE151..GEN201712

main44772-02350iZRE151..SA201712

main44772-12580iADE150,ZRE152,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)200710-200903

main44772-12620iZRE15#,ZZE150..RHD200707-200902

main44772-12640iADE150..SA200903-201006

main44772-12700iNRE150..RHD201006-201401

main44772-12710iNRE150..LHD201006-201401

sub44772-02360

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-W0008×2iADE150,ZRE15#201006-201404

main90467-16014iNRE150..RHD201006-201401

main96133-41500×2iNDE150,NRE150..LHD201006-201401

44785GASKET, BRAKE BOOSTER

main44785-05020iZRE151201404

main44785-12040iADE150200707-200903

4702

9017908038

main90179-08038

8 parts on this diagram · 10 diagrams in section
