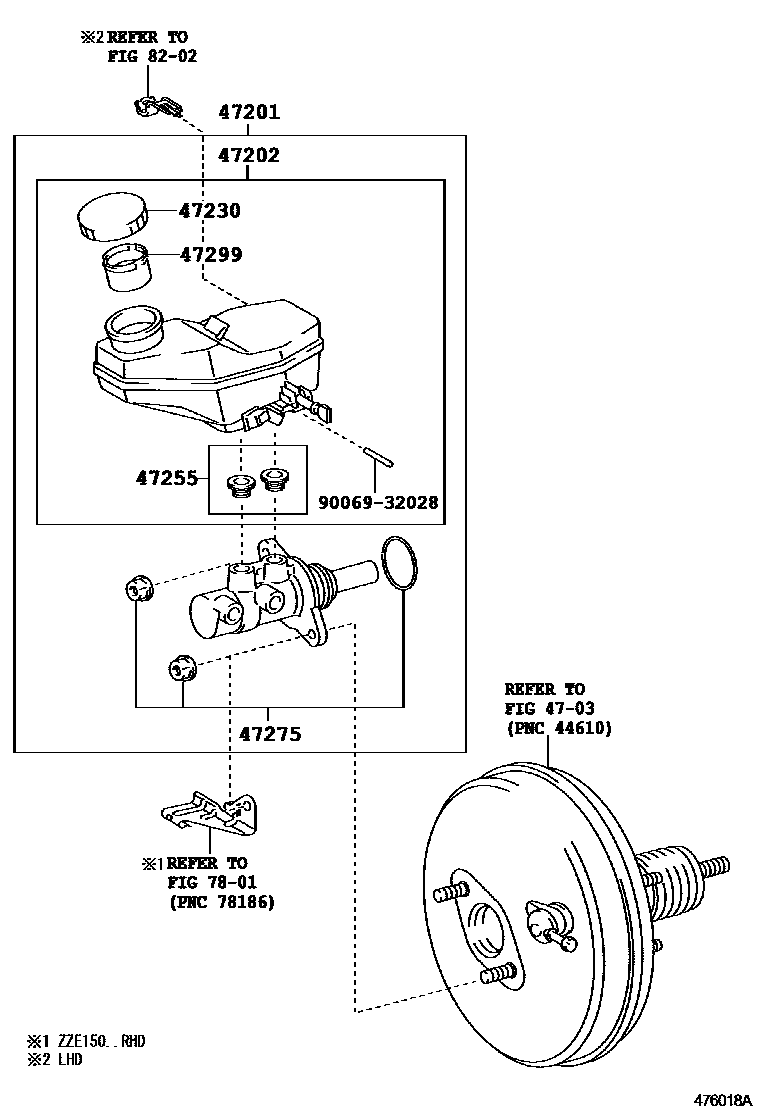

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09290iADE150,NDE150,ZRE15#,ZZE150..LHD200710-200804

sub47201-09510

main47201-09310iADE150,ZRE15#,ZZE150..RHD200707-200804

sub47201-09530

main47201-09510iADE150,NDE150,NRE150,ZRE15#..LHD200804-201404

main47201-09520iZRE153201010-201401

VSC-WITH

main47201-09530iADE150,NRE150,ZRE15#..RHD200804-201404

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09090iADE150,NDE150,NRE150,ZRE151,152..LHD200710-201404

main47220-09100iZRE151..SA200707-201404

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iNDE150..6F200707-201404

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iNDE150,ZRE15#,ZZE150200707-201404

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-201404

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iNDE150,ZRE15#,ZZE150200707-201404

7801

8202

9006932028

main90069-32028

10 parts on this diagram · 1 diagram in section
