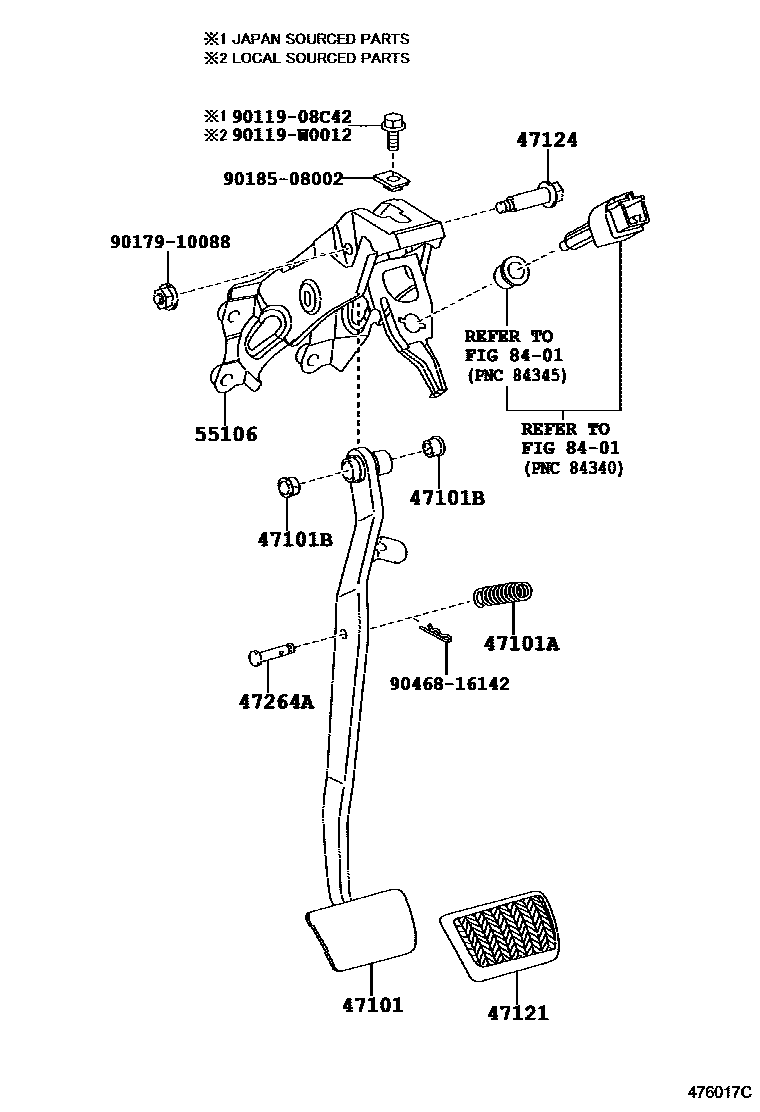

BRAKE PEDAL & BRACKET

0001 1 0004 1

47101PEDAL SUB-ASSY, BRAKE

main47101-02450iZRE151..6F..GEN201404

main47101-02460iZRE151..4FC..GEN201404

main47101-12630iADE150,ZRE15#,ZZE150..5F,6F200707-200708

sub47101-12631

main47101-12631iADE150,NRE150,ZRE15#..RHD..6F200709-201404

main47101-12640iZRE15#..4FC,5FS200707-200708

sub47101-12641

main47101-12641iZRE15#..RHD..4FC200709-201401

main47101-12650iZRE151..LHD..6F..N;ADE150,NRE150,ZRE152..LHD..6F200710-201404

main47101-12660iNDE150..6FS200710-201404

main47101-12710iZRE151..6F..SA201404

main47101-12720iZRE151..4FC..SA201404

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15005iADE150200707-201404

main90507-15007iZRE151201404

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iADE150,ZRE15#,ZZE150200707-201404

47121PAD, BRAKE PEDAL

main31321-42010iADE150,ZRE15#,ZZE150..5F,6F200707-201404

main47121-42010iNDE150,ZRE15#..(4FC,5FS)..GEN200707-201404

47124SHAFT, BRAKE PEDAL

main90101-10039iZRE151..GEN201404

main90109-10174iZRE15#,ZZE150..SA200707-201404

47264APIN(FOR PUSH ROD)

main90249-08256iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153200707-201404

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02160iZRE151..GEN201404

main55106-12680iZRE15#,ZZE150..RHD..GEN200707-201404

main55106-12690iNDE150..6F200710-201404

8401

9011908C42

main90119-08C42

90119W0012

main90119-W0012

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

13 parts on this diagram · 2 diagrams in section
