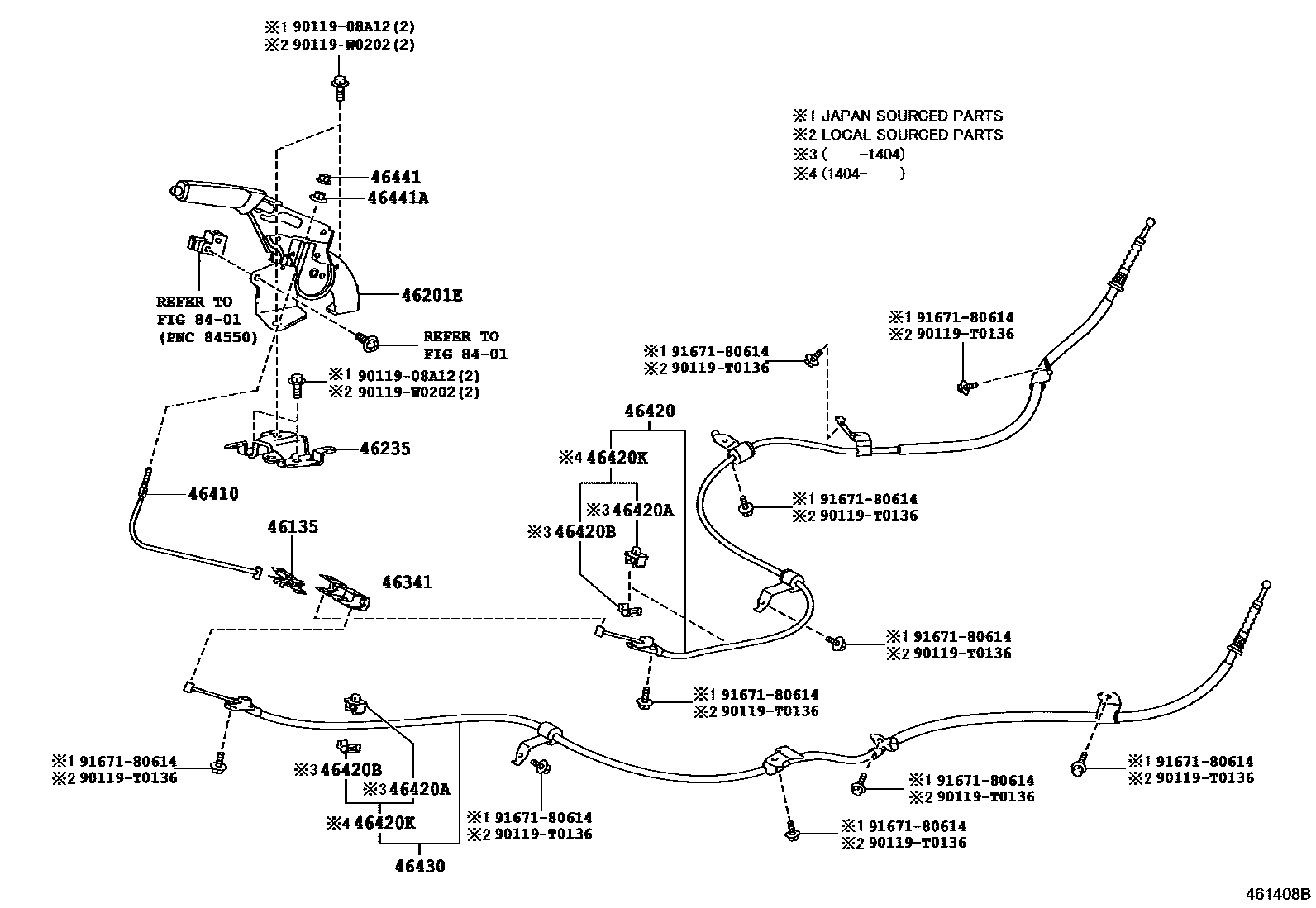

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iADE150,NDE150,NRE150,ZRE15#200707-201404

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12370-B0iNDE150,NRE150,ZRE151,152..LHD..D200710-201011

DK.GRAY,TRIM1#

sub46201-12370

main46201-12370-B0iNDE150,NRE150,ZRE151,152..LHD..D201006-201011

DK.GRAY,TRIM1#,4#

sub46201-12370

main46201-12370-C0iADE150,NDE150,NRE150,ZRE151,152..LHD..N201011-201401

BLACK,TRIM1#,4#

sub46201-12370

main46201-12370-C0iNDE150,NRE150,ZRE151,152..LHD..D201011-201404

BLACK,TRIM1#

sub46201-12370

main46201-12370-E0iNDE150,ZRE15#,ZZE150..LHD..N200710-201006

ASH BROWN,TRIM4#

sub46201-12370

main46201-12380-B0iADE150,NRE150,ZRE15#..RHD..(E,N)201006-201011

DK.GRAY,TRIM1#,4#

sub46201-12380

main46201-12380-B0iZRE15#,ZZE150..RHD200707-201011

DK.GRAY,TRIM1#

sub46201-12380

main46201-12380-C0iNRE150,ZRE151,152..RHD..D201011-201404

BLACK,TRIM1#

sub46201-12380

main46201-12380-C0iADE150,NRE150,ZRE15#..RHD..(E,N)201011-201401

BLACK,TRIM1#,4#

sub46201-12380

main46201-12380-E0iADE150,NRE150,ZRE15#..RHD..(E,N)200707-201006

ASH BROWN,TRIM4#

sub46201-12380

main46201-12450-C0iZRE151..GEN201404

BLACK,TRIM1#

sub46201-12450

main46201-12460-C0iZRE151..SA201404

BLACK,TRIM1#

sub46201-12460

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-02040iZRE151201404

(L)

main46235-12010iADE150200707-201404

main46235-12010iZRE151201404

(J)

46341EQUALIZER, PARKING BRAKE

main46341-12040iZRE151..D..SA;ZRE151..LHD..D200707-201404

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12320iNDE150,ZRE15#,ZZE150200707-201404

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02121iNDE150,ZRE15#,ZZE150200707-201404

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-12030iNDE150,ZRE15#,ZZE150200707-201404

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-12040iNDE150,ZRE15#,ZZE150200707-201404

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46402-12030iZRE151201404

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02121iNDE150,ZRE15#,ZZE150200707-201404

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iNDE150,ZRE15#,ZZE150200707-201404

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iNDE150,ZRE15#,ZZE150200707-201404

8401

9011908A12

main90119-08A12

90119T0136

main90119-T0136

90119W0202

main90119-W0202

9167180614

main91671-80614

17 parts on this diagram · 1 diagram in section
