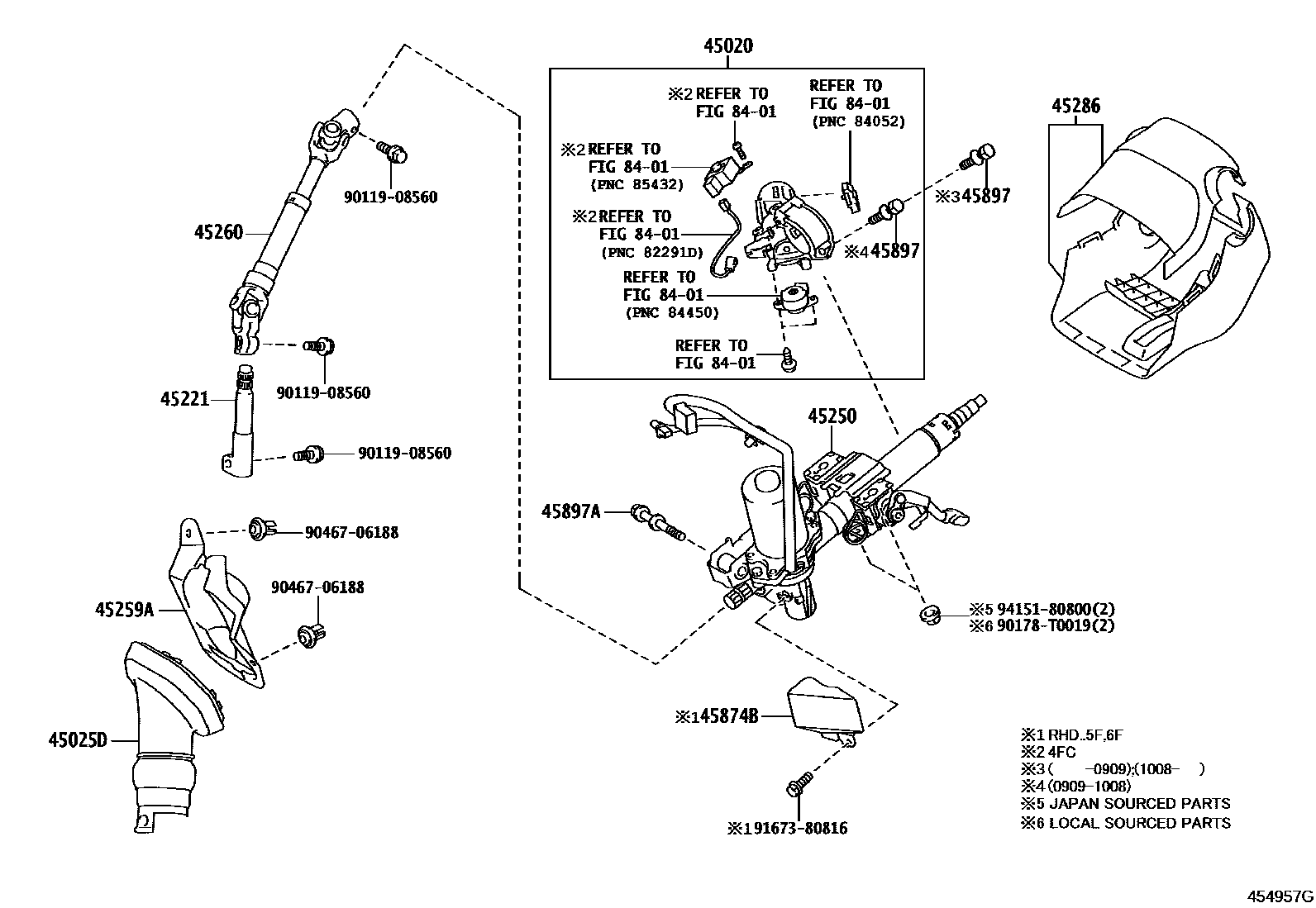

STEERING COLUMN & SHAFT

0001 1 0002 1STARTING SYSTEM-PUSH BUTTON

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-02230iADE150,NDE150,NRE150,ZRE15#..MTM..(D,N)200909-200911

sub45020-02231

sub45897-12050

main45020-02240iZRE15#..4FC200909-200911

sub45020-02241

sub45897-12050

main45020-02390iZRE15#..4FC200707-200909

sub45020-02240

main45020-02400iADE150..N200707-200909

sub45020-02230

main45020-02440iZRE15#..4FC200912-201007

sub45020-02441

sub45897-12050

main45020-02441iZRE151..LHD..4FC..D201008-201404

main45020-02450iADE150,NDE150,NRE150,ZRE15#..MTM..(D,N)200912-201007

sub45020-02451

sub45897-12050

main45020-02451iZRE151..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153..6F..(D,N)201008-201404

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02080iZRE15#,ZZE150..RHD200707-201404

main45025-02090iNDE150..6F200710-201404

45221SHAFT, STEERING INTERMEDIATE

main45221-02050iNDE150,ZRE15#,ZZE150200707-201404

45250COLUMN ASSY, STEERING

main45250-02660iADE150,ZRE15#..N200707-200709

STARTING SYSTEM-PUSH BUTTON

sub45250-02661

main45250-02661iADE150,ZRE15#..RHD..N200710-200712

STARTING SYSTEM-PUSH BUTTON

sub45250-02662

main45250-02662iADE150,ZRE151,153..N..SA200801-201102

STARTING SYSTEM-PUSH BUTTON

sub45250-02663

main45250-02663iADE150,ZRE151,153..N..SA201103-201401

STARTING SYSTEM-PUSH BUTTON

main45250-02670iADE150,ZRE15#,ZZE150..D,N200707-200709

sub45250-02671

main45250-02671iADE150,ZRE15#,ZZE150..RHD..(D,N)200710-200712

sub45250-02672

main45250-02672iZRE15#,ZZE150..RHD..(D,N)200801-201102

sub45250-02673

main45250-02673iZRE151..D..SA201103-201404

main45250-02692iNDE150,ZRE15#,ZZE150..LHD200810-201102

sub45250-02693

main45250-02693iNDE150..6F201103-201404

main45250-02881iADE150,NDE150,ZRE15#,ZZE150..LHD200710-200712

main45250-02882iADE150,NDE150,ZRE15#,ZZE150..LHD200801-200809

sub45250-02692

main45250-02682iADE150,ZRE15#..LHD..N200902-201006

STARTING SYSTEM-PUSH BUTTON

sub45250-02683

main45250-02683iADE150,ZRE151,152..LHD..N201103-201401

STARTING SYSTEM-PUSH BUTTON

main45250-02871iADE150,ZRE15#..LHD..N200710-200712

STARTING SYSTEM-PUSH BUTTON

main45250-02872iADE150,ZRE15#..LHD..N200801-200809

STARTING SYSTEM-PUSH BUTTON

sub45250-02682

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02070iADE150,NRE150,ZRE15#..RHD200707-201404

main45259-02080iNDE150..6FS200710-201404

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02090iADE150,NDE150,ZRE15#,ZZE150..GEN200707-201306

sub45260-02250

main45260-02250iADE150,NRE150,ZRE15#201306-201404

45286COVER, STEERING COLUMN

main45286-02937-B0iZRE152..E200707-201006

DK.GRAY,TRIM1#

main45286-02937-B0iZRE151..N..SA;ADE150,ZRE153..N;ZRE151,152..LHD..N201006-201401

DK.GRAY,TRIM1#,4#

main45286-02937-E1iADE150,ZRE15#..N200707-201006

STARTING SYSTEM-PUSH BUTTON,ASH BROWN,TRIM4#

main45286-02938-B0iNDE150,ZRE15#,ZZE150..D,N200707-201404

DK.GRAY,TRIM1#

main45286-02938-B0iADE150,NDE150,NRE150,ZRE15#..(4FC,6F)..N201006-201401

DK.GRAY,TRIM1#,4#

main45286-02938-E1iNDE150,ZRE15#,ZZE150..N200707-201006

ASH BROWN,TRIM4#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-12090iZRE15#,ZZE150..RHD..(5F,6F)200707-201404

45897BOLT, STEERING LOCK SET

main45897-12020iADE150..E201006-201007

STARTING SYSTEM-PUSH BUTTON

main45897-12020iNDE150,ZRE15#,ZZE150200707-201005

main45897-12050iADE150..E200909-201404

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNDE150,ZRE15#,ZZE150200707-201404

main90119-10981iZRE151201404

8401

9011908560

main90119-08560

90178T0019

main90178-T0019

9046706188

main90467-06188

9167380816

main91673-80816

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
