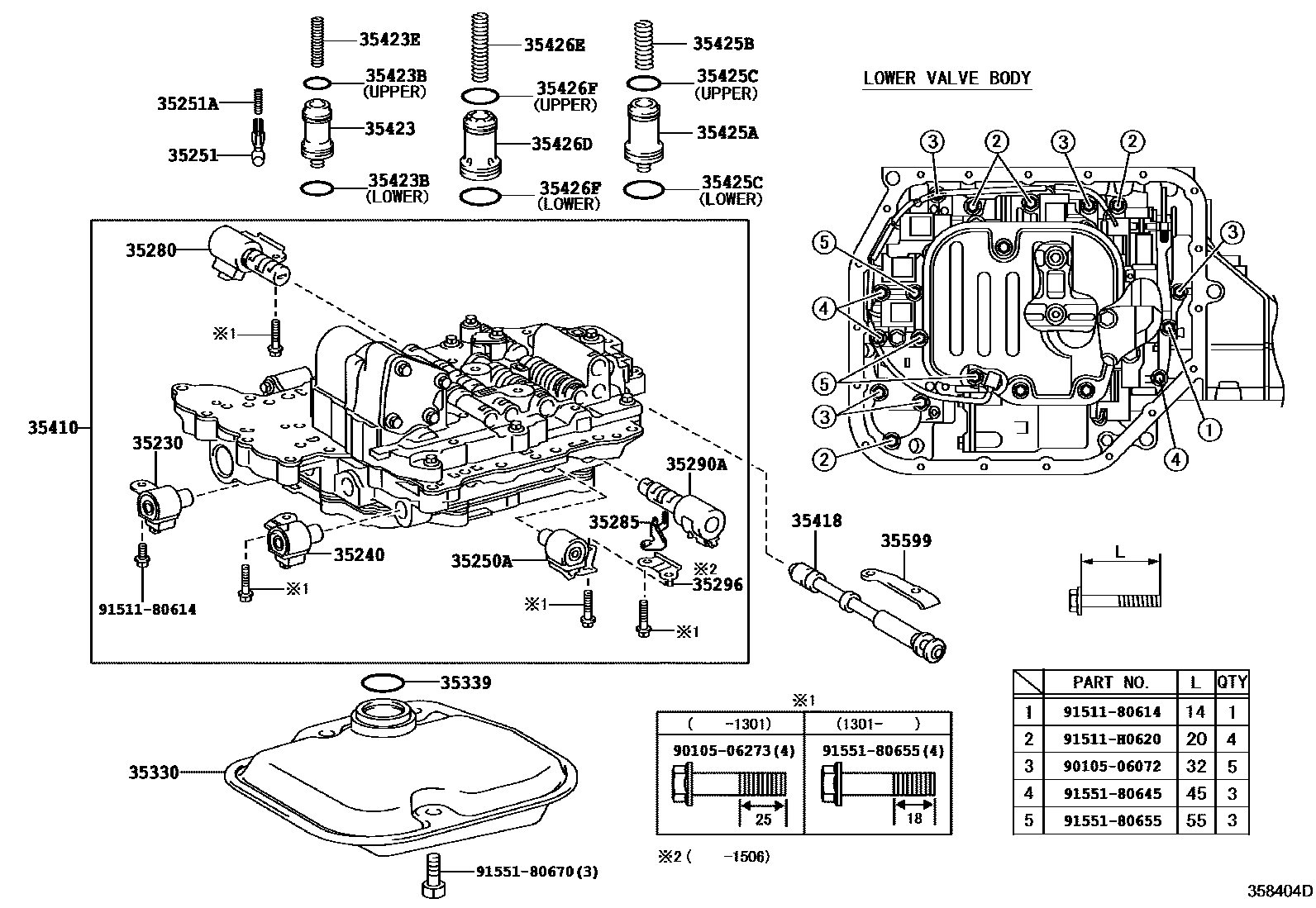

VALVE BODY & OIL STRAINER (ATM)

0001 1U340E,U341E 0002 1U241E 0003 1U340E,U341E 0004 1U241E

35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

main35230-33030iZRE153..4FC201010-201401

main35230-52020iZRE152..4FC200707-200902

main35230-52021iZRE151..LHD..4FC..D201201-201404

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-21010iZRE153..4FC201010-201401

main35240-52050iZRE15#..4FC200902-201006

main35240-52051iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201201-201401

35250ASOLENOID ASSY, TRANSMISSION, NO.3

main35250-52080iZRE151..4FC201404

35251BODY, CHECK BALL

main35251-30020iZRE152..4FC200707-200902

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iZRE152..4FC200707-200902

35280SOLENOID ASSY, LOCK UP CONTROL

main35270-52011iZRE152..4FC200707-200902

35285PLATE, SOLENOID LOCK

main35285-33060iZRE153..4FC201010-201401

main35285-52030iZRE152..4FC200707-200902

35290ASOLENOID ASSY, LINE PRESSURE CONTROL

main35290-52040iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

35296PLATE, SOLENOID LOCK, NO.3

main35296-12010iZRE15#..4FC200902-201006

main35296-33040iZRE153..4FC201010-201401

35330STRAINER ASSY, VALVE BODY OIL

main35330-06010iZRE153..4FC201010-201401

main35330-0W020iZRE152..4FC200707-200902

main35330-0W021iZRE151..4FC201404

35339GASKET, OIL STRAINER

main90301-32010iZRE152..4FC200707-200902

main90301-32015iZRE152,153..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201307-201401

35410BODY ASSY, TRANSMISSION VALVE

main35410-33190iZRE153..4FC201010-201401

sub35410-33180

main35410-52160iZRE15#..4FC200902-201006

main35410-52161iZRE151..LHD..4FC..D201301-201404

35418VALVE, MANUAL

main35418-21011iZRE153..4FC201010-201401

main35418-52020iZRE151..LHD..4FC..D201006-201404

35423PISTON, B-2 ACCUMULATOR

main35403-52020iZRE152..4FC200707-200902

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-20010iZRE152..4FC200707-200902

UPPER

main90301-29011iZRE15#..4FC200902-201006

LOWER

35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

main90501-18119iZRE152..4FC200707-200902

main90501-20158iZRE151..4FC201404

35425APISTON, C-2 ACCUMULATOR

main35405-52020iZRE152..4FC200707-200902

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-24036iZRE152..4FC200707-200902

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-22010iZRE151..LHD..4FC..D201006-201404

UPPER

main90301-35004iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

LOWER

35426DPISTON, C-3 ACCUMULATOR

main35406-21010iZRE153..4FC201010-201401

main35426-52020iZRE152..4FC200707-200902

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-23149iZRE152..4FC200707-200902

main90501-25057iZRE151..4FC201404

main90905-01035iZRE153..4FC201010-201401

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-24016iZRE152..4FC200707-200902

UPPER

main90301-29011iZRE151..4FC201404

LOWER

main90301-30007iZRE153..4FC201010-201401

35599COVER, MANUAL DETENT SPRING

main35599-21010iZRE153..4FC201010-201401

main35599-52010iZRE152..4FC200707-200902

9010506072

main90105-06072

9010506273

main90105-06273

9151180614

main91511-80614

91511H0620

main91511-H0620

9155180645

main91551-80645

9155180655

main91551-80655

9155180670

main91551-80670

30 parts on this diagram · 4 diagrams in section
