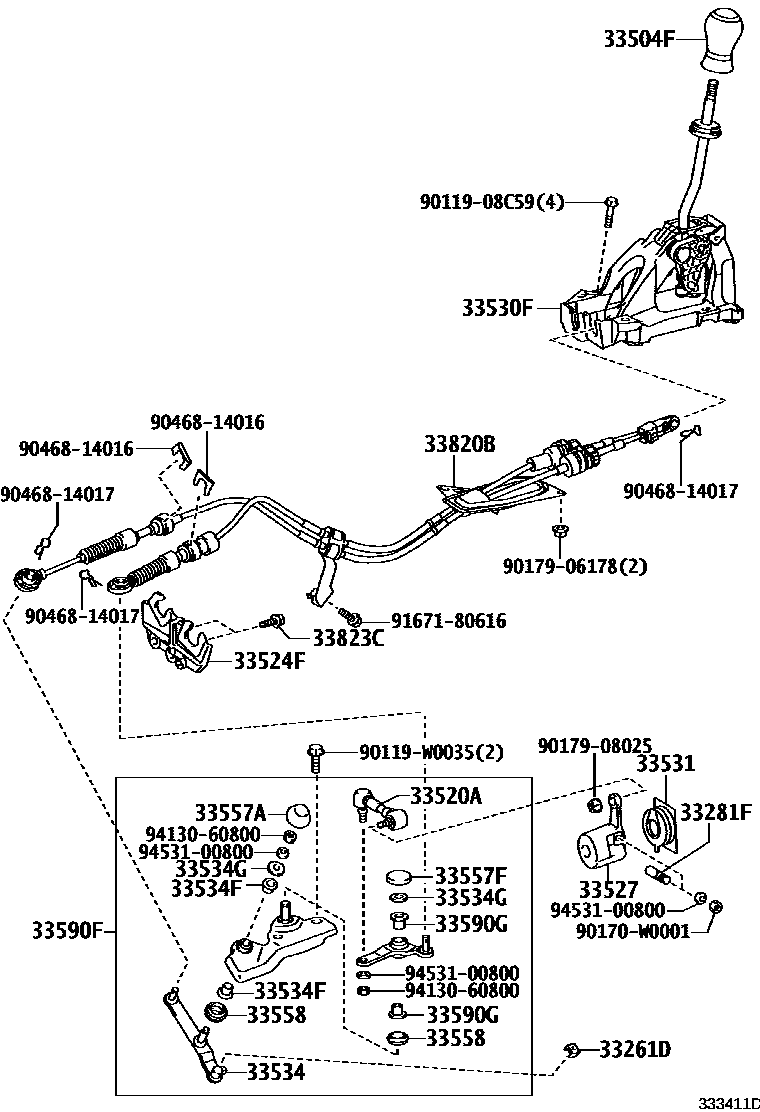

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iNDE150,ZRE15#,ZZE150..5F,6F200707-200902

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iNDE150,ZRE15#,ZZE150..5F,6F200707-200902

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02130-B1iNDE150,ZRE151,ZZE150..5F..N200707-200902

SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1#

main33504-02130-B1iNDE150,ZRE151,ZZE150..5F..D200707-200902

DK.GRAY,TRIM1#

main33504-02130-E0iNDE150,ZRE151,ZZE150..5F..N200707-200902

ASH BROWN,TRIM4#

main33504-02140-B1iADE150..GEN;ZRE152..RHD..6F..N..GEN200710-201001

SHIFT LEVER & KNOB-URETHANE,DK.GRAY,TRIM1#

sub33504-02141

main33504-02140-B1iADE150..GEN;ZRE152..RHD..6F..N..GEN200710-201001

DK.GRAY,TRIM1#

sub33504-02141

main33504-02140-E0iZRE152..RHD..6F..N..GEN200710-201001

SHIFT LEVER & KNOB-URETHANE,ASH BROWN,TRIM4#

sub33504-02141

main33504-02141-B1iNDE150,NRE150,ZRE151,152..6F..D201002-201404

DK.GRAY,TRIM1#

main33504-02141-B1iADE150..GEN;ZRE152..RHD..6F..N201006-201401

SHIFT LEVER & KNOB-URETHANE,DK.GRAY,TRIM1#,4#

main33504-02141-B1iADE150..GEN;ZRE152..RHD..6F..N..GEN201002-201006

SHIFT LEVER & KNOB-URETHANE,DK.GRAY,TRIM1#

main33504-02141-C0iZRE151..6F201404-201512

BLACK,TRIM1#

main33504-02141-E0iADE150..GEN;ZRE152..RHD..6F..N..GEN201002-201006

SHIFT LEVER & KNOB-URETHANE,ASH BROWN,TRIM4#

main33504-02150-B1iADE150200707-201001

DK.GRAY,TRIM1#

sub33504-02151

main33504-02150-B1iADE150,NDE150,NRE150,ZRE15#..6F..(E,N)200710-201001

SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1#

sub33504-02151

main33504-02150-E0iADE150,NDE150,NRE150,ZRE15#..6F..(E,N)200707-201001

ASH BROWN,TRIM4#

sub33504-02151

main33504-02151-B1iNRE150..D..SA201006-201404

STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#

main33504-02151-B1iNRE150..D..SA201006-201401

DK.GRAY,TRIM1#,4#

main33504-02151-B1iNRE150..D..SA201002-201404

SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1#

main33504-02151-B1iNRE150..D..SA201006-201404

STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1#

main33504-02151-B1iADE150,NDE150,NRE150,ZRE15#..6F..(E,N)201002-201006

DK.GRAY,TRIM1#

main33504-02151-E0iADE150,NDE150,NRE150,ZRE15#..6F..(E,N)201002-201006

ASH BROWN,TRIM4#

main33504-05081-C0iZRE151..6F201601

BLACK,TRIM1#

main33504-12380-B0iNDE150,ZRE151,ZZE150..5F..D200707-200902

DK.GRAY,TRIM1#

sub33504-12380

main33504-12460-B0iZRE151..5FS..D200710-200902

SHIFT LEVER & KNOB-LEATHER,SPORT TYPE,DK.GRAY,TRIM1#

sub33504-72020

main33504-12460-B0iZRE151..5FS..D200710-201006

SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1#

sub33504-72020

main33504-12460-B0iNDE150,ZRE15#..(4FC,6FS)..N200707-201006

DK.GRAY,TRIM1#

sub33504-72020

main33504-12460-E0iNDE150,ZRE15#..(4FC,5FS)..N200707-201006

ASH BROWN,TRIM4#

sub33504-72020

main33504-12500-B1iZRE151,152..4FC..D201006-201404

SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1#

sub33504-12500

main33504-12500-B1iNDE150,ZRE15#..(4FC,6FS)..N201006-201401

DK.GRAY,TRIM1#,4#

sub33504-12500

main33504-42020-B0iZRE152..RHD..4FC..N..GEN200710-201006

SHIFT LEVER & KNOB-URETHANE,DK.GRAY,TRIM1#

sub33504-58030

main33504-42020-B0iZRE152..RHD..4FC..N..GEN200710-201404

DK.GRAY,TRIM1#

sub33504-58030

main33504-42020-B0iZRE152..RHD..4FC..N201006-201401

SHIFT LEVER & KNOB-URETHANE,DK.GRAY,TRIM1#,4#

sub33504-58030

main33504-42020-E0iZRE152..RHD..4FC..N..GEN200710-201006

SHIFT LEVER & KNOB-URETHANE,ASH BROWN,TRIM4#

sub33504-58030

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-52050iNDE150,ZRE15#,ZZE150..5F,6F200707-200902

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-12060iNDE150..5F200710-200902

main33524-52050iZRE15#..5F,6F200707-200902

main33524-52060iZZE150200707-200902

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-52011iNDE150,ZRE15#,ZZE150..5F,6F200707-200902

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12A40iNDE150,ZRE151,ZZE150..LHD..5F200710-200902

main33530-12A50iZRE151,ZZE150..RHD..5F200707-200902

main33530-12A60iADE150,ZRE152..LHD..6F200710-200803

sub33530-12A61

main33530-12A61iADE150..GEN200804-201404

main33530-12A70iADE150,ZRE152..RHD..6F200707-200802

sub33530-12A71

main33530-12A71iADE150,NRE150,ZRE15#..RHD..6F200803-201404

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-17010iNDE150,ZRE15#,ZZE150..5F,6F200707-200902

33534BELLCRANK, SELECTING

main33534-12120iZRE15#,ZZE150..5F,6F200707-200902

main33534-12130iNDE150..5F200710-200902

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iNDE150,ZRE15#,ZZE150..5F,6F200707-200902

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iADE150200707-201006

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-20010iADE150200707-201401

NO.2

main33557-32010iNDE150,ZRE15#,ZZE150..5F,6F200707-200902

main33557-33010iADE150200707-201401

NO.1

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iNDE150,ZRE15#,ZZE150..5F,6F200707-200902

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iNDE150,ZRE15#,ZZE150..5F,6F200707-201006

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-12070iZRE15#,ZZE150..5F,6F200707-200902

main33590-12080iNDE150..5F200710-200902

main33590-20040iADE150200707-201401

33590GBUSH (FOR SELECTING BELL CRANK)

main33546-20020iNDE150,ZRE15#,ZZE150..5F,6F200707-200902

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-12B80iZZE150200707-200902

main33820-12B90iZRE151..5F200707-200902

main33820-12C00iNDE150..5F200710-200902

main33820-12C10iZRE152..6F200707-200902

main33820-12C20iADE150200707-201401

main33820-12C30iZRE151..4FC200707-201404

main33820-12E60iNRE150200902-201401

main33820-12E70iZRE152..6F;ZRE151..6F..N;ZRE151..RHD..6F..D..GEN200902-201404

main33820-12F50iZRE153..6F201010-201401

main33820-20A80iZRE153..4FC201010-201401

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12280iZRE152..4FC200707-201404

main33823-12320iZRE153..4FC201010-201401

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iZRE151..4FC201404

(J)

main90119-08C60iZRE151..6F201010-201508

main90119-08C60iZRE151..6F201508

(J)

main90119-08C60iNDE150,NRE150,ZRE15#..6F200902-201404

*201,*202

main90119-W0016iZRE151..4FC201404

(L)

sub90119-08026

main90119-W0255iZRE151..6F201508

(L)

main91611-B0816iZRE152,153..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N200707-201404

main91611-G0820iADE150200707-201401

main91612-61030iNDE150,ZRE15#,ZZE150..5F,6F200707-200902

9011908C59

main90119-08C59

90119W0035

main90119-W0035

90170W0001

main90170-W0001

9017906178

main90179-06178

9017908025

main90179-08025

9046814016

main90468-14016

9046814017

main90468-14017

9167180616

main91671-80616

9413060800

main94130-60800

9453100800

main94531-00800

29 parts on this diagram · 9 diagrams in section
