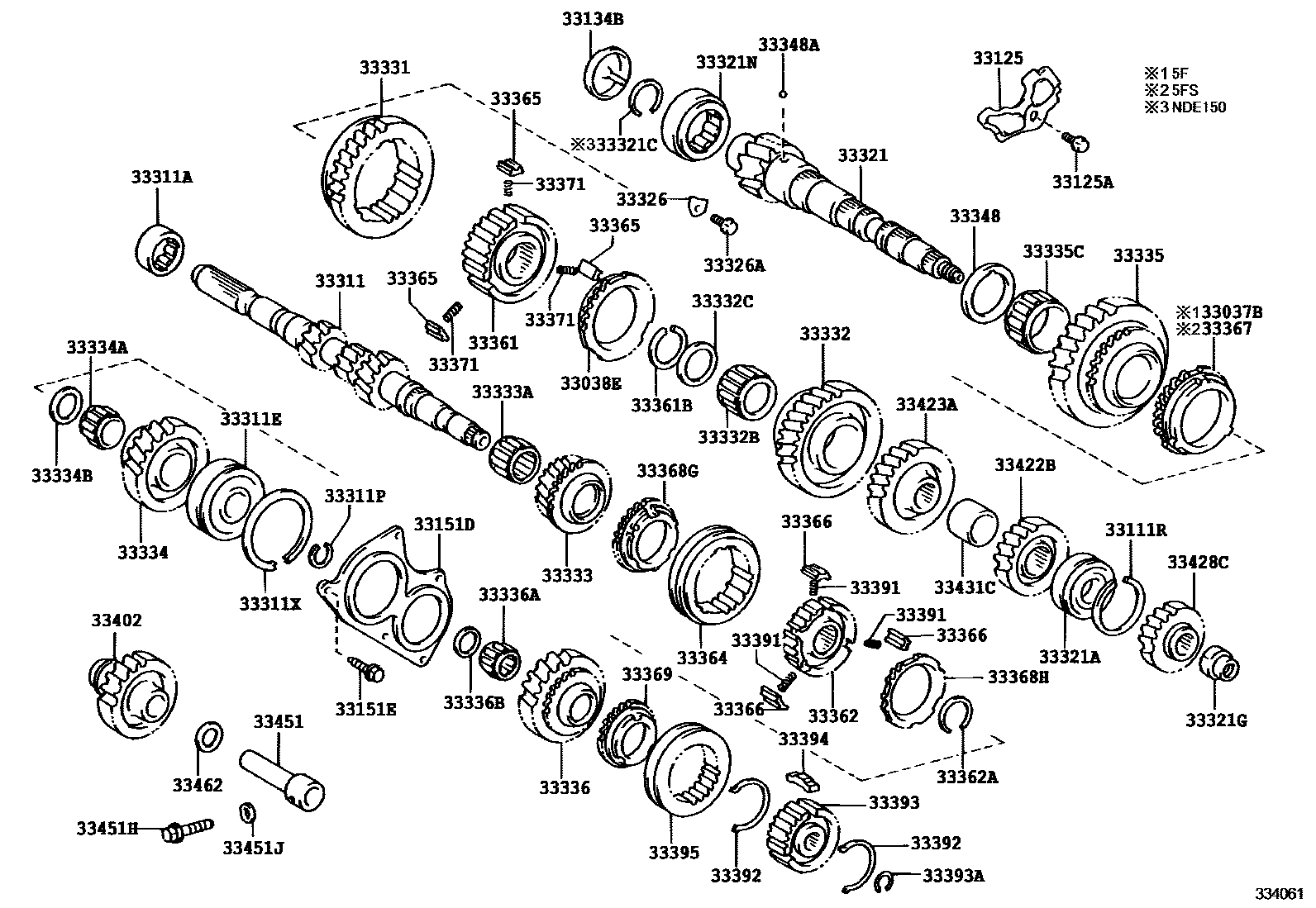

TRANSMISSION GEAR (MTM)
33038ERING SET, SYNCHRONIZER, NO.2
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
33134BCOVER, OUTPUT SHAFT(MTM)
*202
*201
*201,*202
*202
33151DRETAINER, BEARING, REAR(MTM)
33151EBOLT(FOR REAR BEARING RETAINER)
33311SHAFT, INPUT
sub33311-05031
sub33311-20202
sub33311-20231
sub33311-20232
sub33311-20241
sub33311-20271
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
sub90363-25048
sub90363-25091
sub90363-25092
sub90363-28016
sub90363-32053
sub90363-35080
*202
sub90363-W0014
sub90363-W0014
sub90363-W0016
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.29-2.34,MARK A
T=2.35-2.40,MARK B
T=2.41-2.46,MARK C
T=2.47-2.52,MARK D
T=2.53-2.58,MARK E
T=2.59-2.64,MARK F
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.95-1.99,MARK 1
T=2.00-2.04,MARK 2
T=2.05-2.09,MARK 3
T=2.10-2.14,MARK 4
T=2.15-2.19,MARK 5
T=2.20-2.24,MARK 6
T=1.85-1.89,MARK 7
T=1.90-1.94,MARK 8
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
33331GEAR, REVERSE
*202
(J)
*201
33332CSPACER (FOR 2ND GEAR BEARING)
33334BSPACER (FOR 4TH GEAR BEARING)
*201,*202
33336BSPACER (FOR 5TH GEAR BEARING)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
*202
(J)
*201
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK A
T=2.56-2.61,MARK B
T=2.62-2.67,MARK C
T=2.68-2.73,MARK D
T=2.74-2.79,MARK E
T=2.80-2.85,MARK F
T=2.25,MARK 1
T=2.30,MARK 2
T=2.35,MARK 3
T=2.40,MARK 4
T=2.45,MARK 5
T=2.50,MARK 6
33362HUB, TRANSMISSION CLUTCH, NO.2
*202
sub33362-05031
sub33362-05031
sub33362-05032
sub33362-12050
sub33362-12051
sub33362-20041
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0
T=2.36-2.41,MARK 1
T=2.42-2.47,MARK 2
T=2.48-2.53,MARK 3
T=2.54-2.59,MARK 4
T=2.60-2.65,MARK 5
T=2.25,MARK 1
T=2.30,MARK 2
T=2.35,MARK 3
T=2.40,MARK 4
T=2.45,MARK 5
T=2.50,MARK 6
T=2.27,MARK 0,*201,*202
T=2.27,MARK 0
T=2.32,MARK 1
T=2.32,MARK 1,*201,*202
T=2.37,MARK 2
T=2.37,MARK 2,*201,*202
T=2.42,MARK 3
T=2.42,MARK 3,*201,*202
T=2.47,MARK 4,*201,*202
T=2.47,MARK 4
T=2.52,MARK 5,*201,*202
T=2.52,MARK 5
T=2.57,MARK 6,*201,*202
T=2.57,MARK 6
T=2.62,MARK 7,*201,*202
T=2.62,MARK 7
T=2.30,MARK 0
T=2.36,MARK 1
T=2.42,MARK 2
T=2.48,MARK 3
T=2.54,MARK 4
T=2.60,MARK 5
33365KEY, SYNCHROMESH SHIFTING, NO.1
*202
*201
33366KEY, SYNCHROMESH SHIFTING, NO.2
*202
*201
33367RING, SYNCHRONIZER, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.25-2.30,MARK A
T=2.31-2.36,MARK B
T=2.37-2.42,MARK C
T=2.43-2.48,MARK D
T=2.49-2.54,MARK E
T=2.55-2.60,MARK F
T=2.61-2.66,MARK G
T=1.75,MARK A,NO.1
T=1.80,MARK B,NO.1
T=1.85,MARK C,NO.1
T=1.90,MARK D,NO.1
T=1.95,MARK E,NO.1
T=2.00,MARK F,NO.1
T=2.05,MARK G,NO.1
T=2.10,MARK H,NO.1
T=2.15,MARK J,NO.1
T=2.30,NO MARK,NO.2
33394KEY, SYNCHROMESH SHIFTING, NO.3
*202
*201
33402GEAR SUB-ASSY, REVERSE IDLER
*202
(J)
*201
33431CSPACER, OUTPUT GEAR
*201,*202
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
*201,*202
(J)
(L)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
*201
*202
63 parts on this diagram · 5 diagrams in section
