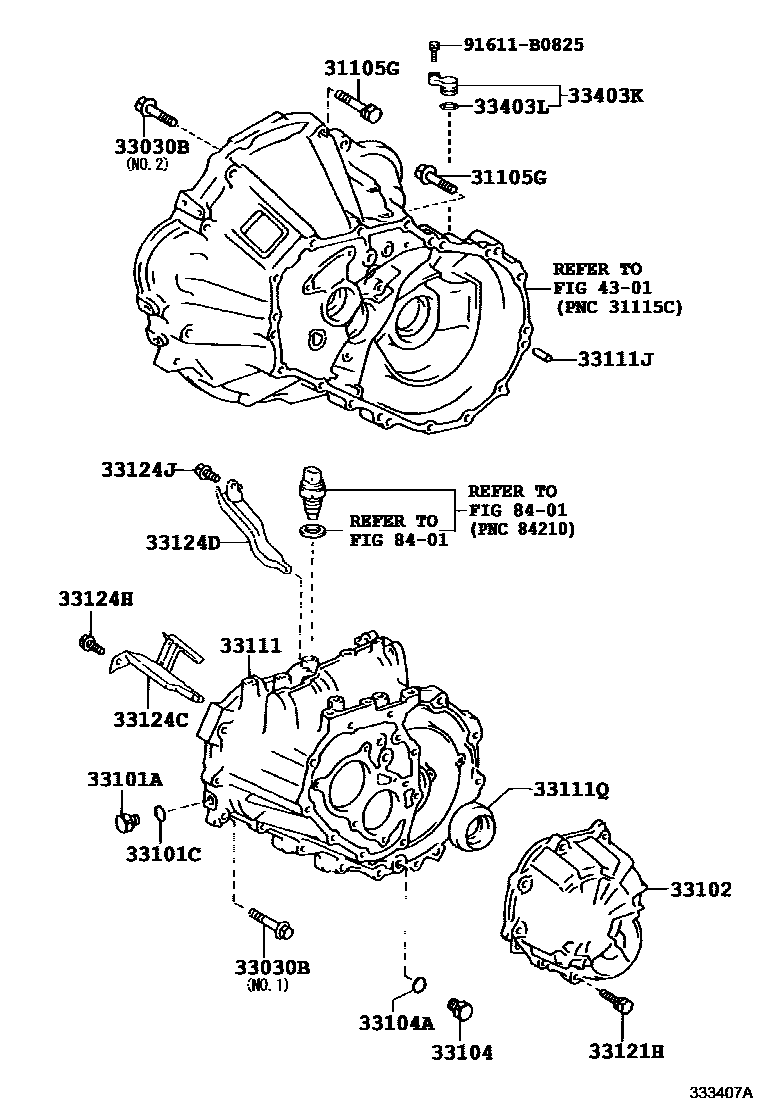

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX60-30,(L)
*10-1.25PX65-30,(L)
*12-1.25PX75-30
*12-1.25PX75-30,(J)
*12-1.25PX55-30,(J)
*12-1.25PX60-30,(J)
*12-1.25PX60-30
*12-1.25PX55-30,(L)
*12-1.25PX45-30,TYPE A:REFER ILLUST.
*12-1.25PX75-30,(L)
*12-1.25PX60-30,(L)
*10-1.25PX45-30
*10-1.25PX60-30
*10-1.25PX60-30,(J)
*10-1.25PX65-30,(J)
*10-1.25PX65-30
*10-1.25PX45-26
*10-1.25PX80-26
*12-1.25PX45-30,TYPE B:REFER ILLUST.
*12-1.25PX45-30
*12-1.25PX80-30
*10-1.25PX45-30
*10-1.25PX55-30,(J)
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
*8-1.25PX50-30,NO.1
*8-1.25PX45-27.5,NO.2
*8-1.25PX40-22,(L)
*8-1.25PX40-22,*201,*202
*8-1.25PX40-22
*8-1.25PX40-22,(J)
33101CASE SUB-ASSY, MANUAL TRANSMISSION
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
*202,NO.1,*201,NO.1
NO.1
*202,NO.2,*201,NO.2
NO.2
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
NO.2
*202,NO.2
NO.1
*202,NO.1,*201,NO.1
NO.2
*201,NO.2
*202,NO.2
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
L=23,OD=8,*201,*202
33111QSEAL, OIL(FOR TRANSMISSION CASE)
sub90311-34042
*201
sub90311-35064
sub90311-35075
sub90311-50046
sub90311-W0016
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
*202
*201
*201,*202
*202
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124HBOLT(FOR OIL RECEIVER PIPE)
33124JBOLT, W/WASHER
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
(L)
(J)
4301
8401
91611B0825
main91611-B0825
21 parts on this diagram · 7 diagrams in section
