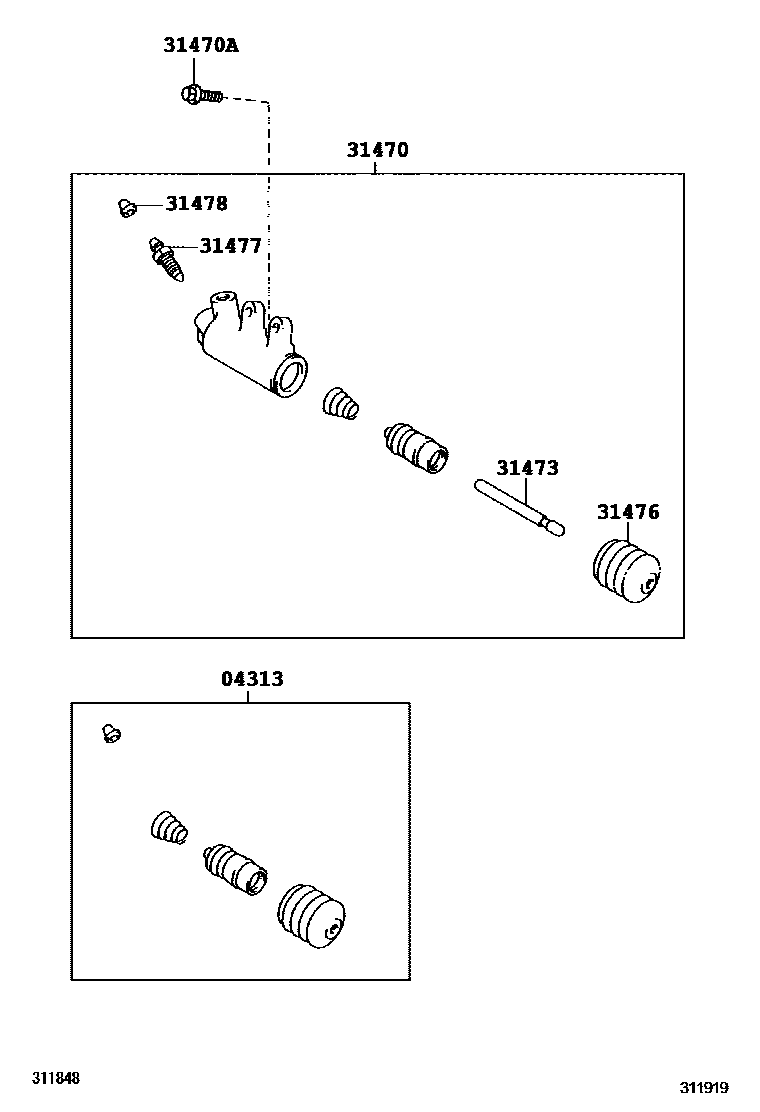

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17040iZZE150200707-200902

main04313-35060iNDE150..5F200710-200902

main04313-37030iZRE15#..5F,6F200707-200902

main04313-53010iADE150200707-201401

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12111iZZE150200707-200712

sub31470-12140

main31470-12140iZZE150200801-200902

main31470-12150iNDE150..5F200710-200712

sub31470-12180

main31470-12160iZRE15#..5F,6F200707-200902

sub31470-12161

main31470-12180iNDE150..5F200801-200902

main31470-12190iADE150200707-201401

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iADE150200707-201401

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iADE150200707-201401

main31473-22030iNDE150,ZRE15#..5F,6F200707-200902

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iADE150200707-201401

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNDE150,ZRE15#,ZZE150..5F,6F200707-201401

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iADE150,ZRE153..6F200902-201404

*201,*202

main31478-30010iNDE150,ZRE15#,ZZE150..5F,6F200707-201208

7 parts on this diagram · 6 diagrams in section
