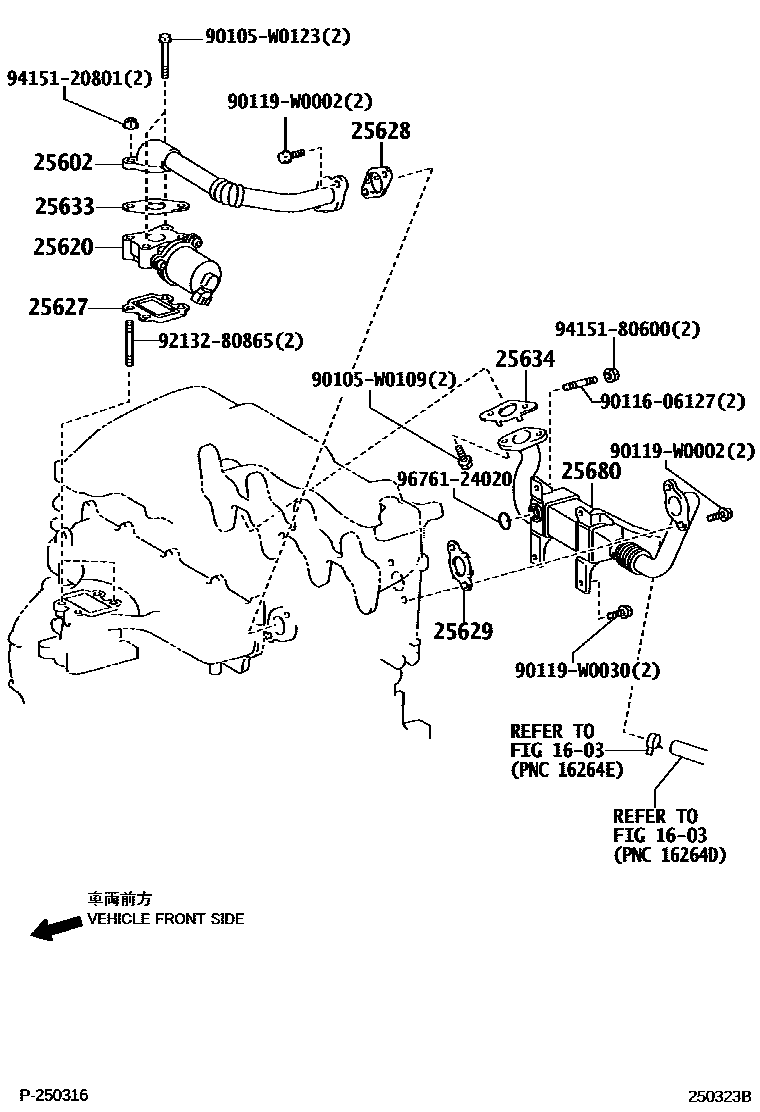

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1603

25602PIPE SUB-ASSY, EGR, NO.2

main25612-0R031i1ADFTV..ADE150201006

main25612-26030i1ADFTV..ADE150200707-200903

25620VALVE ASSY, EGR

main25620-0R021i1ADFTV..ADE150200707-200903

sub25620-0R022

main25620-33030i1NDTV..NDE150200710-200902

main25620-47020i1NRFE..NRE150200902-201006

25627GASKET, EGR VALVE

main25627-0R010i1ADFTV..ADE150200707-200903

main25627-0R020i1ADFTV..ADE150200903-201006

main25627-33010i1NDTV..NDE150201006-201306

25628GASKET, EGR INLET

main25628-0R010i1ADFTV..ADE150201006

TYPE A:REFER ILLUST.

main25628-26020i1ADFTV..ADE150200807-200903

main25628-33020i1NDTV..NDE150200710-200902

main25628-33040i1NDTV..NDE150201006-201306

25629GASKET, EGR VALVE ADAPTER

main25629-0R010i1ADFTV..ADE150200707-200903

25633GASKET, EGR VALVE

main25633-0R010i1ADFTV..ADE150200707-200903

main25633-0R020i1ADFTV..ADE150200903-201006

main25633-47010i1NRFE..NRE150200902-201006

25634GASKET, EGR PIPE

main25634-0R010i1ADFTV..ADE150201006

main25634-33010i1NDTV..NDE150201006-201306

main25634-47010i1NRFE..NRE150201006

25680COOLER ASSY, EGR

main25680-0R010i1ADFTV..ADE150200707-200805

sub16284-26040

main25680-0R011i1ADFTV..ADE150200805-200903

sub25680-26041

90105W0109

main90105-W0109

90105W0123

main90105-W0123

9011606127

main90116-06127

90119W0002

main90119-W0002

90119W0030

main90119-W0030

9213280865

main92132-80865

9415120801

main94151-20801

9415180600

main94151-80600

9676124020

main96761-24020

18 parts on this diagram · 5 diagrams in section
