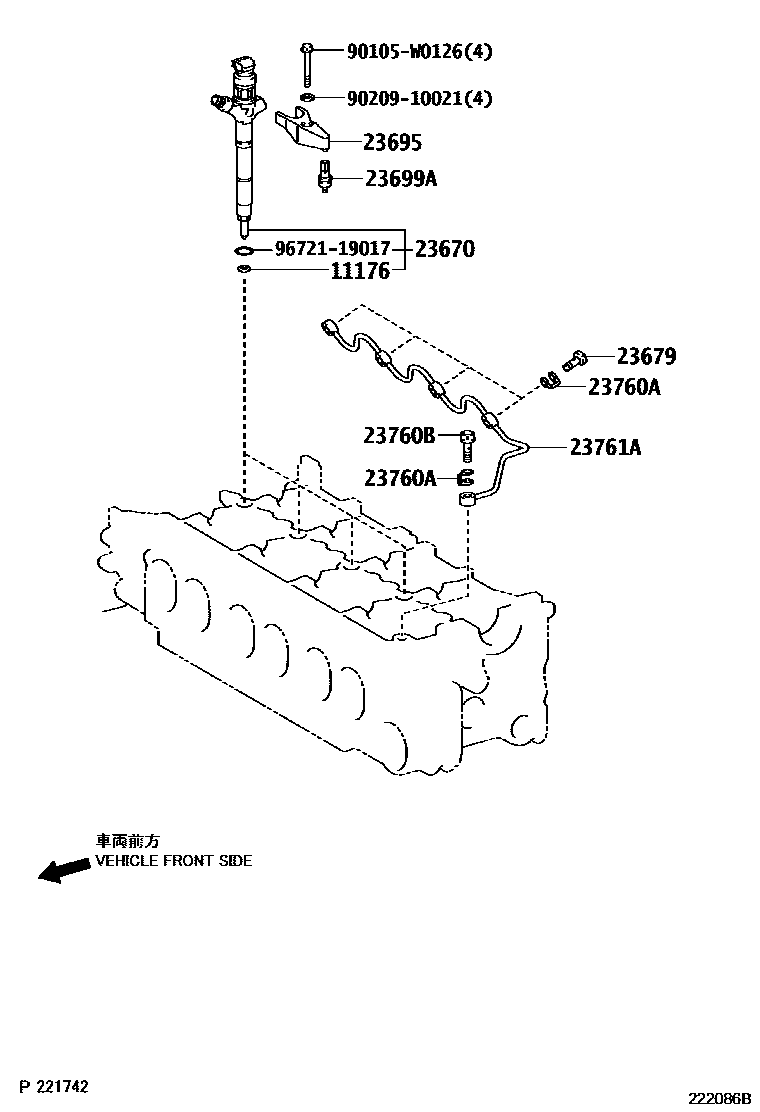

INJECTION NOZZLE
23670INJECTOR ASSY
sub23670-09280
(L),*251
(L),*132
*132
*251
sub23670-29116
sub23670-39415
(J),*132
(J),*251
23679SCREW, INJECTOR FOLLOW
23695CLAMP, NOZZLE HOLDER, NO.1
*132
*251
23760PIPE ASSY, NOZZLE LEAKAGE
(L),*251
*251
*132
(L),*132
(J),*251
(J),*132
23760AGASKET
23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)
90105W0126
main90105-W0126
9020910021
main90209-10021
9672119017
main96721-19017
12 parts on this diagram · 4 diagrams in section
