HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

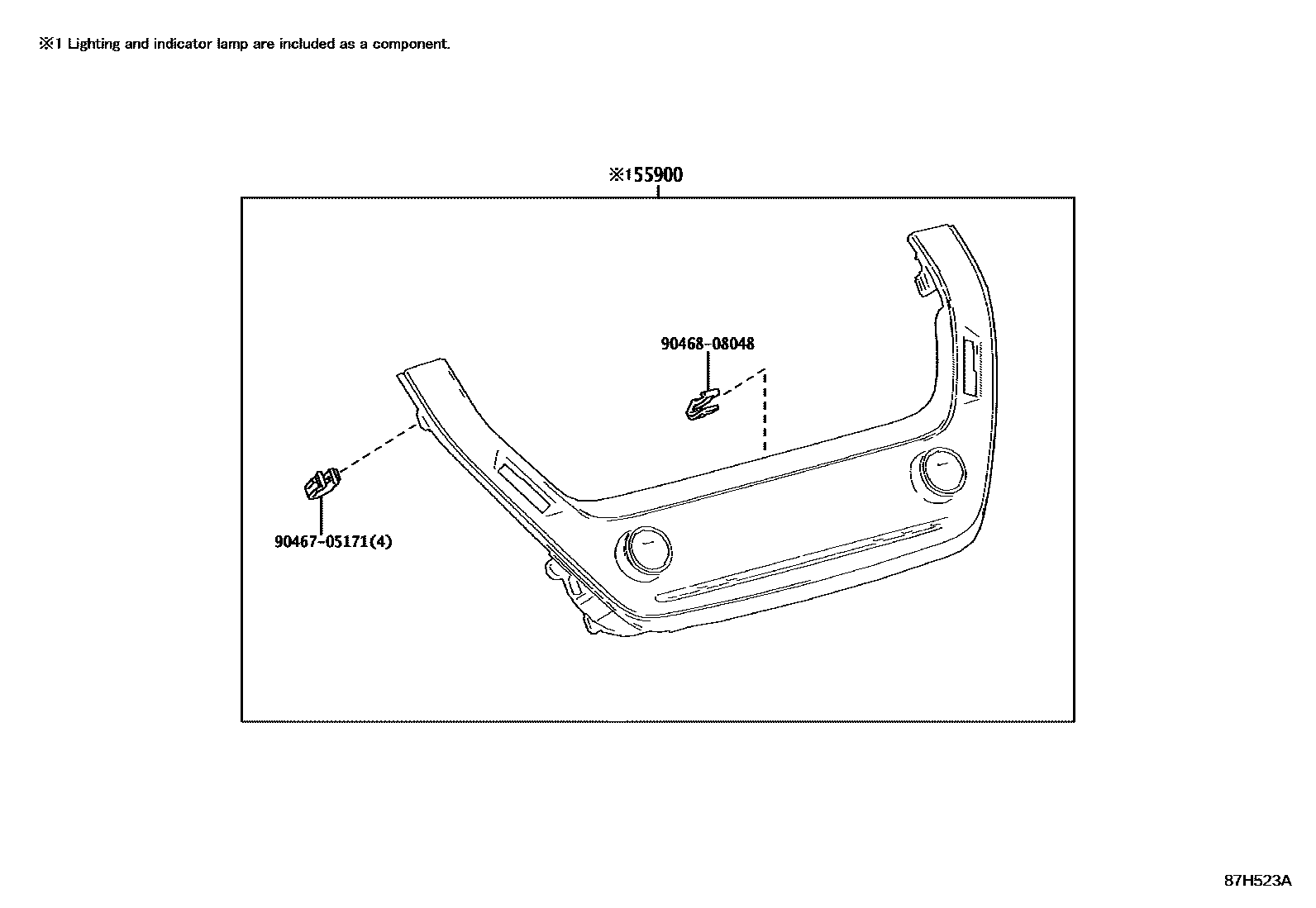

55900CONTROL ASSY, AIR CONDITIONER

main55900-02D80iZRE210..D..RUS201901-202301

main55900-02D90supersedes 55900-02P40iZRE210..D..RUS;MZEA11,ZRE210..N..EUR201901-202301

AIR CONDITIONER-MANUAL AIR CONDITIONER

main55900-02E30iZRE211..G;ZWE211..GCC,GEN201901

AIR CONDITIONER-AUTO AIR CONDITIONER

main55900-02E40supersedes 55900-02F60iMZEA11..RHD201901

AIR CONDITIONER-AUTO AIR CONDITIONER&COOLER REAR DUCT-WITH

main55900-02F30iZRE210..CVT..N..RUS201901-202301

AIR CONDITIONER-AUTO AIR CONDITIONER

main55900-02F60iMZEA11,ZRE211..RHD;ZRE210..RHD..6F..N;ZRE210..RHD..D..GEN201901

main55900-02M30iZWE219..RHD202301

main55900-02M40iZRE210..CVT..N..RUS202301

COOLER REAR DUCT-WITHOUT

main55900-02M50iMZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..RUS;ZWE219..LHD..(G,N)..(EUR,TUR)202301

main55900-02P30iMZEA11..CVT..N..EUR202301

AIR CONDITIONER-MANUAL AIR CONDITIONER&SEAT COVER MATERIAL-FABRIC

main55900-02P60iZWE219..GCC,GEN202301

AIR CONDITIONER-AUTO AIR CONDITIONER

main55900-02E10iZRE210..CVT..N..RUS201901-202301

AIR CONDITIONER-AUTO AIR CONDITIONER&COOLER REAR DUCT-WITHOUT

main55900-02E20iMZEA11..RHD201901

AIR CONDITIONER-AUTO AIR CONDITIONER

main55900-02E50iZRE210..RHD..EUR201901-202011

AIR CONDITIONER-COOLER LESS

main55900-02F10iZRE210..N..GCC;ZRE210..LHD..6F..N..GEN201901

AIR CONDITIONER-AUTO AIR CONDITIONER&COOLER REAR DUCT-WITHOUT

main55900-02F20supersedes 55900-02P50iZRE210..RHD..CVT..N202001-202301

AIR CONDITIONER-AUTO AIR CONDITIONER&COOLER REAR DUCT-WITHOUT

main55900-02K40iZRE210..LHD..6F..D..EUR201901-202011

LIGHT GRADE&OUTSIDE REAR VIEW MIRROR-*162

main55900-02K60iMZEA11,ZRE210..N..EUR201901-202301

OUTSIDE REAR VIEW MIRROR-*162

main55900-02K70supersedes 55900-02P50iZRE210..RHD..CVT..N202001-202301

AIR CONDITIONER-AUTO AIR CONDITIONER

main55900-02P70iZRE210..LHD..CVT..N..GEN202301

AIR CONDITIONER-AUTO AIR CONDITIONER&COOLER REAR DUCT-WITHOUT

9046705171

main90467-05171

9046808048

main90468-08048

3 parts on this diagram · 5 diagrams in section
