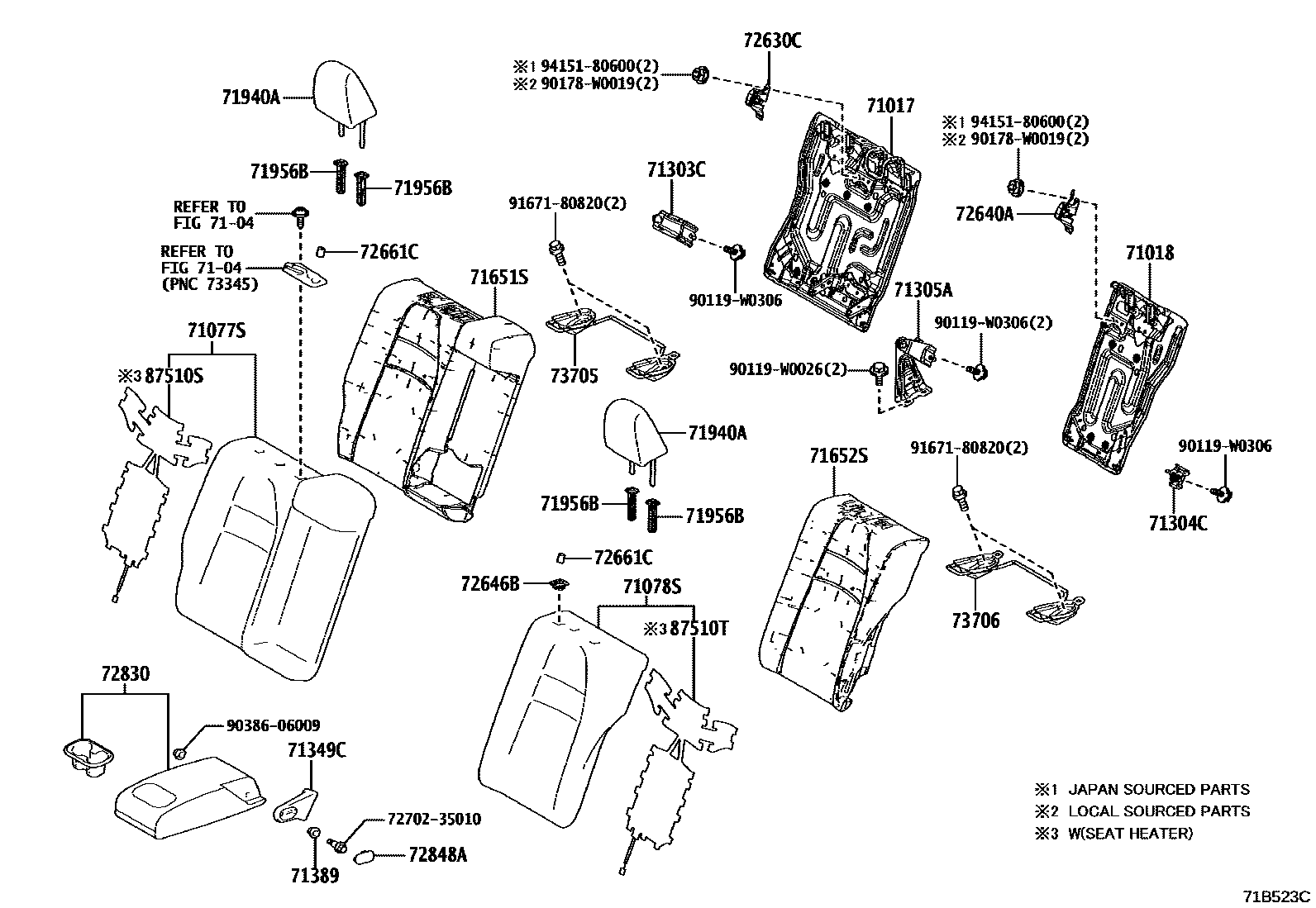

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
GEORGIA SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC
71018FRAME SUB-ASSY, REAR SEATBACK, LH
GEORGIA SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
FROMAGE,TRIM0#
BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
TURKEY SPEC& EURO-NCAP-WITHOUT&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE),FROMAGE,TRIM0#
BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
DARK GREY/LT.GRAY,TRIM1#
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WITH,LT.GRAY,TRIM1#
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WITH,LT.GRAY,TRIM1#
BLACK,TRIM2#
UKRAINE SPEC&SRS AIR BAG-WITH(*DRP & SIDE),FROMAGE,TRIM0#
UKRAINE SPEC&SRS AIR BAG-WITH(*DRP & SIDE),BLACK,TRIM2#
main71077-0ZS90-B2iZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211,ZWE219..LHD..(D,N)..(GCC,GEN,TUR)202301
DARK GREY/LT.GRAY,TRIM1#
main71077-0ZS90-C1iZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211,ZWE219..LHD..(D,N)..(GCC,GEN,TUR)202301
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LT.GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2#
UKRAINE SPEC&GR SPORT&SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP &SIDE & *CUSA & KNEE),CKD COLOR,TRIM2#
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR),FROMAGE,TRIM0#
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2#
SEAT LUMBAR SUPPORT-WITH,DARK GREY/LT.GRAY,TRIM1#
SEAT LUMBAR SUPPORT-WITH,BLACK,TRIM2#
SEAT COVER MATERIAL- FABRIC(MIDDLE GRADE),FROMAGE,TRIM0#
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER(MIDDLE GRADE)&SEAT LUMBAR SUPPORT-WITH,FROMAGE,TRIM0#
GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT,CKD COLOR,TRIM2#
UKRAINE SPEC&GR SPORT&SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP &SIDE & *CUSA)
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
FROMAGE,TRIM0#
BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
TURKEY SPEC& EURO-NCAP-WITHOUT&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE),FROMAGE,TRIM0#
BLACK,TRIM2#
FROMAGE,TRIM0#
SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2#
DARK GREY/LT.GRAY,TRIM1#
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WITH,LT.GRAY,TRIM1#
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WITH,LT.GRAY,TRIM1#
BLACK,TRIM2#
UKRAINE SPEC&SRS AIR BAG-WITH(*DRP & SIDE),FROMAGE,TRIM0#
UKRAINE SPEC&SRS AIR BAG-WITH(*DRP & SIDE),BLACK,TRIM2#
main71078-0ZB60-B2iZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211,ZWE219..LHD..(D,N)..(GCC,GEN,TUR)202301
DARK GREY/LT.GRAY,TRIM1#
main71078-0ZB60-C1iZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211,ZWE219..LHD..(D,N)..(GCC,GEN,TUR)202301
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LT.GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2#
UKRAINE SPEC&GR SPORT&SEAT LUMBAR SUPPORT-WITHOUT&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),CKD COLOR,TRIM2#
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR),FROMAGE,TRIM0#
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2#
SEAT LUMBAR SUPPORT-WITH,DARK GREY/LT.GRAY,TRIM1#
SEAT LUMBAR SUPPORT-WITH,BLACK,TRIM2#
SEAT COVER MATERIAL- FABRIC(MIDDLE GRADE),FROMAGE,TRIM0#
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER(MIDDLE GRADE)&SEAT LUMBAR SUPPORT-WITH,FROMAGE,TRIM0#
GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT,CKD COLOR,TRIM2#
GEORGIA SPEC&GR SPORT&SEAT LUMBAR SUPPORT-WITHOUT&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-02080iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-02340iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
71349CCOVER, REAR SEATBACK HINGE
BLACK,TRIM2#
ORCHID BROWN,TRIM0#
71389SPACER, CENTER SEAT HINGE
main71389-02010iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202301
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71940AHEADREST ASSY, REAR SEAT
FROMAGE,TRIM0#
BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
main71940-02U40-B0×2iZWE219..N;ZRE210..N..EUR;ZWE219..D..TUR;MZEA11..6F..TUR;MZEA11..6F..N..EUR;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..CVT..(D,N)202309
LT.GRAY,TRIM1#
main71940-02U40-C1×2iZWE219..N;ZRE210..N..EUR;ZWE219..D..TUR;MZEA11..6F..TUR;MZEA11..6F..N..EUR;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..CVT..(D,N)202309
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WITH,LT.GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2#
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER(MIDDLE GRADE)&SEAT LUMBAR SUPPORT-WITH,FROMAGE,TRIM0#
UKRAINE SPEC&GR SPORT&SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP &SIDE & *CUSA & KNEE),CKD COLOR,TRIM2#
SEAT COVER MATERIAL- FABRIC(MIDDLE GRADE),FROMAGE,TRIM0#
GR SPORT
UKRAINE SPEC&GR SPORT&SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP &SIDE & *CUSA)
71956BSUPPORT, REAR SEAT HEADREST
W(LOCK),FROMAGE,TRIM00
main71930-F4010-B0×2iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202309
W(LOCK),LT.GRAY,TRIM1#
main71930-F4010-C1iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;MZEA11,ZRE210..N..EUR;ZRE210,ZWE219..D..(RUS,TUR);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202301-202309
W(LOCK),BLACK,TRIM2#
W/O(LOCK),FROMAGE,TRIM0#
main71931-F4010-B0×2iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202309
W/O(LOCK),LT.GRAY,TRIM1#
W/O(LOCK),BLACK,TRIM00,2#
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72646BGROMMET, REAR SEATBACK STOP BUTTON
BLACK,TRIM0#,1#,2#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
BLACK,TRIM0#,2#
72830ARMREST ASSY, REAR SEAT, CENTER
DARK GRAY,TRIM2#
ORCHID BROWN,TRIM0#
SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2#
ORCHID BROWN,TRIM0#
BLACK,TRIM2#
SEAT COVER MATERIAL- LEATHER&SEAT LUMBAR SUPPORT-WITH&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR),ORCHID BROWN,TRIM0#
main72830-02N70-C0iZWE219..N;ZRE210..N..EUR;ZWE219..D..TUR;MZEA11..6F..TUR;MZEA11..6F..N..EUR;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..CVT..(D,N)202301
BLACK,TRIM1#,2#
HIGH GRADE PACKAGE&SEAT LUMBAR SUPPORT-WITH,BLACK,TRIM2#
GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT,LT.GRAY,TRIM1#
UKRAINE SPEC&GR SPORT&SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP &SIDE & *CUSA & KNEE),CKD COLOR,TRIM2#
SEAT COVER MATERIAL- FABRIC(MIDDLE GRADE),ORCHID BROWN,TRIM0#
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER(MIDDLE GRADE)&SEAT LUMBAR SUPPORT-WITH,ORCHID BROWN,TRIM0#
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WITH,BLACK,TRIM20
UKRAINE SPEC&GR SPORT&SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP &SIDE & *CUSA)
72848ACAP, SEAT ARMREST, NO.1
BLACK,TRIM2#
ORCHID BROWN,TRIM0#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-02281iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-02121iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
87510SHEATER ASSY, SEAT
87510THEATER ASSY, SEAT
HIGH GRADE PACKAGE&SEAT LUMBAR SUPPORT-WITH
7270235010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-35010
90119W0026
main90119-W0026
90119W0306
main90119-W0306
90178W0019
main90178-W0019
9038606009
main90386-06009
9167180820
main91671-80820
9415180600
main94151-80600
31 parts on this diagram · 3 diagrams in section
