LOCK CYLINDER SET
69503CYLINDER SET, LOCK
WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&KEY PLATE-FOR SMART(2)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&KEY PLATE-FOR SMART(2)
KEY PLATE-WIRELESS KEY(2)
main89704-02D21supersedes 89704-02D41iZRE210..N..EUR;MZEA11..LHD..(D,N);ZRE210..6F..D..RUS;ZRE210..CVT..(D,N)..RUS202301
KEY PLATE-WIRELESS KEY(2)
KEY PLATE-WIRELESS KEY(2)
MOROCCO SPEC&KEY PLATE-WIRELESS KEY(2), MASTER KEY(1)
MOROCCO SPEC&KEY PLATE-WIRELESS KEY(2), MASTER KEY(1)
KEY PLATE-WIRELESS KEY(2), MASTER KEY(1)
KEY PLATE-WIRELESS KEY(2)
KEY PLATE-WIRELESS KEY(2)
KEY PLATE-WIRELESS KEY(2)
KEY PLATE-WIRELESS KEY(2), MASTER KEY(1)
69503AKEY, BLANK
MASTER KEY,W(*68),WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH
MASTER KEY,W(*68),KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH
BLANK KEY,W(*68),WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&KEY PLATE-FOR SMART(2)
69503BKEY, CUT
MASTER KEY,W(*68)
MASTER KEY,W(*68),KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH
MASTER KEY,W(*68)
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
main89072-02790×2supersedes 89072-02790iZRE210..CVT..N..RUS;MZEA11,ZRE210..RHD..EUR;MZEA11,ZRE21#..N..(EUR,GCC)201901
KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&KEY PLATE-FOR SMART(2)
89745CBATTERY, TRANSMITTER
CR2032
CR2450
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&KEY PLATE-FOR SMART(2)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&KEY PLATE-FOR SMART(2)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
JORDAN SPEC&KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH
JORDAN SPEC

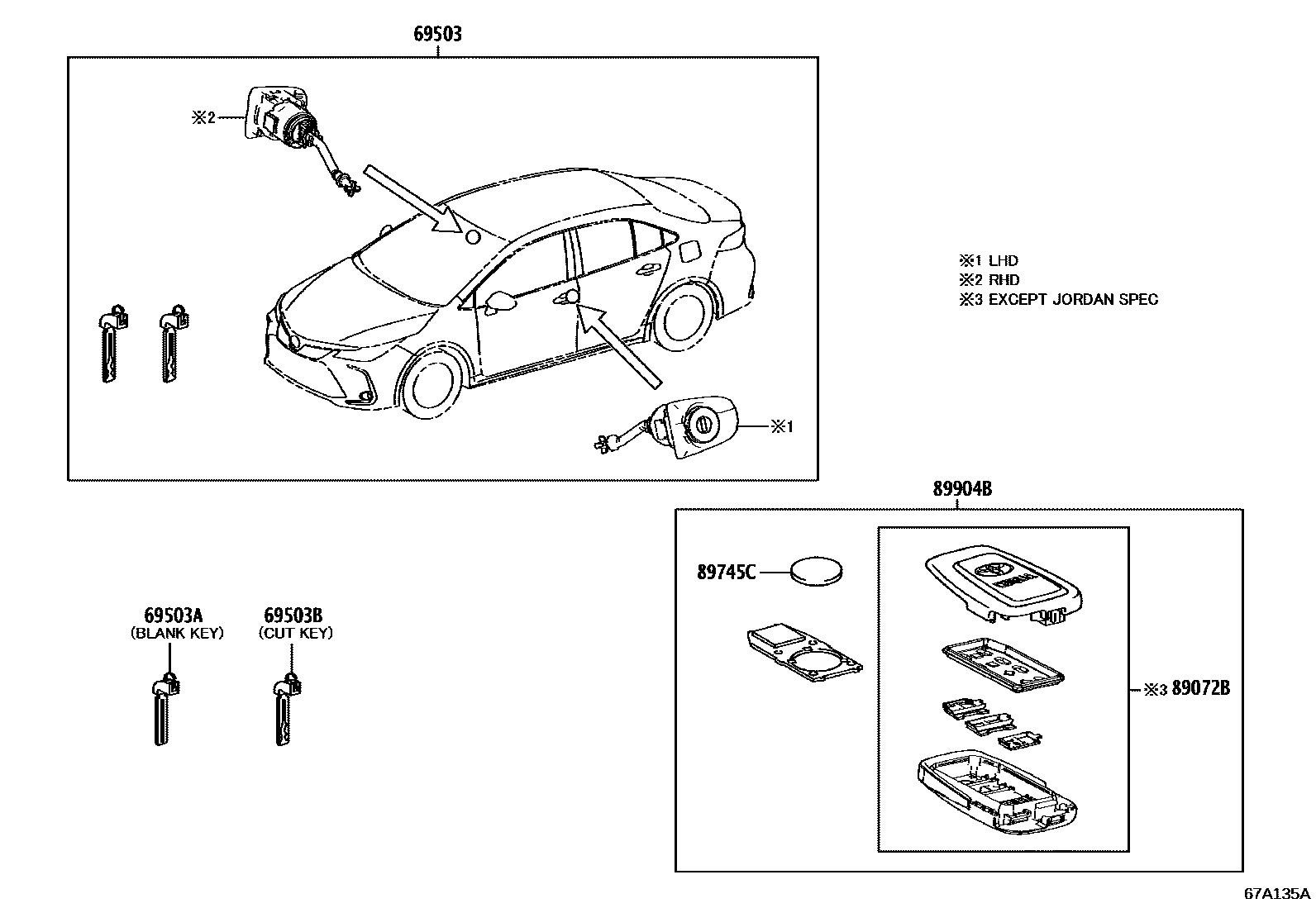

6 parts on this diagram · 3 diagrams in section
