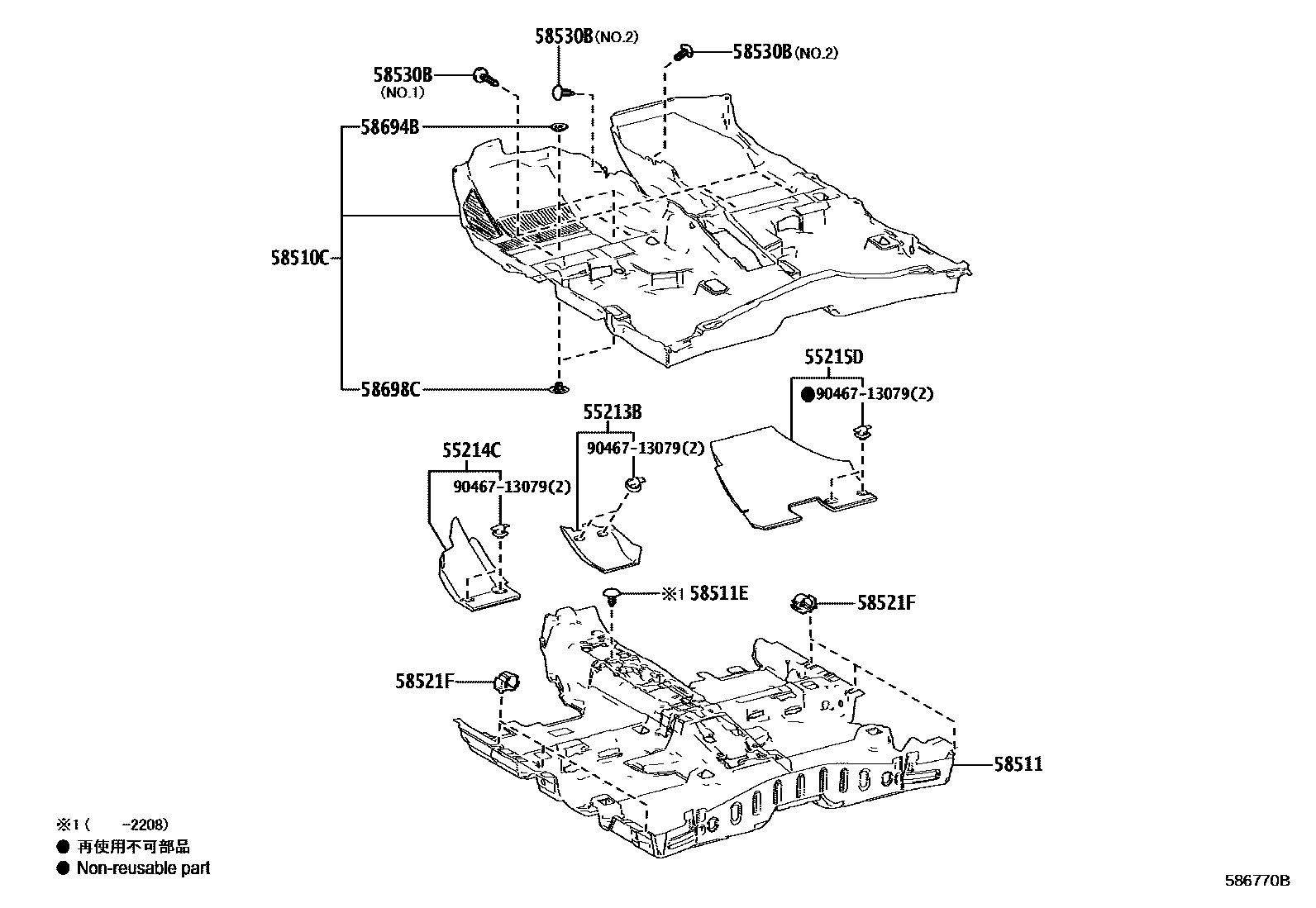

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR CARPET 0003 1FLOOR CARPET 0004 1FLOOR CARPET 0005 1FLOOR CARPET 0006 1FLOOR CARPET 0007 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-02300iZRE210..G..EUR201901-202301

main55213-02310iZRE210,ZWE219..RHD..CVT..N201901-202301

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-02250iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)201901-202301

main55214-02260iZRE210..RHD..CVT..EUR201901-202301

main55214-02270iZRE210..RHD..6F..EUR201901-202012

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-02160iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)201901-202301

main55215-02170iZRE210,ZWE219..RHD..CVT..N201901-202301

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-02P60-C0iZRE210..D..RUS;MZEA11..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)202301

BLACK,TRIM0#,1#,2#

main58510-02P60-C0iZRE210..G..EUR201901-202301

BLACK,TRIM0#,2#

main58510-02P70-C0iZWE219..D..TUR;ZWE219..LHD..(G,N)202301

BLACK,TRIM0#,1#,2#

main58510-02P70-C0iZWE219..D..TUR;ZWE219..LHD..(G,N)201901

BLACK,TRIM0#,2#

main58510-02P80-C0iZRE210..RHD..CVT..EUR201901-202301

BLACK,TRIM0#,2#

main58510-02P80-C0iZRE210..RHD..CVT..N202301

BLACK,TRIM0#,1#,2#

main58510-02P90-C0iMZEA11..RHD..6F;ZRE210..RHD..6F..GEN201901-202012

BLACK,TRIM0#,2#

main58510-02Q00-C0iZWE219..RHD202301

BLACK,TRIM0#,1#,2#

main58510-02Q00-C0iZWE211,213..RHD201901

BLACK,TRIM0#,2#

58511MAT, FLOOR, FRONT

main58511-02200iMZEA11..TUR;ZRE210..N..EUR;MZEA11..LHD..(D,N)..EUR202301

SUB COLD AREA SPEC

main58511-02200iZRE210..G..EUR201901-202301

COLD AREA SPEC-COLD AREA SPEC

main58511-02200iZRE210..G..EUR201901-202301

COLD AREA SPEC-SUB COLD AREA SPEC

main58511-02200iZRE210..CVT..RUS;ZRE210..6F..D..RUS202301

COLD AREA SPEC

main58511-02210iZRE210..RHD..CVT;ZRE210..CVT..N..EUR;ZRE210..6F..(D,N)..EUR201901-201912

LIGHT GRADE

main58511-02210iZRE210..N..EUR;ZRE210..CVT..N..GEN;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main58511-02210iZRE210..RHD..CVT;ZRE210..CVT..N..EUR;ZRE210..6F..(D,N)..EUR201901-201912

LIGHT GRADE&COLD AREA SPEC-SUB COLD AREA SPEC

main58511-02210iZRE210..RHD..CVT;ZRE210..CVT..N..EUR;ZRE210..6F..(D,N)..EUR201901-201912

LIGHT GRADE&COLD AREA SPEC-COLD AREA SPEC

main58511-02220iZWE219..EUR,GEN,TUR202301

SUB COLD AREA SPEC

main58511-02220iZWE219..LHD..(EUR,GEN,TUR)202301

COLD AREA SPEC

main58511-02220iZWE211,213..EUR,GEN201901

COLD AREA SPEC-SUB COLD AREA SPEC

main58511-02220iZWE211,213..LHD..EUR201901

COLD AREA SPEC-COLD AREA SPEC

main58511-02230iZWE211..LHD..N..EUR201901-201912

LIGHT GRADE

main58511-02230iZWE211..N..EUR201901-201912

LIGHT GRADE&COLD AREA SPEC-SUB COLD AREA SPEC

main58511-02230iZWE211..N..EUR201901-201912

LIGHT GRADE&COLD AREA SPEC-COLD AREA SPEC

main58511-02230iZWE211,213201901

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iZRE210..LHD..6F..D..EUR;ZRE210,ZWE211..LHD..N..EUR201901-201912

LIGHT GRADE,BLACK

sub90467-07042

sub90467-06175

main90467-07042-C4iZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR201901-201912

LIGHT GRADE&COLD AREA SPEC-COLD AREA SPEC,BLACK

sub90467-07042

sub90467-06175

main90467-07042-C4iZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR201901-201912

LIGHT GRADE&COLD AREA SPEC-SUB COLD AREA SPEC,BLACK

sub90467-07042

sub90467-06175

main90467-07042-C4iZRE210..G..EUR;ZRE210..RHD..EUR201901-202208

BLACK

sub90467-07042

sub90467-06175

58521FHOOK, FLOOR CARPET

main58521-02160iZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR201901-201912

LIGHT GRADE&COLD AREA SPEC-COLD AREA SPEC

main58521-02160iZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR201901-201912

LIGHT GRADE&COLD AREA SPEC-SUB COLD AREA SPEC

main58521-02160iZRE210..LHD..6F..D..EUR;ZRE210,ZWE211..LHD..N..EUR201901-201912

LIGHT GRADE

main58521-02160iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

58530BCLIP(FOR FRONT FLOOR CARPET)

main64726-10020-C2iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BLACK,TRIM0#,1#,2#,NO.1:REFER ILLUST.

main64726-10020-C2iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

BLACK,TRIM0#,2#,NO.1:REFER ILLUST.

main90467-W0006-C4iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901-202301

BLACK,TRIM0#,2#,NO.2:REFER ILLUST.

sub90467-W0006

main90467-W0006-C4iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BLACK,TRIM0#,1#,2#,NO.2:REFER ILLUST.

sub90467-W0006

58694BPLATE, MAT SET, UPPER

main58694-78010iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

58698CPLATE, MAT SET, LOWER

main58698-78010iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

9046713079

main90467-13079

11 parts on this diagram · 7 diagrams in section
