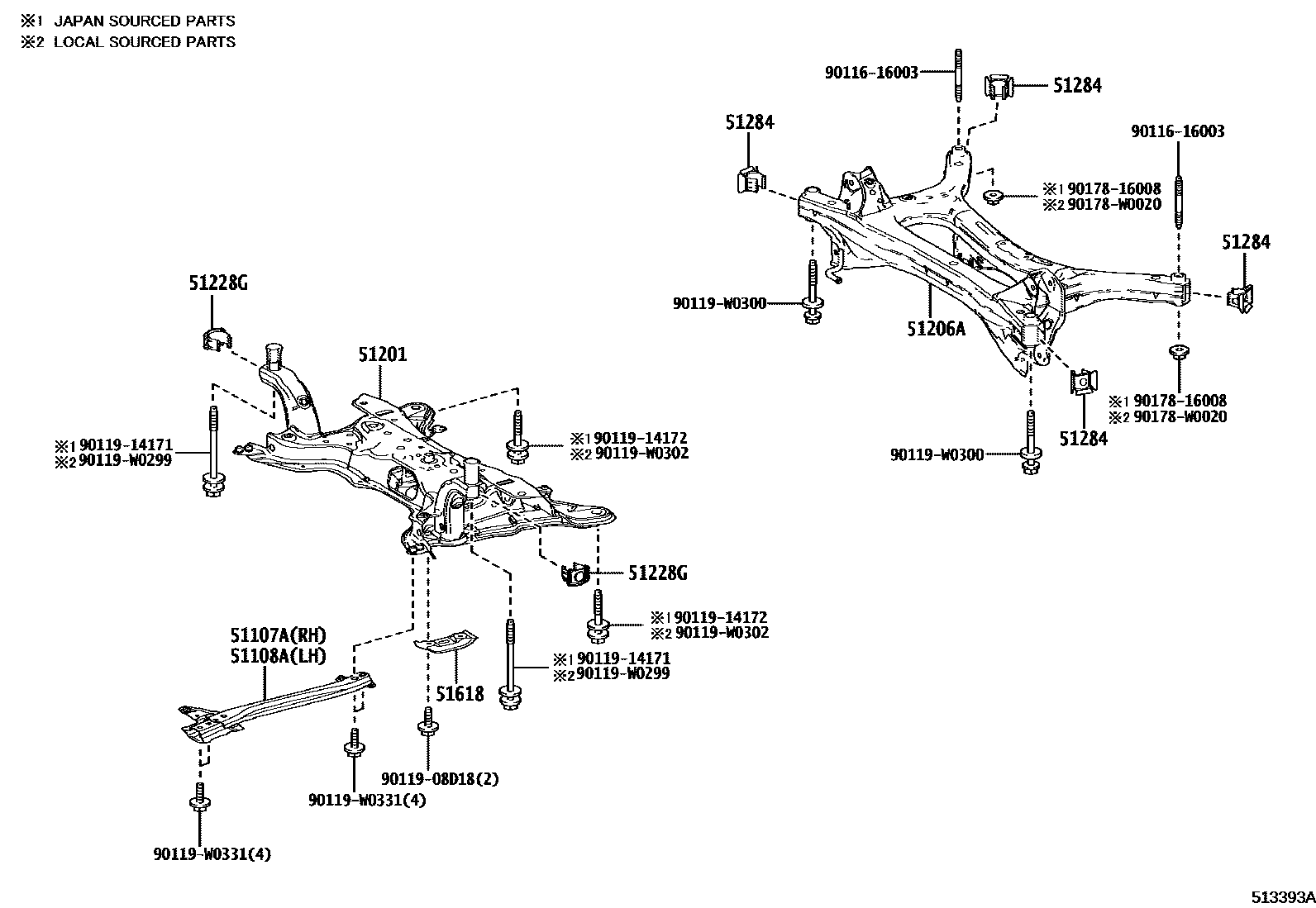

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION MEMBER 0002 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-02190supersedes 51107-02200iZRE210..N..EUR;ZWE219..EUR,GCC,GEN;ZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

WITHOUT(ROUGH ROAD AREA SPEC)

main51107-02200iZRE211..LHD..N;ZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

ROUGH ROAD AREA SPEC

main51107-02140iZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..(GCC,GEN);ZRE211,ZWE219..LHD..N..(GCC,GEN)202301

ENGINE UNDER COVER & PROTECTOR-WITH(STEEL)

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-02190supersedes 51108-02200iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

main51108-02200iZRE210..6F..N..RUS201901

ROUGH ROAD AREA SPEC

main51108-02140iZRE211..LHD..N;ZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

ENGINE UNDER COVER & PROTECTOR-WITH(STEEL)

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02300iZRE21#,ZWE211201901-201907

main51201-02301iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201908

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-02100iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-F4010×2iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-F4010×4iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-47010supersedes 51618-47010iZRE210..6F..N..RUS201901

ROUGH ROAD AREA SPEC

9011616003

main90116-16003

9011908D18

main90119-08D18

9011914171

main90119-14171

9011914172

main90119-14172

90119W0299

main90119-W0299

90119W0300

main90119-W0300

90119W0302

main90119-W0302

90119W0331

main90119-W0331

9017816008

main90178-16008

90178W0020

main90178-W0020

17 parts on this diagram · 2 diagrams in section
