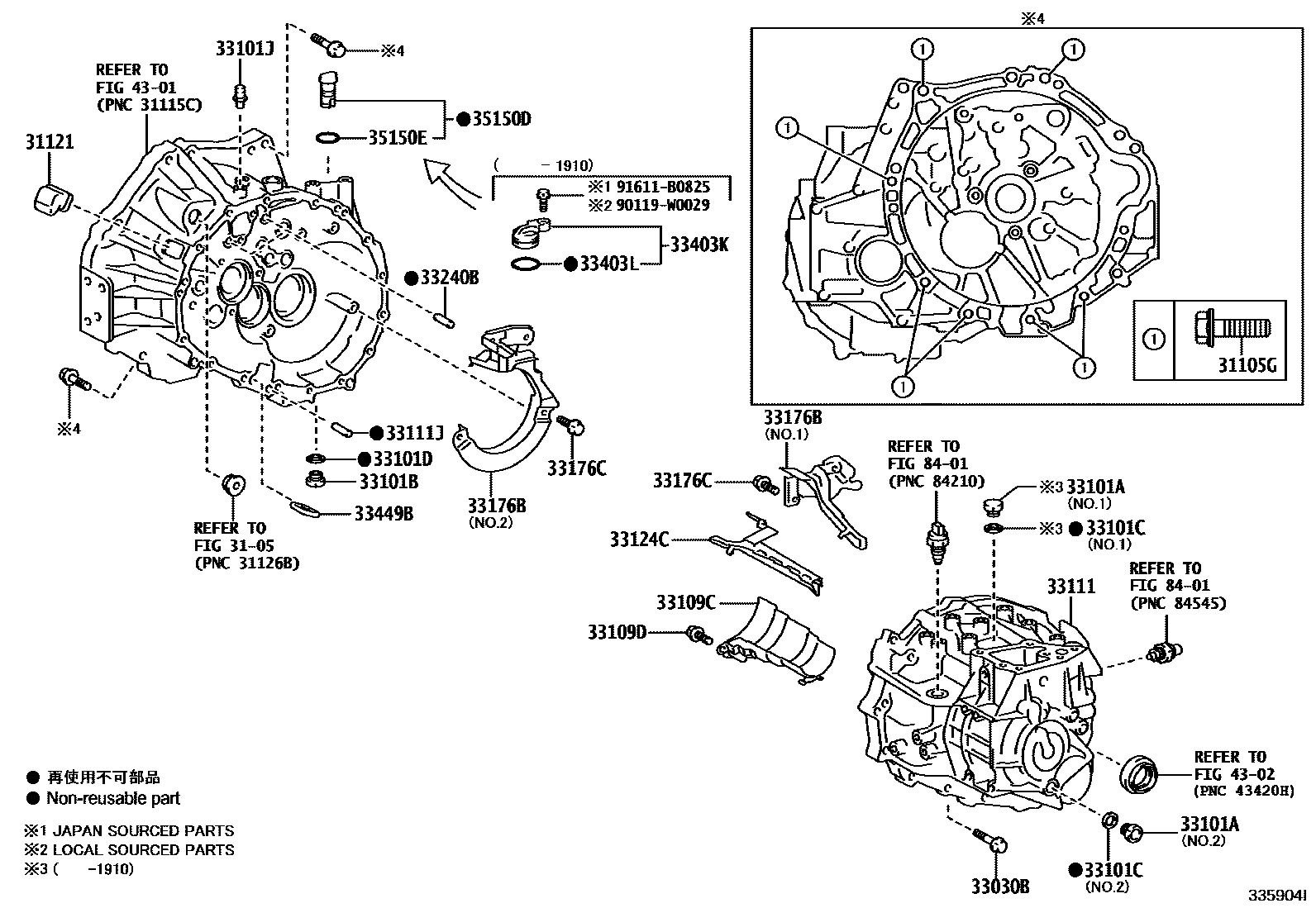

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
3105
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX45-36,(J),NO.1:REFER ILL.
*8-1.25PX35-22,(L),NO.2:REFER ILL.
*10-1.25PX45-36,(L),NO.1:REFER ILL.
main90119-W0155iZRE210..RHD..6F..GEN;ZRE210..LHD..6F..D..(EUR,GCC,GEN);ZRE210..LHD..6F..N..(GCC,GEN,RUS)201901-202301
*10-1.25PX45-30
*8-1.25PX35-22,(J),NO.2:REFER ILL.
*10-1.25PX45-30
31121COVER, CLUTCH HOUSING, NO.1
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX40-22,(L)
*8-1.25PX40-22,(J)
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
main12157-10010iMZEA11..6F..G;MZEA11..RHD..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..D..(EUR,GCC,GEN);ZRE210..LHD..6F..N..(GCC,GEN,RUS)201901-202301
33101JPLUG, BREATHER
33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
(L)
(J)
33111CASE, MANUAL TRANSMISSION
CRUISE CONTROL-WITHOUT&PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB),REFER33-07:PNC 33290
sub33111-02052
sub33290-02020
CRUISE CONTROL-WITH&PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB),REFER33-07:PNC33290
sub33111-02052
sub33290-02020
CRUISE CONTROL-WITH&PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB),REFER33-07:PNC33290
sub33111-02053
CRUISE CONTROL-WITH,REFER33-07:PNC 33290
sub33111-02053
CRUISE CONTROL-WITHOUT,REFER33-07:PNC 33290
sub33111-02053
CRUISE CONTROL-WITHOUT&PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB),REFER33-07:PNC 33290
sub33111-02053
REFER33-07:PNC 33290
CRUISE CONTROL-WITHOUT,REFER33-07:PNC 33290
CRUISE CONTROL-WITH,REFER33-07:PNC 33290
CRUISE CONTROL-WITH&PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB),REFER33-07:PNC33290
CRUISE CONTROL-WITHOUT&PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB),REFER33-07:PNC 33290
REFER33-07:PNC 33290
CRUISE CONTROL-WITH(HIGH SPEED ACC),REFER33-07:PNC 33290
CRUISE CONTROL-WITH(HIGH SPEED ACC),REFER33-07:PNC 33290
sub33111-05044
REFER33-07:PNC 33290
CRUISE CONTROL-WITH(HIGH SPEED ACC),REFER33-07:PNC 33290
CRUISE CONTROL-WITH(HIGH SPEED ACC)
CRUISE CONTROL-WITHOUT
CRUISE CONTROL-WITH
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
33124CPIPE, OIL RECEIVER, NO.1(MTM)
main33124-0D050iZRE210..RHD..6F..GEN;ZRE210..LHD..6F..D..(EUR,GCC,GEN);ZRE210..LHD..6F..N..(GCC,GEN,RUS)201901-202301
33176BSEPARATOR, TRANSMISSION OIL(MTM)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
(L)
(J)
33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
33449BMAGNET, TRANSMISSION
35150DPLUG ASSY, TRANSMISSION CASE
35150ERING, O (FOR TRANSMISSION CASE PLUG)
4301
4302
8401
90119W0029
main90119-W0029
91611B0825
main91611-B0825
27 parts on this diagram · 2 diagrams in section
