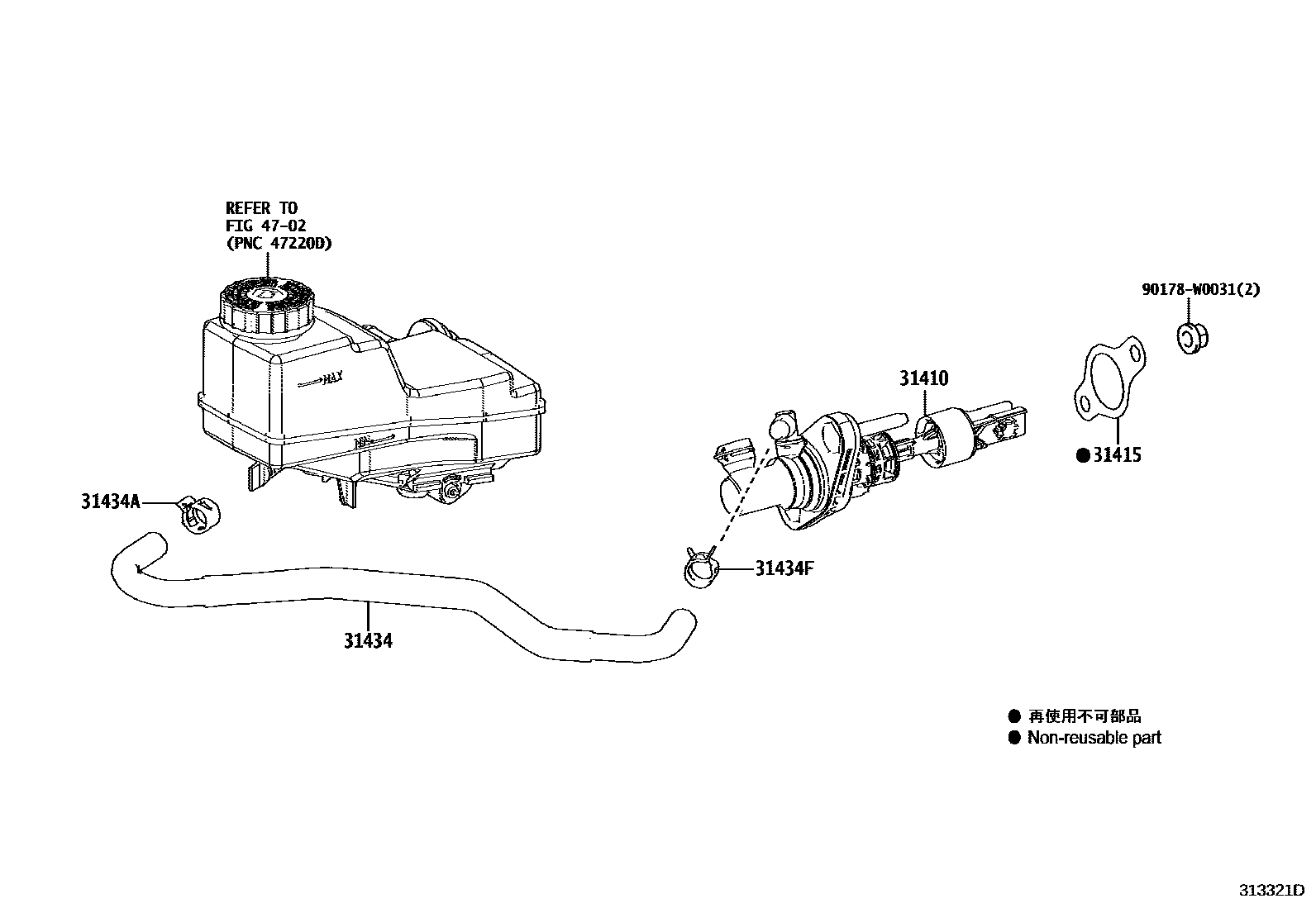

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-F4011iZRE210..6F..N..EUR;ZRE210..6F..D..RUS;MZEA11..LHD..6F..(D,N)201901-202301

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202301

31434TUBE, CLUTCH RESERVOIR

main31434-F4010iMZEA11..6F..G;ZRE210..LHD..6F..D..(EUR,GCC,GEN);ZRE210..LHD..6F..N..(GCC,GEN,RUS)201901-202301

main31434-F4020iMZEA11..RHD..6F;ZRE210..RHD..6F..GEN201901-202012

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96137-41501iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202301

31434FCLIP(FOR CLUTCH RESERVOIR HOSE NO.1)

main96138-41501iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202301

4702

90178W0031

main90178-W0031

7 parts on this diagram · 2 diagrams in section
