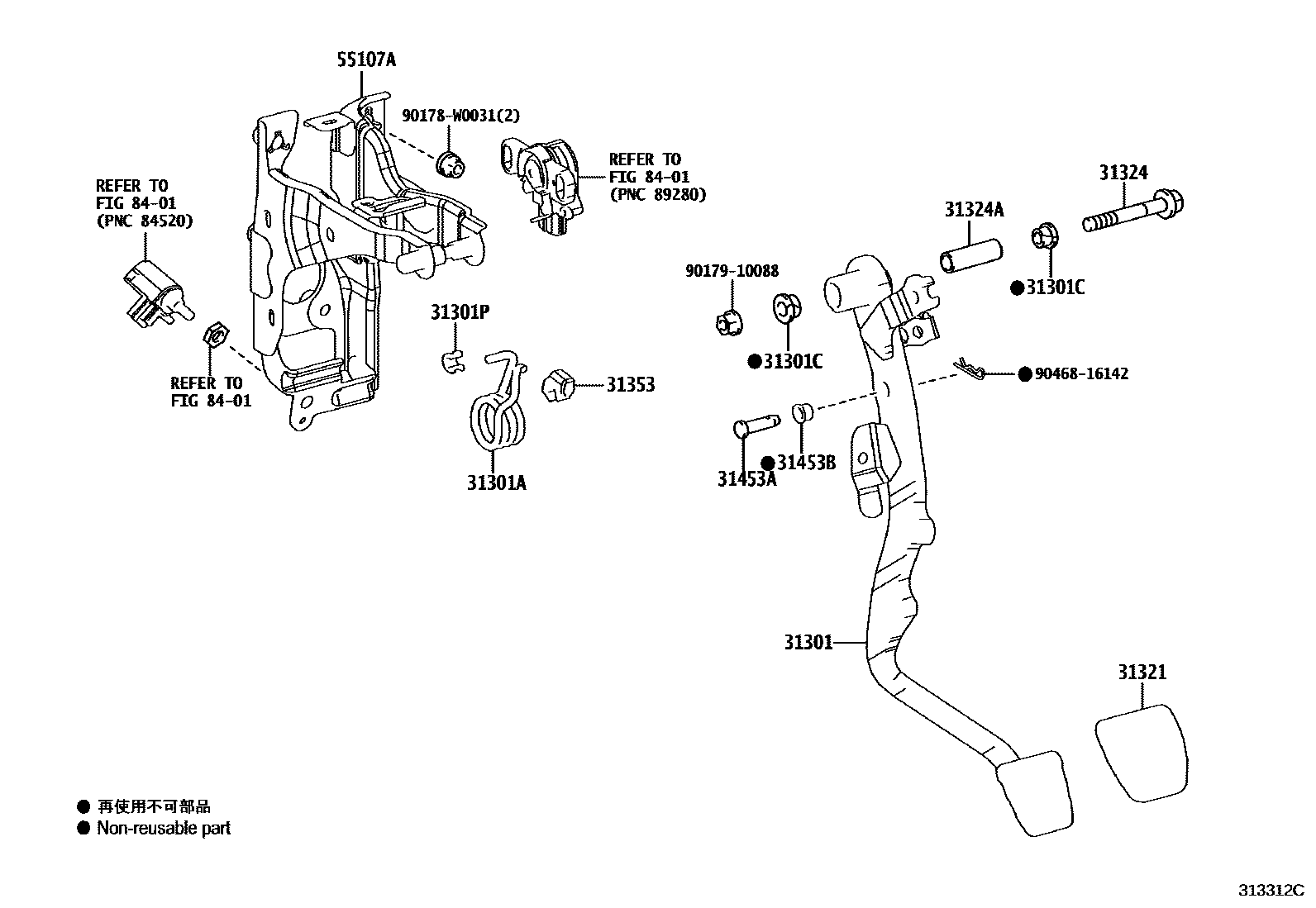

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1W(ELECTRIC PARKING BRAKE) 0002 1W/O(ELECTRIC PARKING BRAKE) 0003 1W(ELECTRIC PARKING BRAKE) 0004 1W/O(ELECTRIC PARKING BRAKE) 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02590iMZEA11..6F..G201901-202301

main31301-02600iMZEA11..RHD..6F201901-202012

main31301-02610iZRE210..6F..N..EUR;ZRE210..6F..D..RUS201901-202301

main31301-02610iZRE210..6F..N..EUR201901-202011

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

main31301-02660iZRE210..RHD..6F..GEN202001

main31301-02660iZRE210..RHD..6F..EUR201901-202011

LIGHT GRADE

31301ASPRING(FOR CLUTCH PEDAL)

main31394-02010iZRE210..6F..N..EUR;ZRE210..6F..D..RUS;MZEA11..LHD..6F..(D,N)202104-202301

main90949-03068iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202103

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202301

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202301

31321PAD, CLUTCH PEDAL

main31321-42010iMZEA11..6F..G;MZEA11..RHD..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..D..(EUR,GCC,GEN);ZRE210..LHD..6F..N..(GCC,GEN,RUS)201901-202301

31324SHAFT, CLUTCH PEDAL

main90105-10524iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202301

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202301

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202301

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-W0001iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202301

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202301

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02480iMZEA11,ZRE210..6F..N..EUR201901-202301

main55107-02510iMZEA11..RHD..6F201901-202012

main55107-02520iZRE210..LHD..6F..D..(EUR,GCC,GEN);ZRE210..LHD..6F..N..(GCC,GEN,RUS)201901-202301

main55107-02520iZRE210..6F..N..EUR201901-202011

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

main55107-02530iZRE210..RHD..6F..EUR201901-202011

LIGHT GRADE

main55107-02530iZRE210..RHD..6F..GEN202001

8401

90178W0031

main90178-W0031

9017910088

main90179-10088

9046816142

main90468-16142

15 parts on this diagram · 6 diagrams in section
