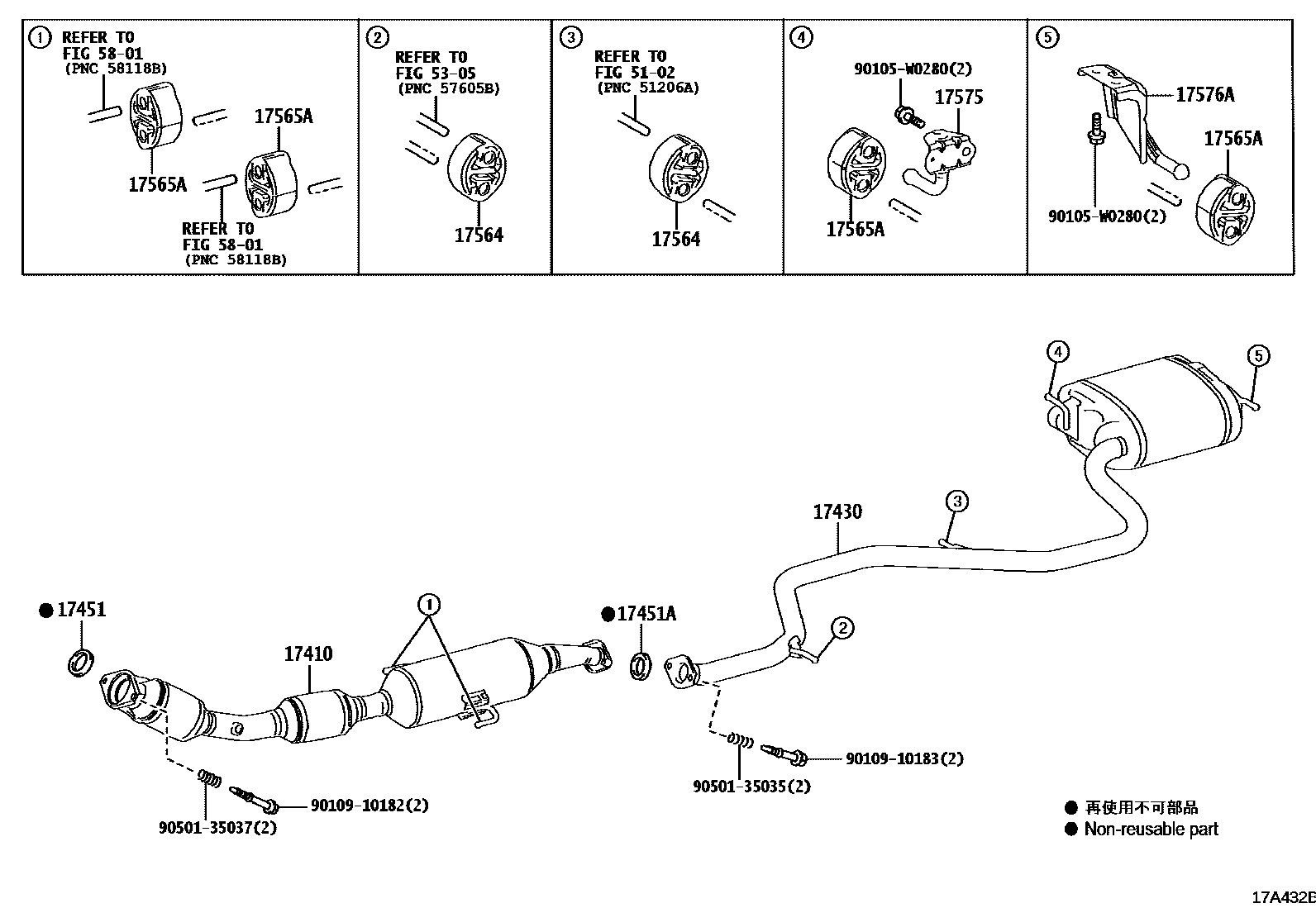

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/RT2RT3/Y
*114=TOYOTA/TL8/Y
*114=TOYOTA/RT2RT3/Y
*114=TOYOTA/TL8/Y
*114=TOYOTA/TL8/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&GEORGIA SPEC
*114=TOYOTA/TL8/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&MOLDOVA SPEC
*114=TOYOTA/TL8/Y
*114=TOYOTA/TL8/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&UKRAINE SPEC
*114=*713
*114=*713
*114=TOYOTA/TQ2/Y,MOLDOVA SPEC
*114=TOYOTA/TQ2/Y
*114=TOYOTA/TQ2/Y,UKRAINE SPEC
UKRAINE SPEC
MOLDOVA SPEC
*114=TOYOTA/L54/Y
17430PIPE ASSY, EXHAUST, TAIL
main17430-0T530i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
main17451-0J022i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)¥720201901-202301
17564SUPPORT,EXHAUST PIPE, NO.4
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-0J031i2ZRFXE..ZWE211,213;2ZRFE..ZRE211..RHD;1ZRFAE..ZRE210..LHD..D;M15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..RHD..CVT..D;1Z¥680201901-202301
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
main17576-0T050i1ZRFE..ZRE210..D..RUS;M15AFKS..MZEA11..LHD..(D,N);1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
5102
5305
5801
90105W0280
main90105-W0280
9010910182
9010910183
9050135035
9050135037
16 parts on this diagram · 3 diagrams in section
