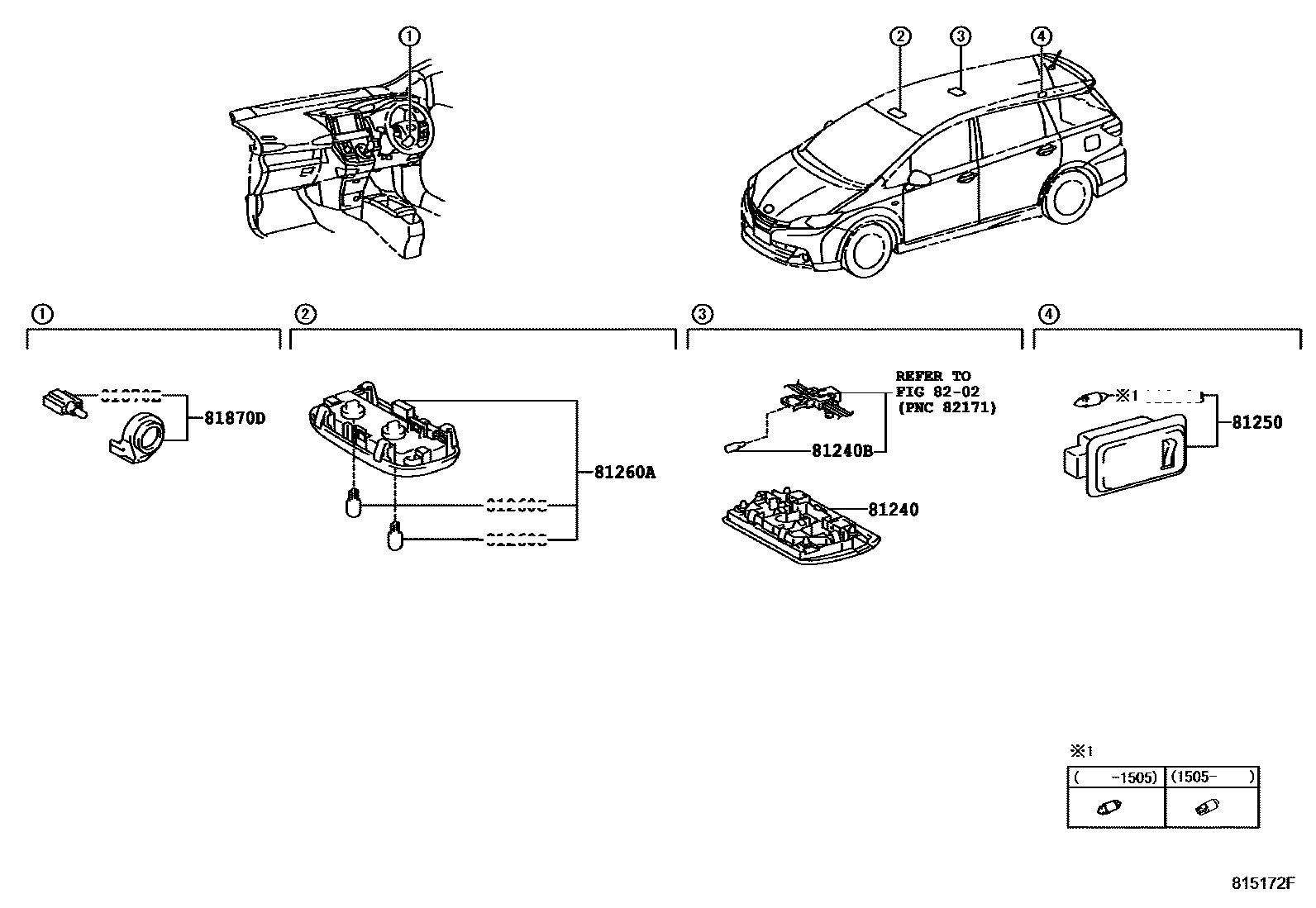

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-60060-B1iZGE2#201204-201711

GRAY,TRIM1#

sub81240-12100

main81240-60060-E1iZGE20201204-201711

GREGE,TRIM4#

sub81240-12100

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZGE21200909-201005

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iZGE21200909-201005

main81330-58010iZGE20201505

81250BBULB, ROOM LAMP, NO.2

main99132-12050iZGE20201505

12V 5W

main99132-13050iZGE21200909-201005

12V 5W

81260ALAMP ASSY, MAP

main81260-68010-B0iZGE2#..18S,18X,20X,20Z200909-201204

GRAY,TRIM1#

sub81260-68011

main81260-68010-E0iZGE20,21200909-201204

GREGE,TRIM4#

sub81260-68011

main81260-68030-B0supersedes 81260-68011-B0iZGE2#201204-201404

MOON ROOF-WITH,GRAY,TRIM1#

main81260-68030-E0supersedes 81260-68011-E0iZGE20201204-201404

MOON ROOF-WITH,GREGE,TRIM4#

main81260-68031-B0supersedes 81260-68011-B0iZGE2#201405-201711

MOON ROOF-WITH,GRAY,TRIM1#

main81260-68031-E0supersedes 81260-68011-E0iZGE20201405-201711

MOON ROOF-WITH,GREGE,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-11062×2iZGE21200909-201005

12V 8W

81870DLAMP ASSY, KEY CYLINDER

main81870-20060iZGE21200909-201005

81870EBULB, KEY CYLINDER LAMP

main90010-01022supersedes 90010-01022iZGE21200909-201005

14V1.4W,W(GREEN CAP)

8202

9 parts on this diagram · 1 diagram in section
