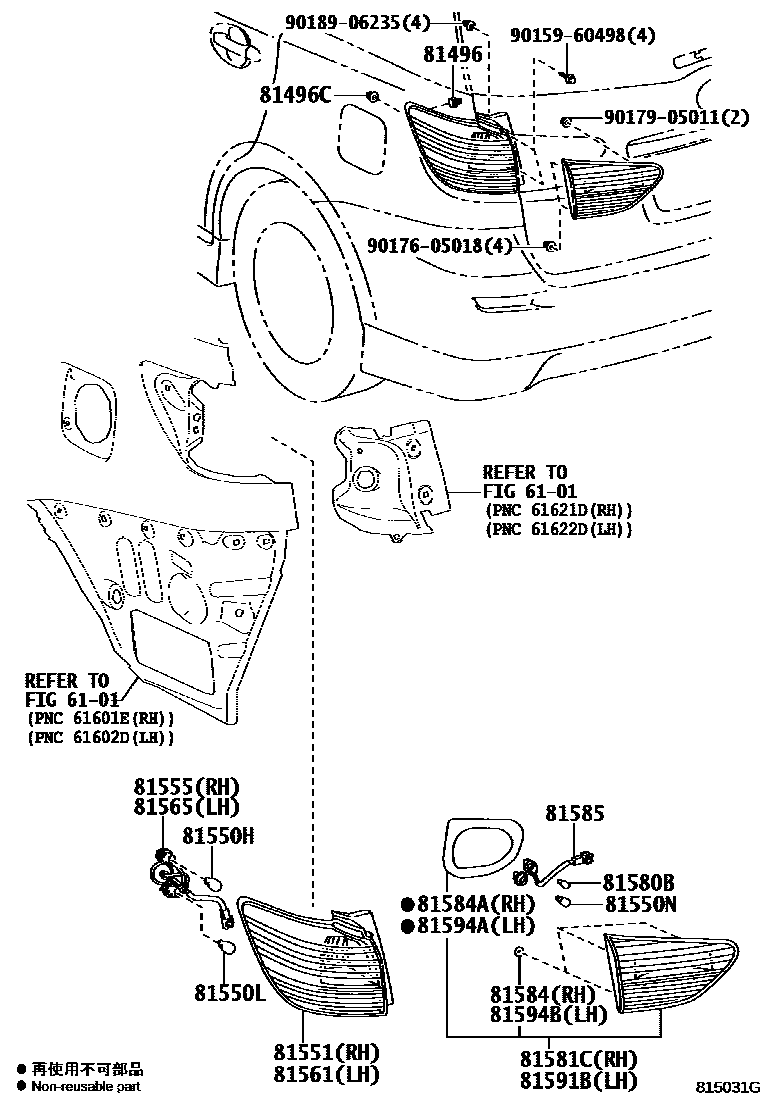

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iZGE21200909-201005

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iZGE21200909-201005

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iZGE21200909-201005

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iZGE21200909-201005

81550NBULB, BACK UP LAMP

main90981-11059×2iZGE21200909-201005

81551LENS, REAR COMBINATION LAMP, RH

main81551-68050iZGE21200909-201005

main81551-68060iZGE2#201204-201303

main81551-68061iZGE2#201303-201403

main81551-68062iZGE2#201403

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-68050iZGE21200909-201005

main81555-68060iZGE2#201204

81561LENS, REAR COMBINATION LAMP, LH

main81561-68050iZGE21200909-201005

main81561-68060iZGE2#201204-201303

main81561-68061iZGE2#201303-201403

main81561-68062iZGE2#201403

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-68050iZGE21200909-201005

main81555-68060iZGE2#201204

81580BBULB (FOR REAR LAMP)

main99132-12050×2iZGE21200909-201005

12V 5W

81581CLENS AND BODY, REAR LAMP, RH

main81581-68010iZGE21200909-201005

main81581-68020iZGE2#201204

81584PACKING, REAR LAMP RH

main81584-22040×3iZGE21200909-201005

81584AGASKET, REAR LAMP RH

main81584-68010iZGE21200909-201005

main81584-68020iZGE2#201204

81585SOCKET & WIRE, REAR LAMP

main81585-68010×2iZGE21200909-201005

main81585-68020×2iZGE2#201204

81591BLENS AND BODY, REAR LAMP, LH

main81591-68010iZGE21200909-201005

main81591-68020iZGE2#201204

81594AGASKET, REAR LAMP LH

main81594-68010iZGE21200909-201005

main81594-68020iZGE2#201204

81594BPACKING, REAR LAMP LH

main81584-22040×3iZGE21200909-201005

9015960498

main90159-60498

9017605018

main90176-05018

9017905011

main90179-05011

9018906235

main90189-06235

22 parts on this diagram · 2 diagrams in section
