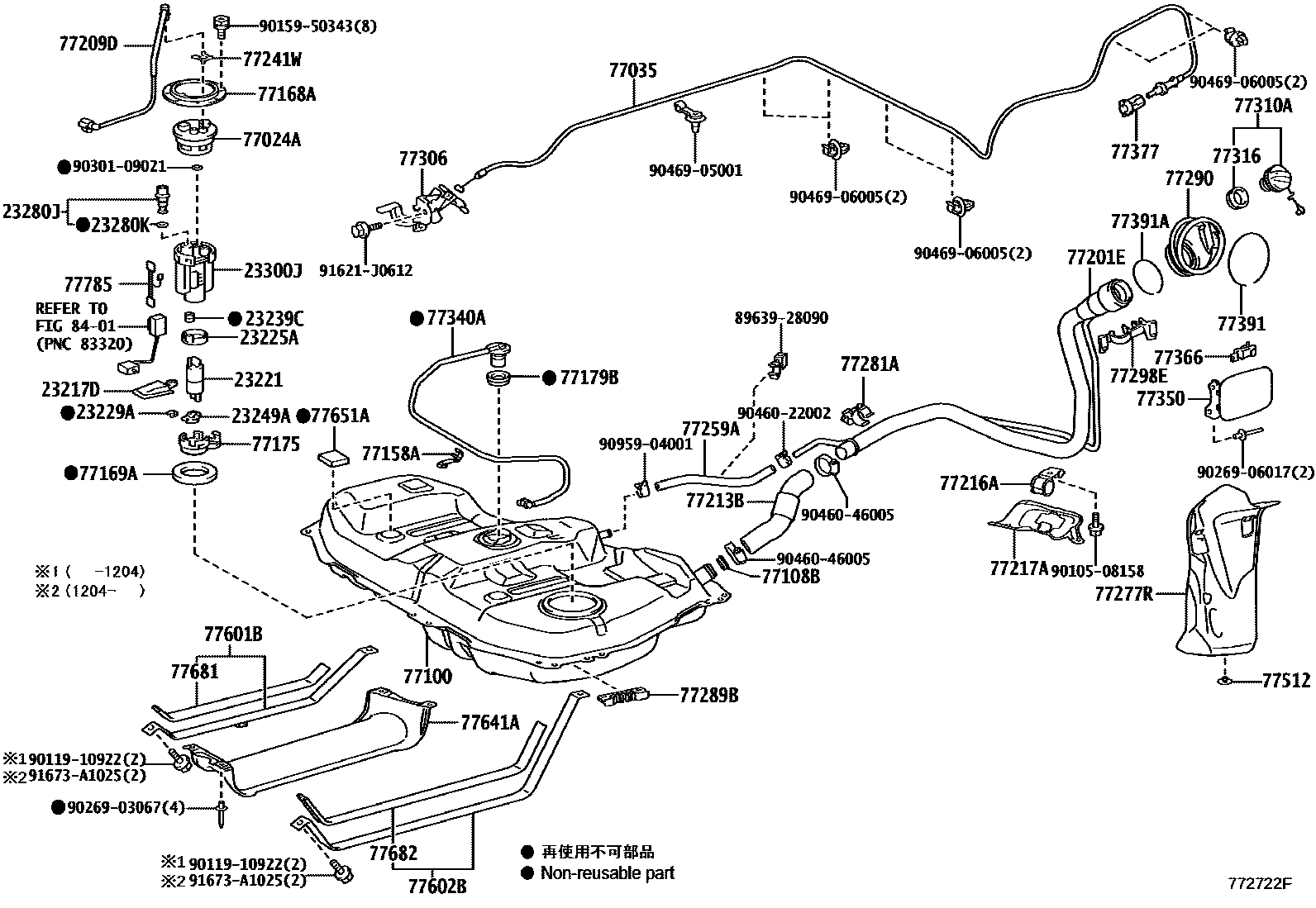

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE

23217DFILTER, FUEL PUMP

main23217-0D070i2ZRFAE,3ZRFAE..ZGE2#201204

main23217-28250i3ZRFE..ZGE21200909-201005

23221PUMP, FUEL

main23221-28290i2ZRFAE,3ZRFAE..ZGE2#201204

23225ASPACER, FUEL PUMP

main23225-21010i2ZRFAE,3ZRFAE..ZGE2#201204

23229ACLIP(FOR FUEL PUMP FILTER)

main23229-16010i3ZRFE..ZGE21200909-201005

23239CSEAL, FUEL PUMP FILTER

main23239-21010i3ZRFE..ZGE21200909-201005

23249ARUBBER, CUSHION(FOR FUEL PUMP)

main23249-74610i3ZRFE..ZGE21200909-201005

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-20060i2ZRFAE,3ZRFAE..ZGE2#200909-201204

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i3ZRFE..ZGE21200909-201005

23300JFILTER ASSY, FUEL

main23300-28040i3ZRFE..ZGE21200909-201005

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-68010iZGE21200909-201005

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-68020iZGE21200909-201005

77100TANK ASSY, FUEL

main77001-68031iZGE21200909-201005

77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK

main77108-12020iZGE21200909-201005

77158ASUPPORT, TANK SUCTION TUBE

main77158-68010iZGE2#201204

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52010iZGE21200909-201005

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iZGE21200909-201005

77175SUPPORT, FUEL SUCTION, NO.2

main77175-52020iZGE21200909-201005

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-33010iZGE21200909-201005

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-68030iZGE21200909-201005

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-68010iZGE21200909-201005

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-68010iZGE21200909-201005

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-68020iZGE21200909-201005

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-68010iZGE21200909-201005

77241WCLIP, TUBE JOINT

main77241-32060iZGE21200909-201005

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-68010iZGE21200909-201005

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-68011iZGE2#201204

77281ACLAMP, FUEL FILLER PIPE

main77281-68010iZGE21200909-201005

77289BCLAMP, FUEL TUBE, NO.3

main77289-68010iZGE21200909-201005

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-68020iZGE21200909-201005

77298ESUPPORT, FUEL TUBE PROTECTOR, NO.3

main77298-68041iZGE21200909-201005

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-13020iZGE21200909-201005

77310ACAP ASSY, FUEL TANK

main77300-52030iZGE21200909-201005

77316GASKET, FUEL TANK CAP

main77316-52040iZGE21200909-201005

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-68010iZGE21200909-201005

77350LID ASSY, FUEL FILLER OPENING

main77350-68020iZGE21200909-201005

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30070iZGE21200909-201005

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iZGE21200909-201005

77391RING, FUEL INLET BOX

main77391-42010iZGE21200909-201005

77391ARING, FUEL INLET BOX

main77391-12020iZGE21200909-201005

77512BRACKET, FUEL TANK, REAR

main90467-07201iZGE21200909-201005

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-68030iZGE21200909-201005

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-68010iZGE21200909-201005

77641APROTECTOR, FUEL TANK, NO.1

main77641-68010iZGE21200909-201005

77651ACUSHION, FUEL TANK, NO.1

main77651-20090×9iZGE21200909-201005

77681SEAT, FUEL TANK BAND, RH

main77616-68010iZGE21200909-201005

77682SEAT, FUEL TANK BAND, LH

main77616-68020iZGE21200909-201005

77785HARNESS, FUEL PUMP

main77785-32010iZGE21200909-201005

8401

8963928090WIRE, BRAKE CONTROL

main89639-28090

9010508158

main90105-08158

9011910922

main90119-10922

9015950343

main90159-50343

9026903067

main90269-03067

9026906017

main90269-06017

9030109021

main90301-09021

9046022002

main90460-22002

9046046005

main90460-46005

9046905001

main90469-05001

9046906005

main90469-06005

9095904001

main90959-04001

91621J0612

main91621-J0612

91673A1025

main91673-A1025

62 parts on this diagram · 2 diagrams in section
