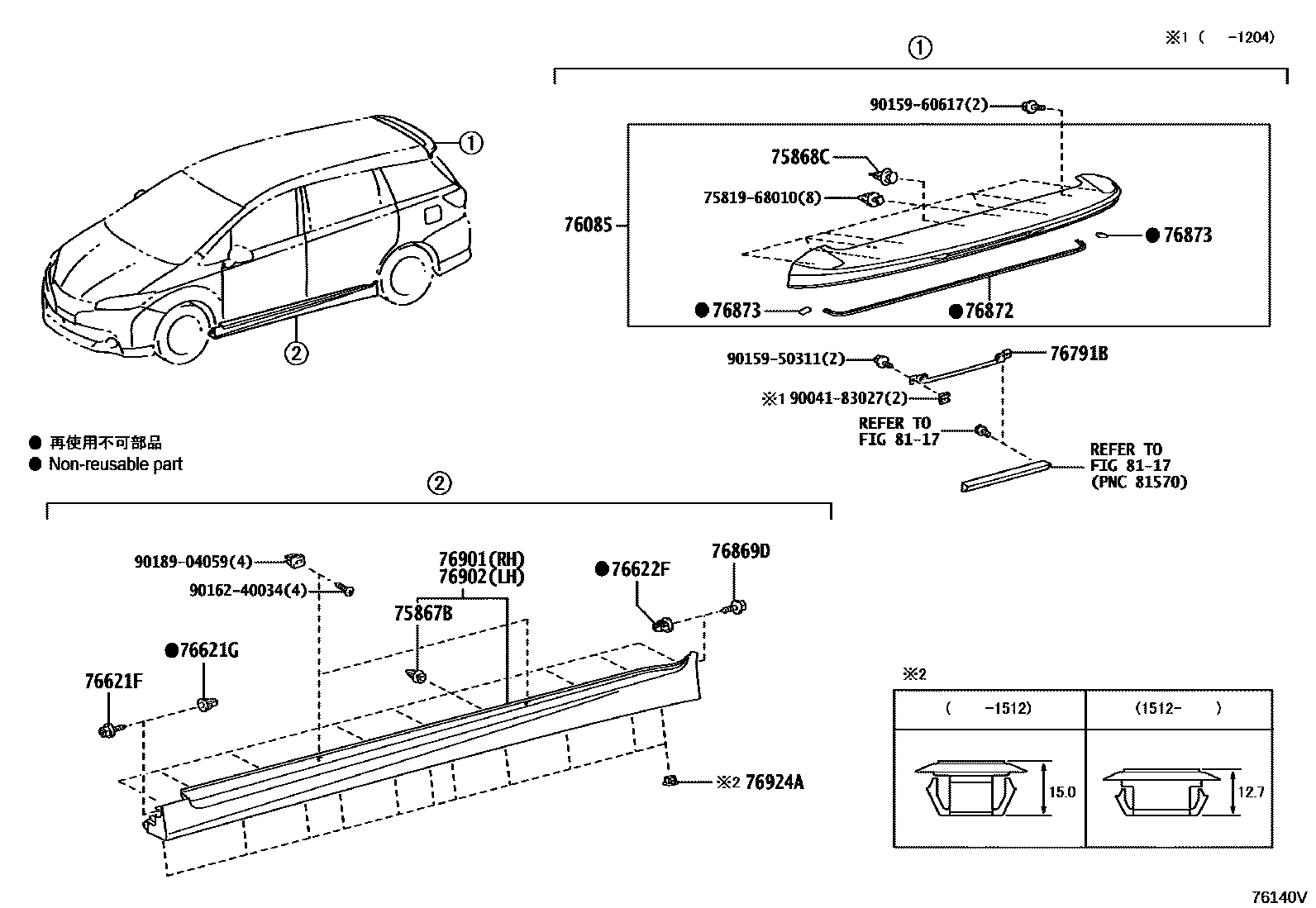

MUDGUARD & SPOILER
75867BCLIP, ROCKER PANEL MOULDING
75868CCLIP, REAR SPOILER, NO.2
76085SPOILER SUB-ASSY, REAR
PAINT REQ.
76621FSCREW, NO.1
76621GGROMMET, NO.1
76622FGROMMET, NO.2
76791BBRACKET, REAR SPOILER
76869DSCREW, NO.2
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76901MUDGUARD SUB-ASSY, SIDE, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G6
GRAY ME.,1G3
BLACK,202
RED M.M.,3R3
BLACKISH RED MC.,3R0
BRONZE M.M.,4T3
ORANGE ME.,4R8
BEIGE ME.,4T8
GRAYISH TEAL ME.,784
DK.BLUE MC.,8S6
SATIN BLUE M.M.,8V9
76902MUDGUARD SUB-ASSY, SIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G6
GRAY ME.,1G3
BLACK,202
RED M.M.,3R3
BLACKISH RED MC.,3R0
BRONZE M.M.,4T3
ORANGE ME.,4R8
BEIGE ME.,4T8
GRAYISH TEAL ME.,784
DK.BLUE MC.,8S6
SATIN BLUE M.M.,8V9
76924ARETAINER, SIDE MUDGUARD, NO.2
8117
7581968010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
9004183027
9015950311
9015960617
9016240034
9018904059
20 parts on this diagram · 1 diagram in section
