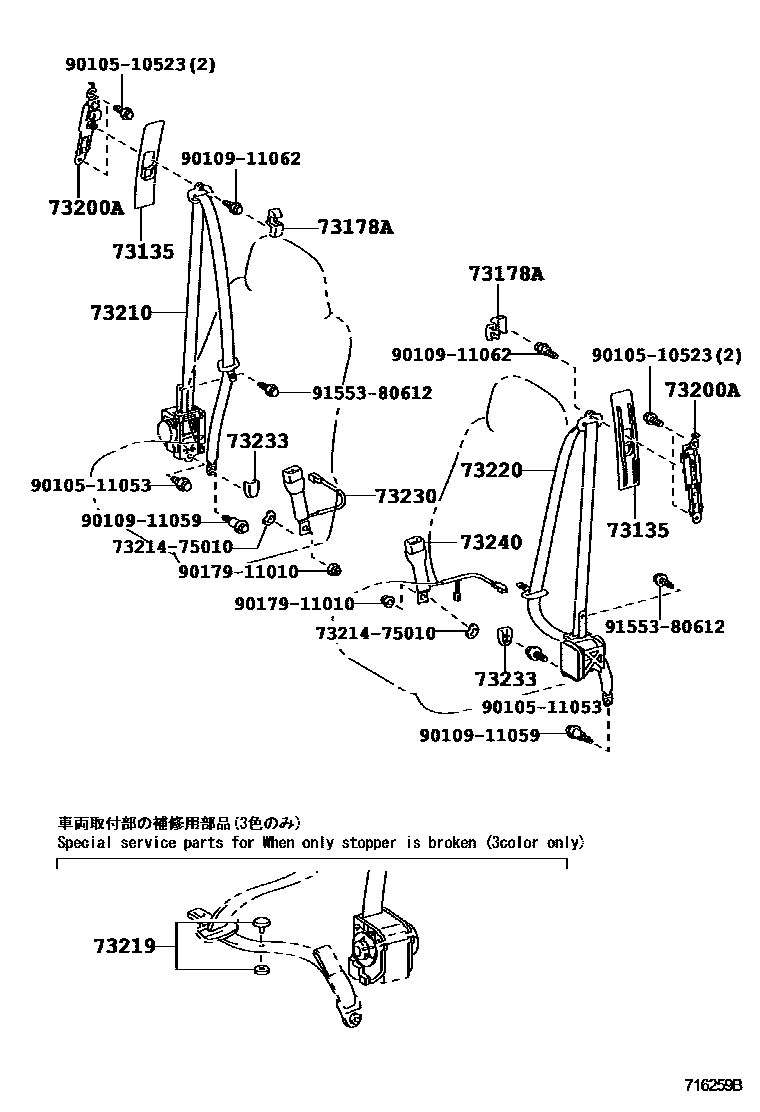

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0004 1 0005 1REAR NO.2 SEAT

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-52020-B0iZGE2#200909-201711

GRAY,TRIM1#

main73135-52020-E0iZGE20,21200909-201711

GREGE,TRIM4#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-52020-B0iZGE2#..18S,18X,20X,20Z200909-201711

GRAY,TRIM1#

main73178-52020-E1iZGE20,21200909-201711

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52050-B1iZGE2#200909-201711

GRAY,TRIM1#

main73200-52050-E0iZGE20,21200909-201711

GREGE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-68031-C0iZGE21..20X200909-201002

BLACK,TRIM1#,LAP ANCHOR = BLACK

main73210-68031-E1iZGE21200909-201002

GREGE,TRIM4#,LAP ANCHOR = BLACK

main73210-68032-C0iZGE2#..18S,18X,20X,20Z201002-201204

BLACK,TRIM1#,LAP ANCHOR = SILVER

sub73210-68040

main73210-68032-E1iZGE20,21201002-201204

GREGE,TRIM4#,LAP ANCHOR = SILVER

sub73210-68040

main73210-68040-C0iZGE2#201204-201711

BLACK,TRIM1#

main73210-68040-E0iZGE20201204-201711

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iZGE2#201006-201204

BLACK

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-68031-C0iZGE21..20X200909-201002

BLACK,TRIM1#,LAP ANCHOR = BLACK

main73220-68031-E1iZGE21200909-201002

GREGE,TRIM4#,LAP ANCHOR = BLACK

main73220-68032-C0iZGE2#..18S,18X,20X,20Z201002-201204

BLACK,TRIM1#,LAP ANCHOR = SILVER

sub73220-68040

main73220-68032-E1iZGE20,21201002-201204

GREGE,TRIM4#,LAP ANCHOR = SILVER

sub73220-68040

main73220-68040-C0iZGE2#201204-201711

BLACK,TRIM1#

main73220-68040-E0iZGE20201204-201711

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-68030-C0iZGE2#200909-201711

BLACK,TRIM1#

main73230-68030-E0iZGE20200909-201711

GREGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-B1iZGE20,21..18S,18X,20X200909-201204

DK.GRAY,TRIM1#,4#

sub73233-60020

sub73233-0C010

main73233-52010-B1iZGE22201006-201204

DK.GRAY,TRIM1#

sub73233-60020

sub73233-0C010

main73233-52010-E3iZGE21..20G200909-201204

GREGE,TRIM4#

sub73233-60020

sub73233-0C010

main73233-60020-C0iZGE22201204-201505

BLACK,TRIM1#

sub73233-60020

sub73233-35010

main73233-60020-C0iZGE20201204-201610

BLACK,TRIM1#,4#

sub73233-60020

sub73233-35010

main73233-60020-C1iZGE20..18X201610-201711

BLACK,TRIM1#

sub73233-60020

sub73233-35010

main73233-60020-C1iZGE20..18X201610-201711

BLACK,TRIM1#,4#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-68050-C0iZGE2#..18S,18X,20X,20Z200909-201711

BLACK,TRIM1#

main73230-68050-E0iZGE20,21200909-201711

GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911059

main90109-11059

9010911062

main90109-11062

9017911010

main90179-11010

9155380612

main91553-80612

16 parts on this diagram · 4 diagrams in section
