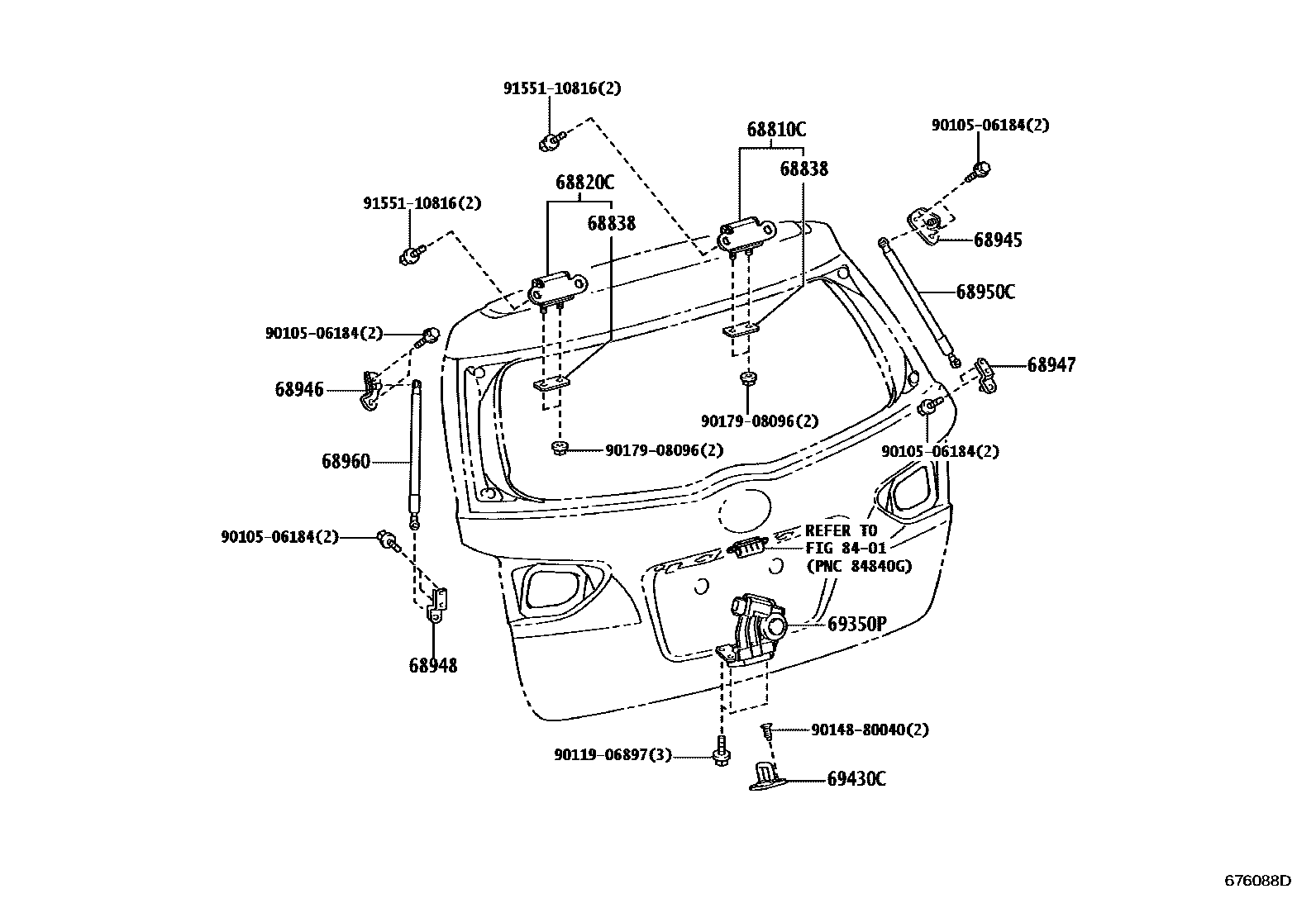

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iZGE21200909-201711

PAD T=1.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iZGE21200909-201204

PAD T=1.0

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010iZGE2#..CVFC200909-201204

T=2.0

main68838-44020iZGE21200909-201204

T=1.0

main68838-52020iZGE21200909-201204

T=1.6

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-68020iZGE2#200909-201204

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-68020iZGE2#..CVFC200909-201204

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-68020iZGE21200909-201204

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68947-68020iZGE21200909-201204

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W570iZGE21200909-201204

68960STAY ASSY, BACK DOOR, LH

main68960-0W560iZGE21200909-201204

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iZGE2#200909-201512

sub69350-28151

main69350-28151iZGE20201601-201711

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-28050iZGE21200909-201204

8401

9010506184

main90105-06184

9011906897

main90119-06897

9014880040

main90148-80040

9017908096

main90179-08096

9155110816

main91551-10816

17 parts on this diagram · 1 diagram in section
