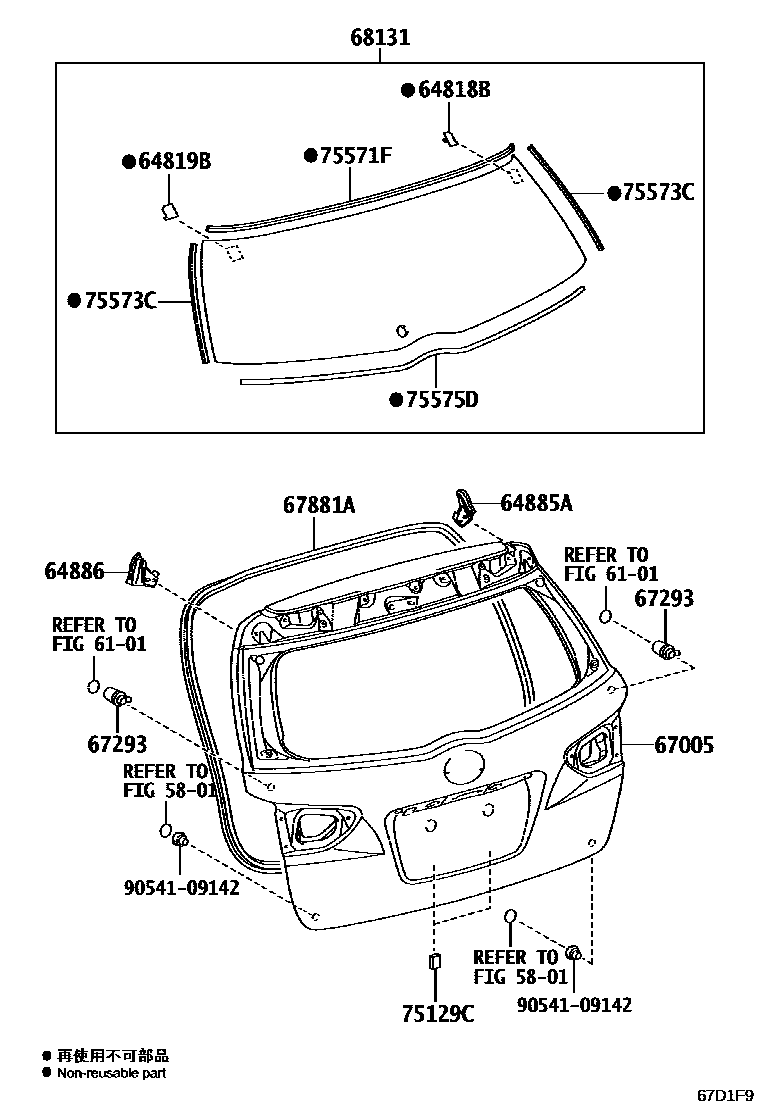

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5801

6101

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-68020iZGE2#200909-201204

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-68020iZGE2#200909-201204

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-68050iZGE21200909-201204

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-68050iZGE21200909-201204

67005PANEL SUB-ASSY, BACK DOOR

main67005-68040iZGE21200909-201204

main67005-68041iZGE2#201204

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-68010iZGE21200909-201204

67881AWEATHERSTRIP, BACK DOOR

main67881-68020iZGE21200909-200912

main67881-68030iZGE21201001-201204

68131GLASS, BACK DOOR

main68105-68070iZGE2#200909-201202

*UVCEHT,T=3.1,GREEN

sub68105-68071

main68105-68071iZGE2#201203-201204

*UVCEHT,T=3.1,GREEN

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iZGE21200909-201204

75571FMOULDIMG, BACK DOOR WINDOW

main75571-68020iZGE2#200909-201204

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-68020iZGE2#200909-201204

75575DMOULDING, BACK WINDOW, LOWER

main75575-68020iZGE2#200909-201202

sub75575-68030

main75575-68030iZGE2#201203-201204

9054109142

main90541-09142

15 parts on this diagram · 2 diagrams in section
