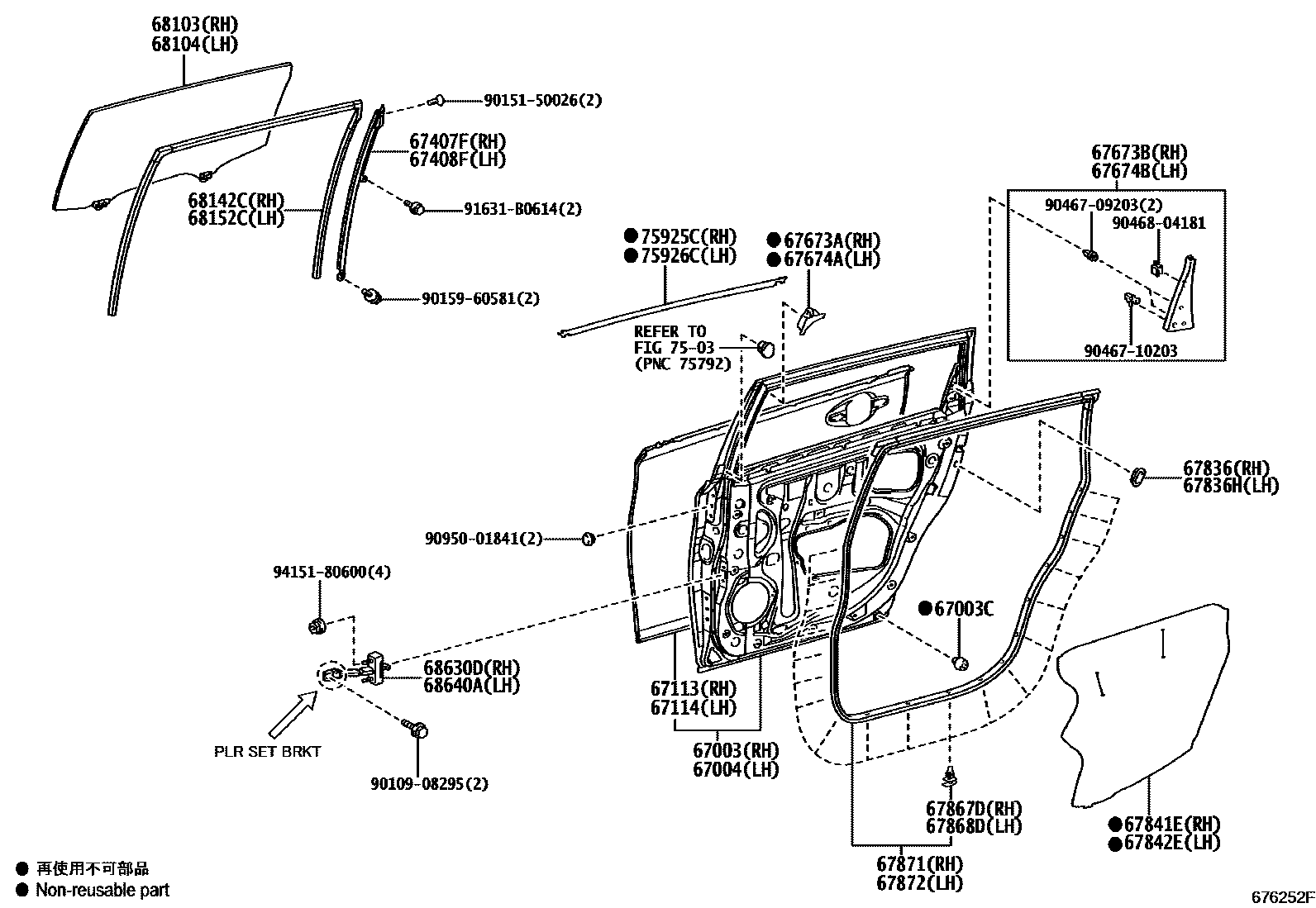

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67673AGARNISH, REAR DOOR FRAME, RH
67673BGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67674BGARNISH, REAR DOOR FRAME, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=3.5,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=3.5,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630DCHECK ASSY, REAR DOOR, RH
PLR SET BRKT:BLACK
PLR SET BRKT:SILVER
68640ACHECK ASSY, REAR DOOR, LH
PLR SET BRKT:BLACK
PLR SET BRKT:SILVER
7503
75925CTAPE, BLACK OUT, NO.3 RH
75926CTAPE, BLACK OUT, NO.3 LH
9010908295
main90109-08295
9015150026
main90151-50026
9015960581
main90159-60581
9046709203
main90467-09203
9046710203
main90467-10203
9046804181
main90468-04181
9095001841
main90950-01841
91631B0614
main91631-B0614
9415180600
main94151-80600
37 parts on this diagram · 2 diagrams in section
