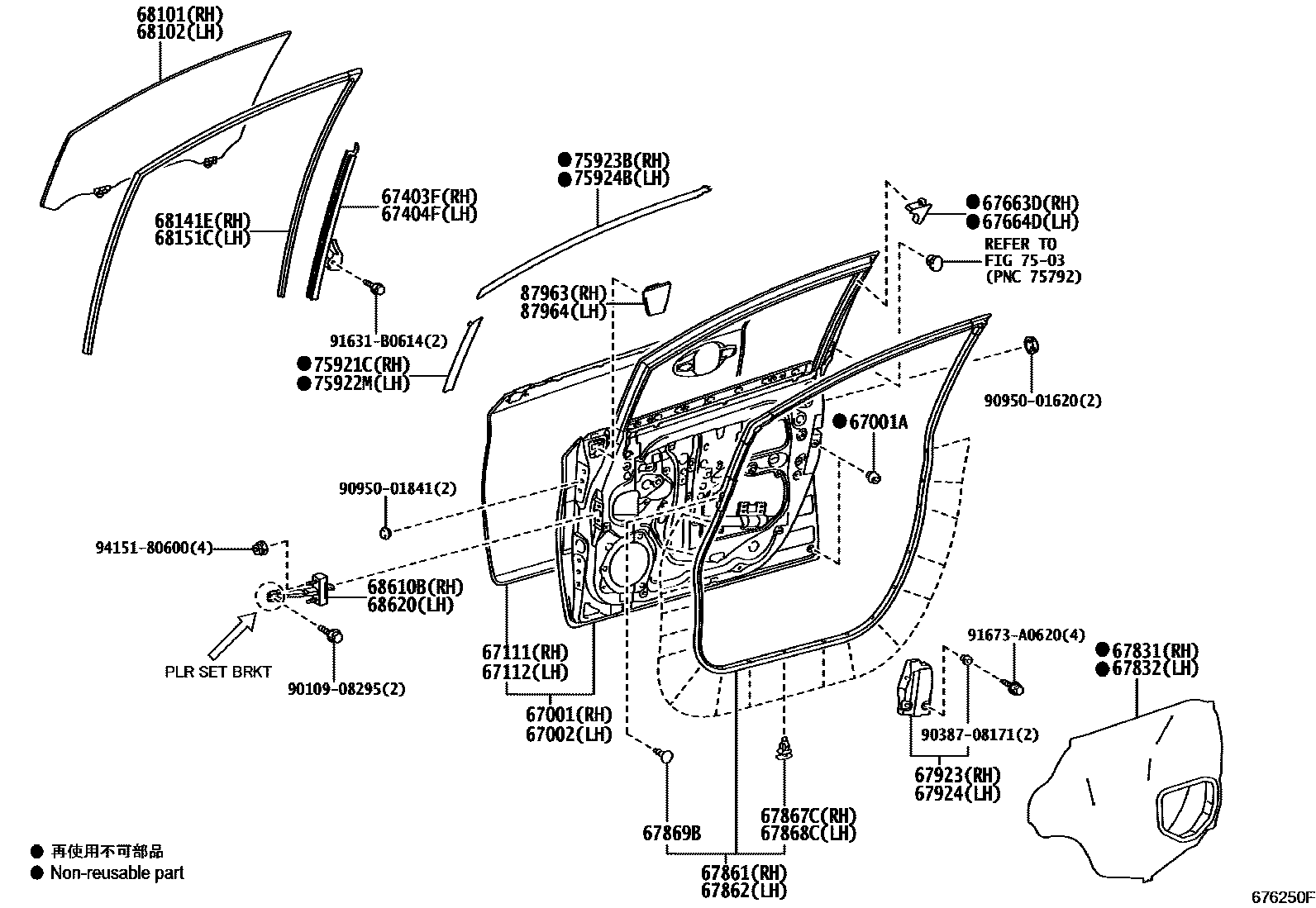

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-68030iZGE20,21..CVFC200909-201204

main67001-68040iZGE22201006-201505

67001ACUSHION, FRONT DOOR PANEL

main90541-09137iZGE2#..CVFC200909-201204

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-68030iZGE20200909-201204

main67002-68040iZGE22201006-201505

67111PANEL, FRONT DOOR, OUTER RH

main67111-68030iZGE20,21200909-201711

main67111-68040iZGE22201006-201505

67112PANEL, FRONT DOOR, OUTER LH

main67112-68030iZGE20200909-201711

main67112-68040iZGE22201006-201505

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-68020iZGE2#200909-201204

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-68020iZGE21200909-201204

67663DGARNISH, DOOR FRAME, RH

main67663-42020iZGE21200909-201204

67664DGARNISH, DOOR FRAME, LH

main67664-42020iZGE21200909-201204

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-68020iZGE21200909-201204

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-68020iZGE21200909-201204

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-68020iZGE2#200909-201204

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-68020iZGE2#200909-201204

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iZGE21200909-201204

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iZGE21200909-201204

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67868-30030iZGE21200909-201204

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-68030iZGE21200909-201204

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-68020iZGE2#..CVFC200909-201204

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-68030iZGE21..20X200909-201204

*UVCT,T=4.0,GREEN

main68101-68040iZGE2#..CVFC..(18S,20G,20Z)200909-201505

*UVCT,T=4.0,GREEN

main68101-68050iZGE20..18S201505

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-68030iZGE21..20X200909-201204

*UVCT,T=4.0,GREEN

main68102-68040iZGE2#..CVFC..(18S,20G,20Z)200909-201505

*UVCT,T=4.0,GREEN

main68102-68050iZGE20..18S201505

68141ERUN, FRONT DOOR GLASS, RH

main68141-68030iZGE2#200909-201204

68151CRUN, FRONT DOOR GLASS, LH

main68151-68030iZGE21200909-201204

68610BCHECK ASSY, FRONT DOOR, RH

main68610-68010iZGE21200909-201012

PLR SET BRKT:BLACK

main68610-68011iZGE2#201012-201204

PLR SET BRKT:SILVER

68620CHECK ASSY, FRONT DOOR, LH

main68620-68020iZGE21200909-201012

PLR SET BRKT:BLACK

main68620-68021iZGE2#201012-201204

PLR SET BRKT:SILVER

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-68010iZGE21200909-201204

75922MTAPE, BLACK OUT, NO.1 LH

main75922-68010iZGE21200909-201204

75923BTAPE, BLACK OUT, NO.2 RH

main75923-68010iZGE21200909-201204

75924BTAPE, BLACK OUT, NO.2 LH

main75924-68010iZGE21200909-201204

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-68010iZGE21200909-201204

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-68010iZGE21200909-201204

9010908295

main90109-08295

9038708171

main90387-08171

9095001620

main90950-01620

9095001841

main90950-01841

91631B0614

main91631-B0614

91673A0620

main91673-A0620

9415180600

main94151-80600

38 parts on this diagram · 2 diagrams in section
