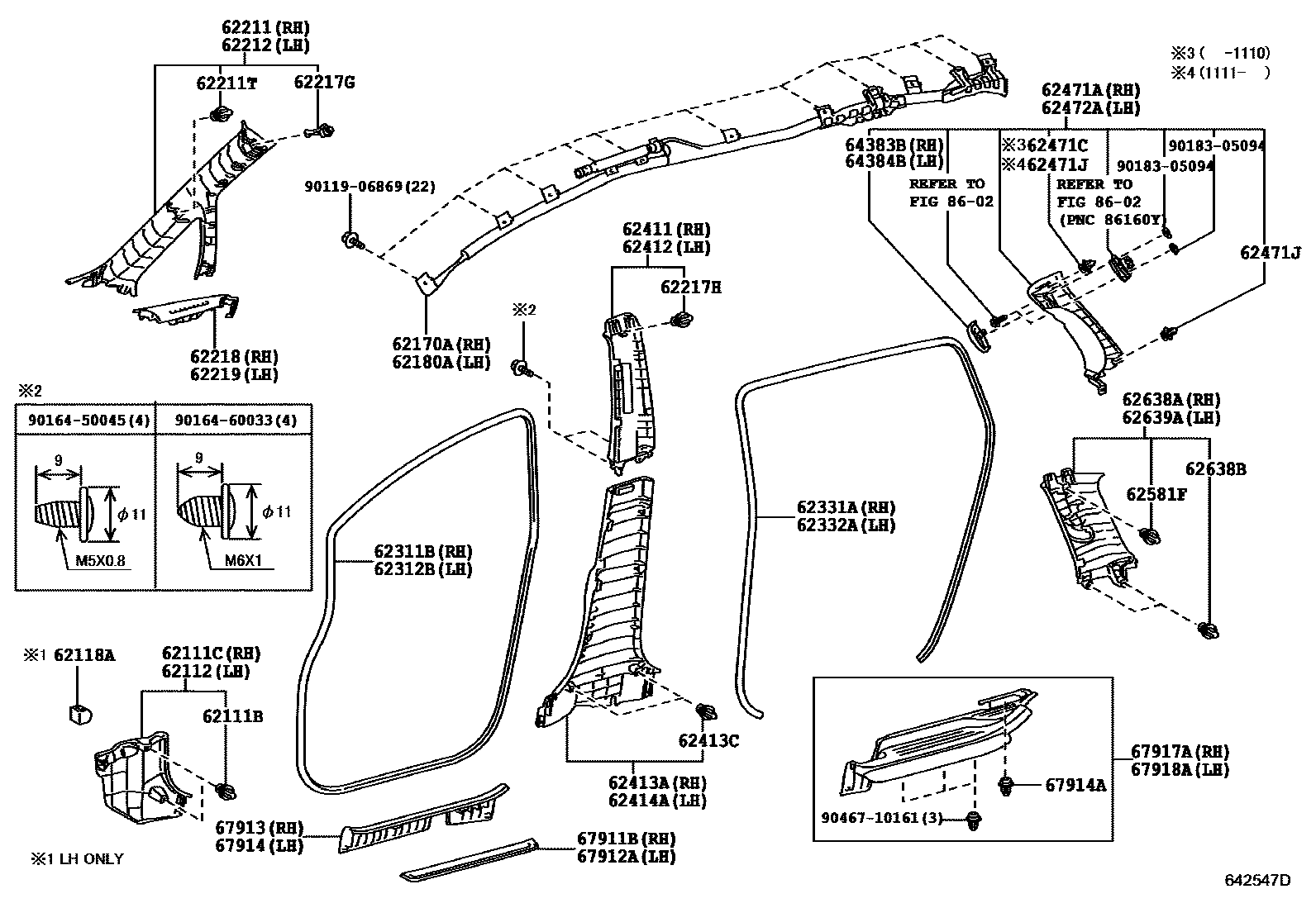

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iZGE2#..CVFC200909-201204

62111CBOARD, COWL SIDE TRIM, RH

main62111-68040-B0iZGE21..20G200909-201711

DK.GRAY,TRIM1#,4#

main62111-68040-B0iZGE20,21..18S,18X,20X200909-201204

DK.GRAY,TRIM4#

main62111-68040-B0iZGE22201006-201505

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-68040-B0iZGE21..20G200909-201711

DK.GRAY,TRIM1#,4#

main62112-68040-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

main62112-68040-B0iZGE22201006-201505

DK.GRAY,TRIM1#

62118ACAP, COWL SIDE TRIM

main62118-68010iZGE21200909-201204

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-68020iZGE21200909-201204

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-68020iZGE21200909-201204

62211GARNISH, FRONT PILLAR, RH

main62210-68030-B0iZGE2#200909-201711

GRAY,TRIM1#

main62210-68030-E0iZGE20200909-201711

GREGE,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iZGE21200909-201204

62212GARNISH, FRONT PILLAR, LH

main62220-68030-B0iZGE2#..18S,18X,20X,20Z200909-201711

GRAY,TRIM1#

main62220-68030-E0iZGE20200909-201711

GREGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main90950-08004iZGE2#200909-201204

62217HCLIP, CENTER PILLER GARNISH

main90467-10167iZGE21200909-201204

62218PIECE, FRONT PILLAR GARNISH CORNER, RH

main62218-68020-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

main62218-68020-B0iZGE21..20G200909-201711

DK.GRAY,TRIM1#,4#

main62218-68020-B0iZGE22201006-201505

DK.GRAY,TRIM1#

62219PIECE, FRONT PILLAR GARNISH CORNER, LH

main62219-68020-B0iZGE21..20G200909-201711

DK.GRAY,TRIM1#,4#

main62219-68020-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

main62219-68020-B0iZGE22201006-201505

DK.GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-68020-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

sub62311-68030

main62311-68020-B0iZGE21..20G200909-201410

DK.GRAY,TRIM1#,4#

sub62311-68030

main62311-68020-B0iZGE22201006-201410

DK.GRAY,TRIM1#

sub62311-68030

main62311-68030iZGE2#201410

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-68020-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

sub62312-68030

main62312-68020-B0iZGE21..20G200909-201410

DK.GRAY,TRIM1#,4#

sub62312-68030

main62312-68020-B0iZGE22201006-201410

DK.GRAY,TRIM1#

sub62312-68030

main62312-68030iZGE2#201410

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-68020-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

sub62331-68030

main62331-68020-B0iZGE21..20G200909-201410

DK.GRAY,TRIM1#,4#

sub62331-68030

main62331-68020-B0iZGE22201006-201410

DK.GRAY,TRIM1#

sub62331-68030

main62331-68030iZGE2#201410

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-68020-B0iZGE20200909-201410

DK.GRAY,TRIM1#,4#

sub62332-68030

main62332-68020-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

sub62332-68030

main62332-68020-B0iZGE22201006-201410

DK.GRAY,TRIM1#

sub62332-68030

main62332-68030iZGE2#201410

62411GARNISH, CENTER PILLAR, RH

main62410-68030-B0iZGE2#200909-201711

GRAY,TRIM1#

main62410-68030-E0iZGE20,21200909-201711

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-68030-B0iZGE2#..18S,18X,20X,20Z200909-201711

GRAY,TRIM1#

main62420-68030-E0iZGE20,21200909-201711

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-68020-B0iZGE22201006-201505

DK.GRAY,TRIM1#

main62413-68020-B0iZGE20200909-201711

DK.GRAY,TRIM1#,4#

main62413-68020-B0iZGE20,21..18S,18X,20X200909-201204

DK.GRAY,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iZGE21200909-201204

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-68020-B0iZGE20,21..18S,18X,20X200909-201204

DK.GRAY,TRIM4#

main62414-68020-B0iZGE21..20G200909-201711

DK.GRAY,TRIM1#,4#

main62414-68020-B0iZGE22201006-201505

DK.GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-68020-B0iZGE2#..18S,18X,20X,20Z200909-201204

GRAY,TRIM1#

main62471-68020-E0iZGE20,21200909-201204

GREGE,TRIM4#

main62471-68030-B0iZGE2#201204-201711

GRAY,TRIM1#

main62471-68030-E0iZGE20201204-201711

GREGE,TRIM4#

62471CCLIP(FOR REAR PILLAR COVER)

main90467-10188iZGE21200909-201111

62471JCLIP (FOR ROOF SIDE GARNISH)

main63395-12150iZGE2#201111-201204

main90467-10167iZGE2#..CVFC200909-201110

62472AGARNISH, ROOF SIDE, INNER LH

main62472-68020-B0iZGE2#..18S,18X,20X,20Z200909-201204

GRAY,TRIM1#

main62472-68020-E0iZGE20,21200909-201204

GREGE,TRIM4#

main62472-68030-B0iZGE2#201204-201711

GRAY,TRIM1#

main62472-68030-E0iZGE20201204-201711

GREGE,TRIM4#

62581FCLIP (FOR QUARTER PILLAR GARNISH)

main63395-12150iZGE2#201111-201204

main90467-10167iZGE21200909-201110

62638AGARNISH, QUARTER PILLAR, RH

main62638-68040-B0iZGE2#200909-201711

GRAY,TRIM1#

main62638-68040-E0iZGE20200909-201711

GREGE,TRIM4#

62638BCLIP

main90467-10161iZGE21200909-201204

62639AGARNISH, QUARTER PILLAR, LH

main62639-68040-B0iZGE2#..18S,18X,20X,20Z200909-201711

GRAY,TRIM1#

main62639-68040-E0iZGE20200909-201711

GREGE,TRIM4#

64383BGRILLE, REAR SPEAKER, RH

main64383-68010-B0iZGE2#..18S,18X,20X,20Z200909-201204

GRAY,TRIM1#

main64383-68010-E0iZGE20,21200909-201204

GREGE,TRIM4#

64384BGRILLE, REAR SPEAKER, LH

main64384-68010-B0iZGE2#..18S,18X,20X,20Z200909-201204

GRAY,TRIM1#

main64384-68010-E0iZGE20,21200909-201204

GREGE,TRIM4#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-68020-B0iZGE21..20G200909-201711

DK.GRAY,TRIM1#,4#

main67911-68020-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

main67911-68020-B0iZGE22201006-201505

DK.GRAY,TRIM1#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-68020-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

main67912-68020-B0iZGE21..20G200909-201711

DK.GRAY,TRIM1#,4#

main67912-68020-B0iZGE22201006-201505

DK.GRAY,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-68020-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

main67913-68020-B0iZGE21..20G200909-201711

DK.GRAY,TRIM1#,4#

main67913-68020-B0iZGE22201006-201505

DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-68020-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

main67914-68020-B0iZGE21..20G200909-201711

DK.GRAY,TRIM1#,4#

main67914-68020-B0iZGE22201006-201505

DK.GRAY,TRIM1#

67914ACLIP(FOR SCUFF PLATE)

main75867-33030iZGE2#201403

main90467-10161iZGE2#200909-201403

67917APLATE, REAR DOOR SCUFF, RH

main67917-68020-B0iZGE20,21..18S,18X,20X200909-201204

DK.GRAY,TRIM4#

main67917-68020-B0iZGE20,21..18S,18X,20X200909-201711

DK.GRAY,TRIM1#,4#

main67917-68020-B0iZGE22201006-201505

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-68020-B0iZGE21..20G200909-201204

DK.GRAY,TRIM4#

main67918-68020-B0iZGE21..20G200909-201711

DK.GRAY,TRIM1#,4#

main67918-68020-B0iZGE22201006-201505

DK.GRAY,TRIM1#

8602

9011906869

main90119-06869

9016450045

main90164-50045

9016460033

main90164-60033

9018305094

main90183-05094

9046710161

main90467-10161

45 parts on this diagram · 1 diagram in section
