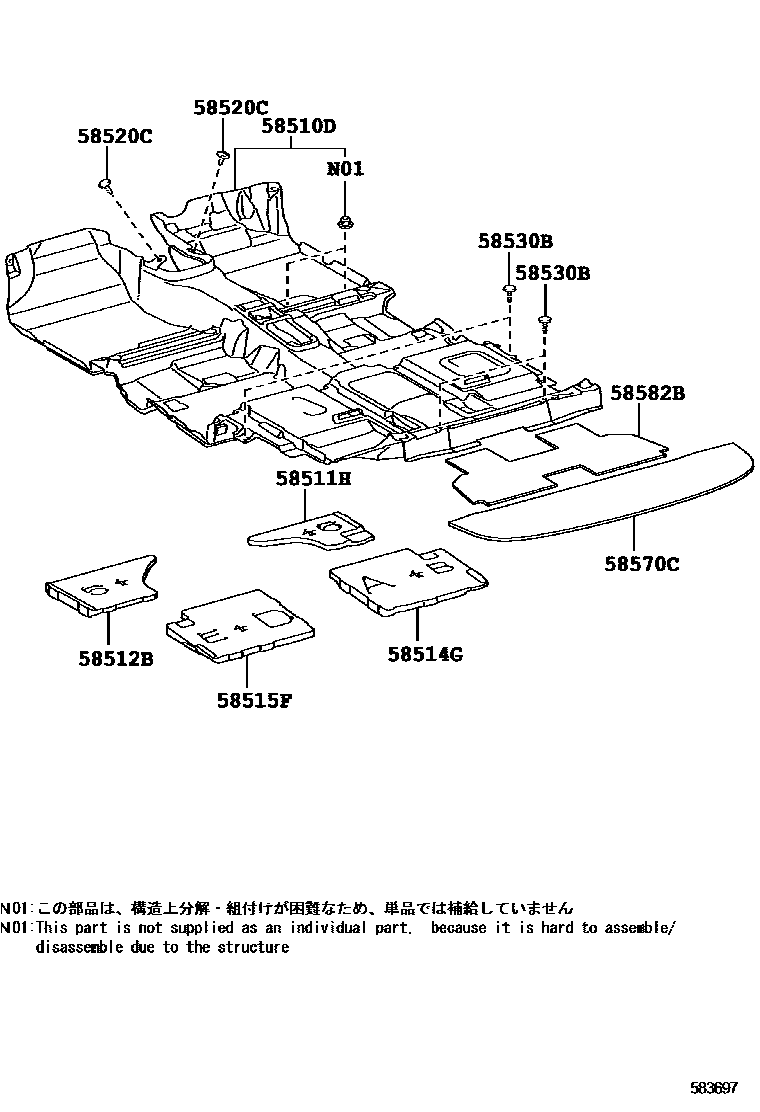

MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-68070-B1iZGE22201006-201204

GRAY,TRIM1#

main58510-68070-B1iZGE20,21..18S,18X,20X200909-201204

GRAY,TRIM1#,4#

main58510-68070-E1iZGE21..20G200909-201204

GREGE,TRIM4#

main58510-68110-B0iZGE22201204-201408

GRAY,TRIM1#,4#

main58510-68110-B0iZGE22201204-201408

GRAY,TRIM1#

main58510-68111-B0iZGE22201408-201505

GRAY,TRIM1#

main58510-68111-B0iZGE20201408-201711

GRAY,TRIM1#,4#

58511HMAT, FLOOR, FRONT RH

main58511-68030iZGE21200909-201304

sub58511-68031

main58511-68031iZGE2#201305

58512BMAT, FLOOR, FRONT LH

main58512-68020iZGE21200909-201304

sub58512-68021

main58512-68021iZGE2#201305

58514GMAT, FLOOR, REAR RH

main58514-68050iZGE2#..CVFC200909-201304

sub58514-68051

main58514-68051iZGE2#201305

58515FMAT, FLOOR, REAR LH

main58515-68050iZGE2#..CVFC200909-201304

sub58515-68051

main58515-68051iZGE2#201305

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09050iZGE2#200909-201204

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iZGE22201006-201505

DK.GRAY,TRIM1#

sub90467-07049

main90467-07049-B7iZGE20,21..18S,18X,20X200909-201711

DK.GRAY,TRIM1#,4#

sub90467-07049

main90467-07049-E5iZGE21..20G200909-201204

GREGE,TRIM4#

sub90467-07049

58570CCARPET ASSY, REAR FLOOR

main58571-68020iZGE21200909-201204

58582BCARPET, 3RD SEAT FLOOR, NO.1

main58582-68020iZGE21200909-201204

9 parts on this diagram · 2 diagrams in section
