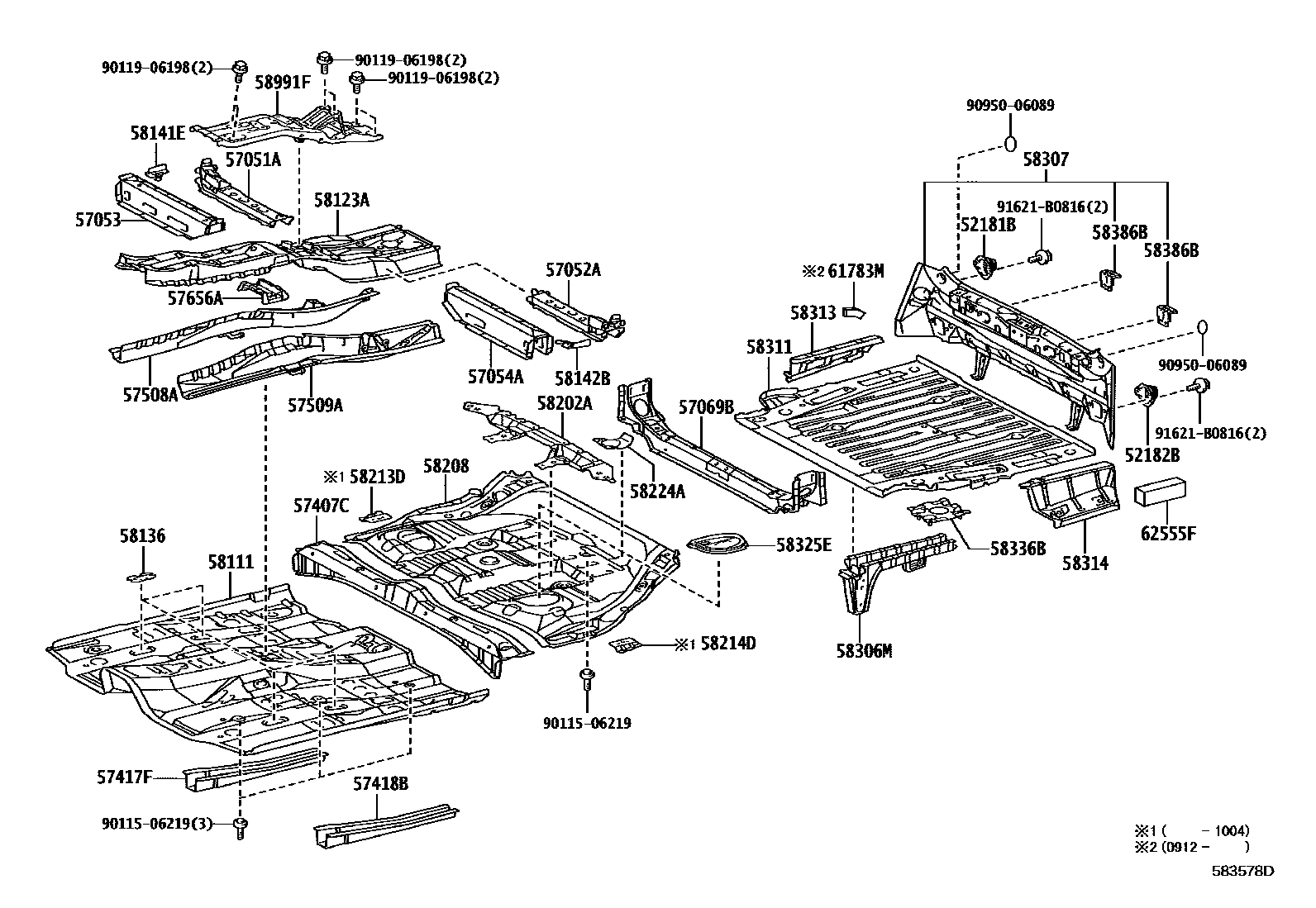

FLOOR PAN & LOWER BACK PANEL

52181BARM, REAR BUMPER, RH

main52181-68010iZGE2#201204

52182BARM, REAR BUMPER LH

main52181-68010iZGE21200909-201005

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-68030iZGE21200909-201005

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-68030iZGE2#201204

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-68010iZGE2#..CVFC200909-201204

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-68010iZGE2#201204

57069BMEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER

main57069-68010iZGE21200909-201005

main57069-68020iZGE22201006-201204

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-68010iZGE2#201204

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-13020iZGE21200909-201005

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-13020iZGE21200909-201005

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-68010iZGE21200909-201005

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-68010iZGE21200909-201005

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-68010iZGE21200909-201005

58111PAN, FRONT FLOOR

main58111-68012iZGE21200909-201005

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-68030iZGE21200909-201005

58136COVER, FRONT FLOOR HOLE

main58136-33010×4iZGE21200909-201005

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-13040iZGE2#..CVFC200909-201204

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-13020iZGE2#..CVFC200909-201204

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-68010iZGE21200909-201005

58208PAN, CENTER FLOOR

main58211-68020iZGE21200909-201005

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-68010iZGE21200909-201004

58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH

main58214-68010iZGE21200909-201004

58224AREINFORCEMENT, FLOOR SIDE PANEL, LH

main58224-68010iZGE2#..CVFC200909-201204

58306MPANEL SUB-ASSY, REAR FLOOR SIDE

main58306-68010iZGE21200909-201005

main58306-68020iZGE22201006-201204

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-68030iZGE21200909-201005

main58307-68031iZGE2#201301

58311PAN, REAR FLOOR

main58311-68010iZGE21200909-201005

main58311-68011iZGE2#201111-201204

58313PANEL, REAR FLOOR SIDE, RH

main58313-68010iZGE21200909-201005

58314PANEL, REAR FLOOR SIDE, LH

main58314-68010iZGE21200909-201005

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-68011iZGE21200909-201005

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-68010iZGE21200909-201005

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-74010×2iZGE21200909-201005

58991FBRACKET, CONSOLE BOX MOUNTING, FRONT

main58015-68020iZGE21200909-201005

main58015-68021iZGE2#201107-201204

61783MPAD, REAR WHEEL OPENING EXTENSION, RH

main61783-42170iZGE2#200912-201204

62555FPAD, PILLAR, NO.5

main62555-68020iZGE2#200909-201204

9011506219

main90115-06219

9011906198

main90119-06198

9095006089

main90950-06089

91621B0816

main91621-B0816

38 parts on this diagram · 1 diagram in section
