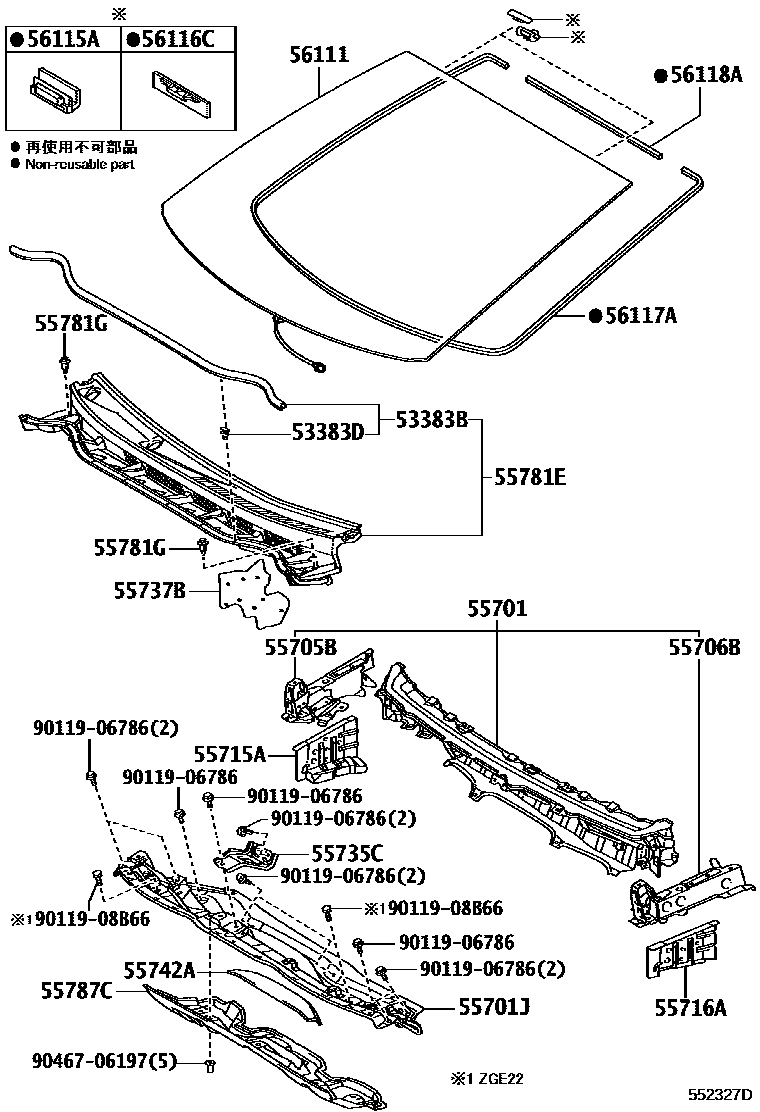

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-68020iZGE21200909-201005

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×12iZGE21200909-201005

55701PANEL SUB-ASSY, COWL

main55700-68020iZGE21200909-201005

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-68020iZGE21200909-201005

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-68020iZGE21200909-201005

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-68020iZGE21200909-201005

55715ABRACE, COWL TOP TO APRON, RH

main55715-68020iZGE21200909-201005

55716ABRACE, COWL TOP TO APRON, LH

main55716-68020iZGE21200909-201005

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-68020iZGE21200909-201005

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-68020iZGE21200909-201005

55742ASHEET, COWL TOP INSULATOR

main55742-68020iZGE21200909-201005

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-68030iZGE2#..CVFC200909-201204

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2iZGE2#200909-201204

BLACK

sub90467-07041

sub90467-A0016

main90467-07076-C7×2iZGE20201703-201711

BLACK

sub90467-07041

sub90467-A0016

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-68020iZGE21200909-201005

56111GLASS, WINDSHIELD

main56101-68050iZGE20..18X201204

*LAM,T=4.76,GREEN

main56101-68060iZGE2#..CVFC..(18S,20G,20Z)200909-201204

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iZGE21200909-201005

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iZGE21200909-201005

56117ADAM, WINDOW GLASS ADHESIVE

main56117-68020iZGE21200909-201005

L=3326

sub56117-64010

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-68020iZGE21200909-201005

L=601

sub56117-74010

9011906786

main90119-06786

9011908B66

main90119-08B66

9046706197

main90467-06197

22 parts on this diagram · 1 diagram in section
