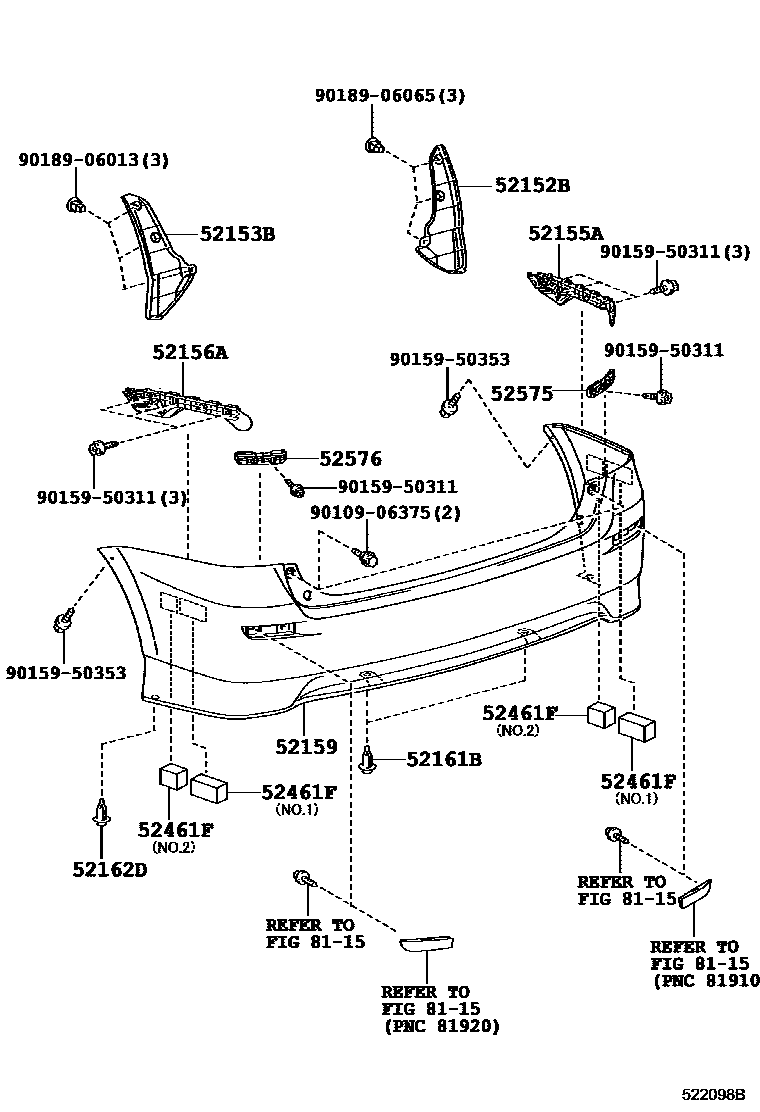

REAR BUMPER & BUMPER STAY
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
sub52161-0K040
52162DPIECE, REAR BUMPER
sub52161-0K040
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
8115
9010906375
main90109-06375
9015950311
main90159-50311
9015950353
main90159-50353
9018906013
main90189-06013
9018906065
main90189-06065
16 parts on this diagram · 2 diagrams in section
