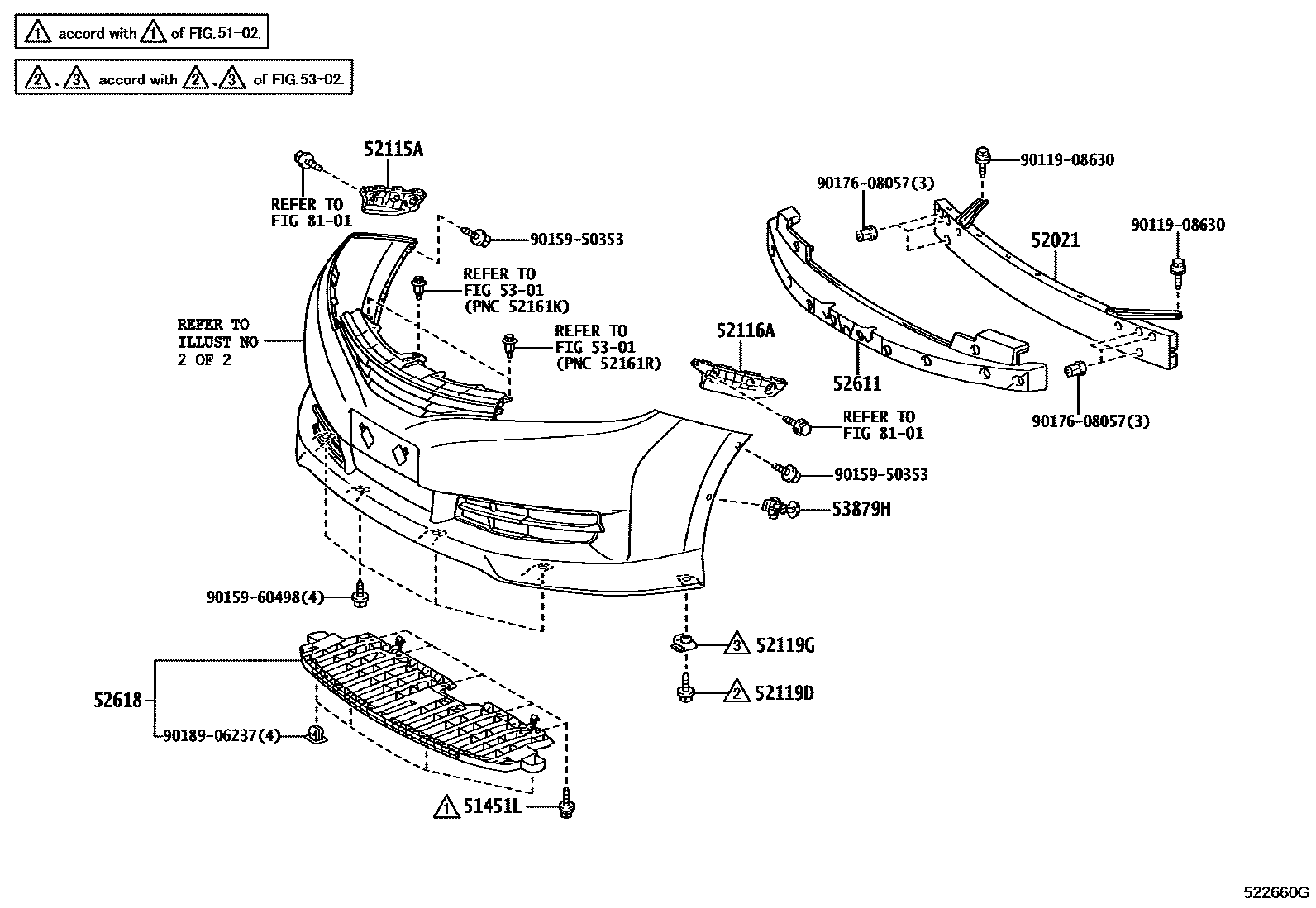

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

51451LBOLT, NO.1

main90119-06818iZGE2#200909-201711

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-68020iZGE21200909-201204

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-68030iZGE21200909-201210

sub52115-68031

main52115-68031iZGE20..18X201211-201711

main52115-68040iZGE2#..18S,20Z201006-201210

sub52115-68041

main52115-68041iZGE2#..18S,20Z201211-201711

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-68030iZGE20..18X200909-201210

sub52116-68031

main52116-68031iZGE20..18X201211-201711

main52116-68040iZGE2#..18S,20Z201006-201210

sub52116-68041

main52116-68041iZGE2#..18S,20Z201211-201711

52119DSCREW, NO.1

main90159-60215iZGE2#200909-201711

52119GCLIP, NO.1

main90467-05114iZGE2#200909-201711

52611ABSORBER, FRONT BUMPER ENERGY

main52611-68030iZGE2#..CVFC200909-201711

52618ABSORBER, FRONT BUMPER, LOWER

main52618-68010iZGE21200909-201711

5301

53879HRETAINER, FRONT FENDER LINER

main53879-28010iZGE21200909-201711

8101

9011908630

main90119-08630

9015950353

main90159-50353

9015960498

main90159-60498

9017608057

main90176-08057

9018906237

main90189-06237

16 parts on this diagram · 10 diagrams in section
