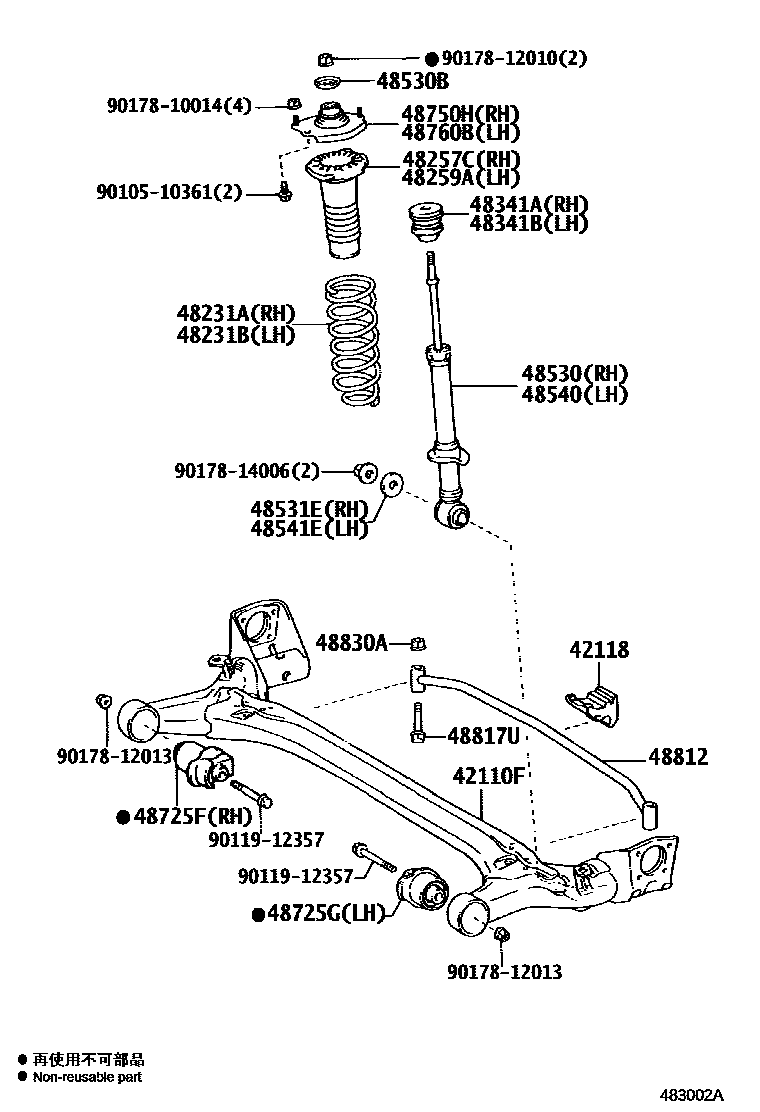

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42101-68030iZGE20..18X201006-201204

main42101-68040supersedes 42101-68030iZGE20..18S201204

SINGAPORE SPEC

42118DAMPER, REAR AXLE BEAM

main42118-68020iZGE21200909-201005

48231ASPRING, COIL, REAR RH

main48231-68020iZGE22201006-201204

main48231-68060iZGE21200909-201005

48231BSPRING, COIL, REAR LH

main48231-68020iZGE22201006-201204

main48231-68060iZGE20,21..CVFC200909-201204

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-68011iZGE20,21..CVFC200909-201204

main48257-68020iZGE22201006-201204

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-68011iZGE20,21..CVFC200909-201204

main48257-68020iZGE22201204-201505

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-32100iZGE2#201204

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-32100iZGE21200909-201005

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-68060iZGE21200909-201004

MARK 48530-68060

main48530-68070iZGE22201006-201204

MARK 48530-68070

main48530-68090iZGE21201004-201005

MARK 48530-68090

main48530-68100iZGE20201204

MARK 48530-68100

main48530-68110iZGE22201204-201505

MARK 48530-68110

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iZGE2#..CVFC200909-201204

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90201-14034iZGE21200909-201005

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-68060iZGE21200909-201004

MARK 48530-68060

main48530-68070iZGE22201006-201204

MARK 48530-68070

main48530-68090iZGE21201004-201005

MARK 48530-68090

main48530-68100iZGE20201204

MARK 48530-68100

main48530-68110iZGE22201204-201505

MARK 48530-68110

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90201-14034iZGE21200909-201005

48725BUSH, LOWER CONTROL ARM

main48725-32250×2iZGE22201006-201204

48725FBUSH, REAR AXLE CARRIER, RH

main48725-12640iZGE21200909-201005

48725GBUSH, REAR AXLE CARRIER, LH

main48725-12640iZGE21200909-201005

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-68010iZGE21200909-201005

main48750-68020iZGE22201204-201505

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-68020iZGE22201006-201204

main48760-68010iZGE20201204

48812BAR, STABILIZER, REAR

main48812-68011iZGE22201006-201204

main48812-68040iZGE21200909-201005

48817UBOLT(FOR REAR STABILIZER)

main90105-16085×2iZGE20201204

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10183×4iZGE22201006-201204

main94151-21641×2iZGE20201204

9010510361

main90105-10361

9011912357

main90119-12357

9017810014

main90178-10014

9017812010

main90178-12010

9017812013

main90178-12013

9017814006

main90178-14006

27 parts on this diagram · 2 diagrams in section
